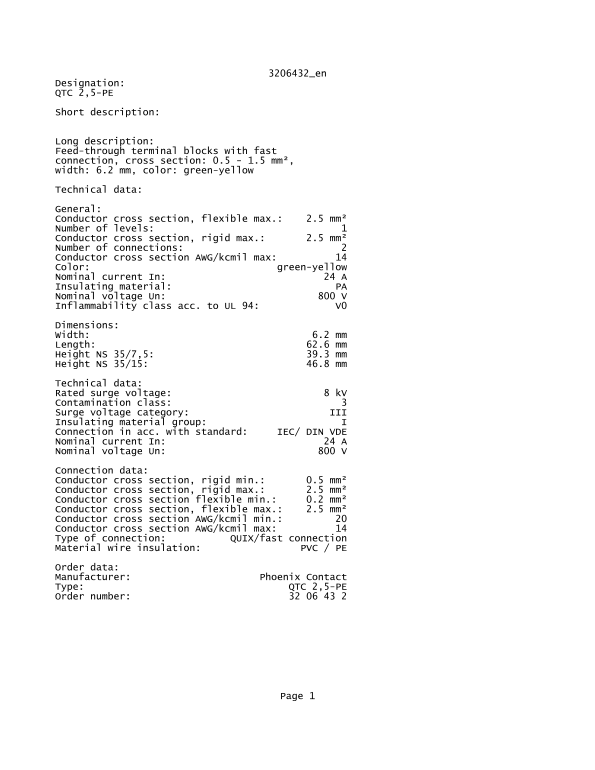

Page 1 Text Content
3206432_en
Designation: QTC 2,5-PE
Short description:
Long description: Feed-through terminal blocks with fast connection, cross section: 0.5 - 1.5 mm², width: 6.2 mm, color: green-yellow
Technical data:
General: Conductor cross section, flexible max.: 2.5 mm² Number of levels: 1 Conductor cross section, rigid max.: 2.5 mm² Number of connections: 2 Conductor cross section AWG/kcmil max: 14 Color: green-yellow Nominal current In: 24 A Insulating material: PA Nominal voltage Un: 800 V Inflammability class acc. to UL 94: V0
Dimensions: Width: 6.2 mm Length: 62.6 mm Height NS 35/7,5: 39.3 mm Height NS 35/15: 46.8 mm
Technical data: Rated surge voltage: 8 k V Contamination class: 3 Surge voltage category: III Insulating material group: I Connection in acc. with standard: IEC/ DIN VDE Nominal current In: 24 A Nominal voltage Un: 800 V
Connection data: Conductor cross section, rigid min.: 0.5 mm² Conductor cross section, rigid max.: 2.5 mm² Conductor cross section flexible min.: 0.2 mm² Conductor cross section, flexible max.: 2.5 mm² Conductor cross section AWG/kcmil min.: 20 Conductor cross section AWG/kcmil max: 14 Type of connection: QUIX/fast connection Material wire insulation: PVC / PE
Order data: Manufacturer: Phoenix Contact Type: QTC 2,5-PE Order number: 32 06 43 2
