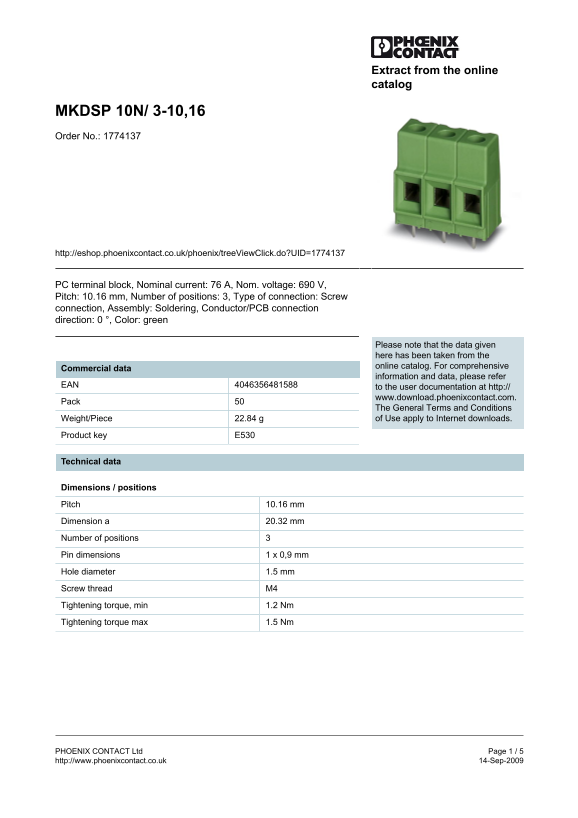

MKDSP 10N/ 3-10,16 Order No.: 1774137
http://eshop.phoenixcontact.co.uk/phoenix/tree View Click.do?UID=1774137
PC terminal block, Nominal current: 76 A, Nom. voltage: 690 V, Pitch: 10.16 mm, Number of positions: 3, Type of connection: Screw connection, Assembly: Soldering, Conductor/PCB connection direction: 0 °, Color: green
Please note that the data given here has been taken from the online catalog. For comprehensive
Commercial data
information and data, please refer
EAN to the user documentation at http://
www.download.phoenixcontact.com.
The General Terms and Conditions Weight/Piece 22.84 g of Use apply to Internet downloads.
Product key E530
Technical data
Dimensions / positions Pitch 10.16 mm Dimension a 20.32 mm Number of positions Pin dimensions 1 x 0,9 mm Hole diameter 1.5 mm Screw thread M4 Tightening torque, min 1.2 Nm Tightening torque max 1.5 Nm
