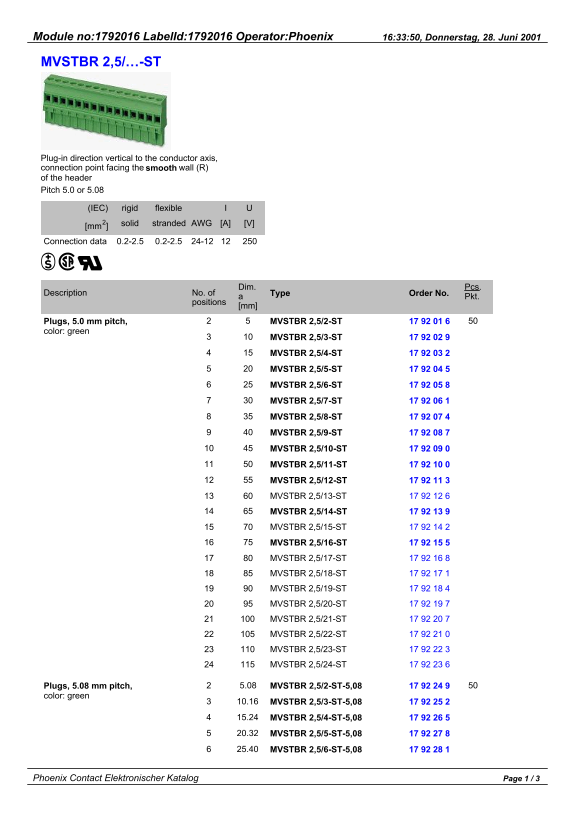

Phoenix CONTACT Module No. 1792016 Label ID 1792016 Operator Phoenix MVSTBR 2,5 ... -ST Data Handbook User Manual - Page 1

›

Page 1 Text Content

Module no:1792016 Label Id:1792016 Operator:Phoenix 16:33:50, Donnerstag, 28. Juni 2001

MVSTBR 2,5/…-ST

Plug-in direction vertical to the conductor axis, connection point facing the smooth wall (R) of the header Pitch 5.0 or 5.08

(IEC) rigid flexible

solid stranded AWG [A] [V]

[mm2]

Connection data 0.2-2.5 0.2-2.5 24-12

Dim. Pcs.

Description No. of Type Order No.

positions

Plugs, 5.0 mm pitch, MVSTBR 2,5/2-ST 17 92 01 6

color: green

MVSTBR 2,5/3-ST 17 92 02 9

MVSTBR 2,5/4-ST 17 92 03 2

MVSTBR 2,5/5-ST 17 92 04 5

MVSTBR 2,5/6-ST 17 92 05 8

MVSTBR 2,5/7-ST 17 92 06 1

MVSTBR 2,5/8-ST 17 92 07 4

MVSTBR 2,5/9-ST 17 92 08 7

MVSTBR 2,5/10-ST 17 92 09 0

MVSTBR 2,5/11-ST 17 92 10 0

MVSTBR 2,5/12-ST 17 92 11 3

MVSTBR 2,5/13-ST 17 92 12 6 MVSTBR 2,5/14-ST 17 92 13 9 MVSTBR 2,5/15-ST 17 92 14 2

MVSTBR 2,5/16-ST 17 92 15 5 MVSTBR 2,5/17-ST 17 92 16 8 MVSTBR 2,5/18-ST 17 92 17 1 MVSTBR 2,5/19-ST 17 92 18 4 MVSTBR 2,5/20-ST 17 92 19 7 MVSTBR 2,5/21-ST 17 92 20 7 MVSTBR 2,5/22-ST 17 92 21 0 MVSTBR 2,5/23-ST 17 92 22 3 MVSTBR 2,5/24-ST 17 92 23 6

Plugs, 5.08 mm pitch, 5.08 MVSTBR 2,5/2-ST-5,08 17 92 24 9

color: green

10.16 MVSTBR 2,5/3-ST-5,08 17 92 25 2

15.24 MVSTBR 2,5/4-ST-5,08 17 92 26 5

20.32 MVSTBR 2,5/5-ST-5,08 17 92 27 8

25.40 MVSTBR 2,5/6-ST-5,08 17 92 28 1

Phoenix Contact Elektronischer Katalog Page 1 / 3
