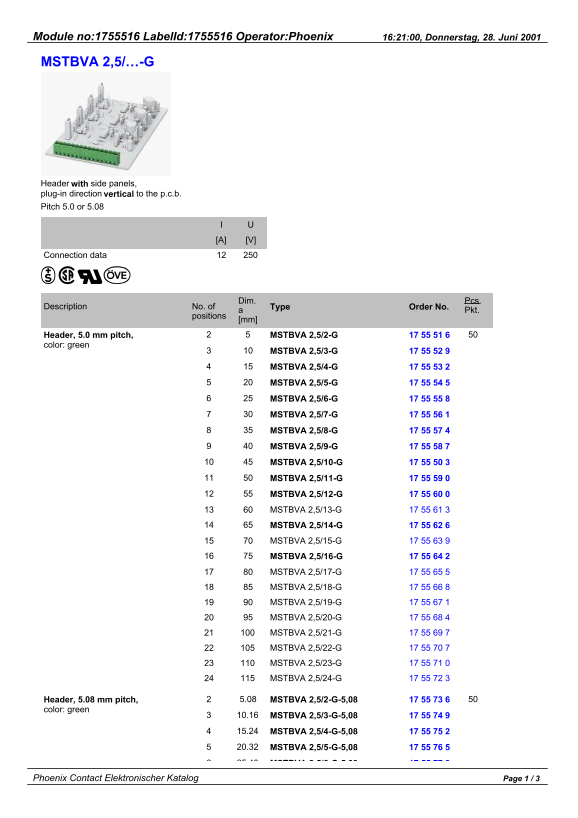

Module no:1755516 Label Id:1755516 Operator:Phoenix 16:21:00, Donnerstag, 28. Juni 2001
MSTBVA 2,5/…-G
Header with side panels, plug-in direction vertical to the p.c.b. Pitch 5.0 or 5.08
Connection data
Dim. Pcs.
Description No. of Type Order No.
positions
Header, 5.0 mm pitch, MSTBVA 2,5/2-G 17 55 51 6 color: green
MSTBVA 2,5/3-G 17 55 52 9
MSTBVA 2,5/4-G 17 55 53 2
MSTBVA 2,5/5-G 17 55 54 5
MSTBVA 2,5/6-G 17 55 55 8
MSTBVA 2,5/7-G 17 55 56 1
MSTBVA 2,5/8-G 17 55 57 4
MSTBVA 2,5/9-G 17 55 58 7
MSTBVA 2,5/10-G 17 55 50 3
MSTBVA 2,5/11-G 17 55 59 0
MSTBVA 2,5/12-G 17 55 60 0
MSTBVA 2,5/13-G 17 55 61 3 MSTBVA 2,5/14-G 17 55 62 6 MSTBVA 2,5/15-G 17 55 63 9 MSTBVA 2,5/16-G 17 55 64 2
MSTBVA 2,5/17-G 17 55 65 5 MSTBVA 2,5/18-G 17 55 66 8 MSTBVA 2,5/19-G 17 55 67 1 MSTBVA 2,5/20-G 17 55 68 4 MSTBVA 2,5/21-G 17 55 69 7 MSTBVA 2,5/22-G 17 55 70 7 MSTBVA 2,5/23-G 17 55 71 0 MSTBVA 2,5/24-G 17 55 72 3
Header, 5.08 mm pitch, 5.08 MSTBVA 2,5/2-G-5,08 17 55 73 6
color: green
10.16 MSTBVA 2,5/3-G-5,08 17 55 74 9
15.24 MSTBVA 2,5/4-G-5,08 17 55 75 2
20.32 MSTBVA 2,5/5-G-5,08 17 55 76 5
MSTBVA 5/6
Phoenix Contact Elektronischer Katalog Page 1 / 3
