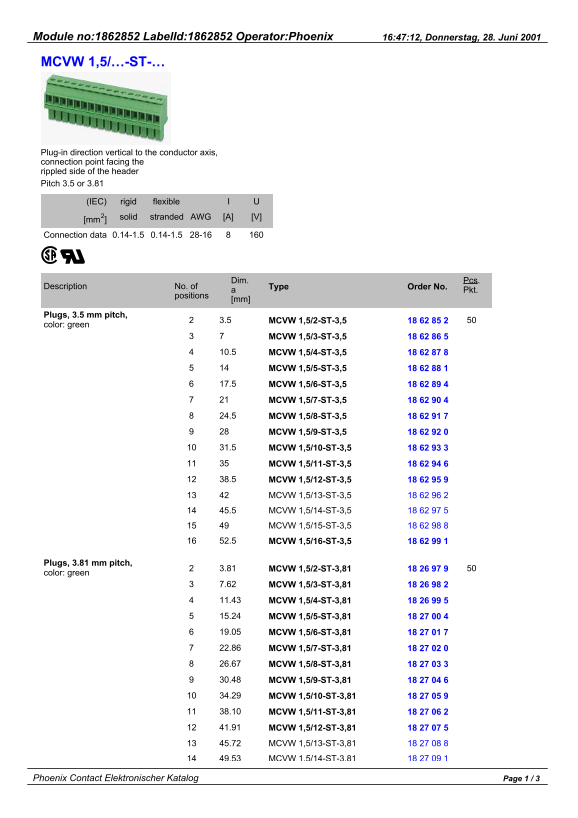

MCVW 1,5/…-ST-…
Plug-in direction vertical to the conductor axis, connection point facing the rippled side of the header Pitch 3.5 or 3.81
(IEC) rigid flexible solid stranded AWG [A] [V]
[mm2]
Connection data 0.14-1.5 0.14-1.5 28-16
Dim. Pcs.
Description No. of Type Order No.
positions
Plugs, 3.5 mm pitch,
3.5 MCVW 1,5/2-ST-3,5 18 62 85 2
color: green
MCVW 1,5/3-ST-3,5 18 62 86 5
10.5 MCVW 1,5/4-ST-3,5 18 62 87 8
MCVW 1,5/5-ST-3,5 18 62 88 1
17.5 MCVW 1,5/6-ST-3,5 18 62 89 4
MCVW 1,5/7-ST-3,5 18 62 90 4
24.5 MCVW 1,5/8-ST-3,5 18 62 91 7
MCVW 1,5/9-ST-3,5 18 62 92 0
31.5 MCVW 1,5/10-ST-3,5 18 62 93 3
MCVW 1,5/11-ST-3,5 18 62 94 6
38.5 MCVW 1,5/12-ST-3,5 18 62 95 9
MCVW 1,5/13-ST-3,5 18 62 96 2
45.5 MCVW 1,5/14-ST-3,5 18 62 97 5
MCVW 1,5/15-ST-3,5 18 62 98 8
52.5 MCVW 1,5/16-ST-3,5 18 62 99 1
Plugs, 3.81 mm pitch,
3.81 MCVW 1,5/2-ST-3,81 18 26 97 9
color: green
7.62 MCVW 1,5/3-ST-3,81 18 26 98 2
11.43 MCVW 1,5/4-ST-3,81 18 26 99 5
15.24 MCVW 1,5/5-ST-3,81 18 27 00 4
19.05 MCVW 1,5/6-ST-3,81 18 27 01 7
22.86 MCVW 1,5/7-ST-3,81 18 27 02 0
26.67 MCVW 1,5/8-ST-3,81 18 27 03 3
30.48 MCVW 1,5/9-ST-3,81 18 27 04 6
34.29 MCVW 1,5/10-ST-3,81 18 27 05 9
38.10 MCVW 1,5/11-ST-3,81 18 27 06 2
41.91 MCVW 1,5/12-ST-3,81 18 27 07 5
45.72 MCVW 1,5/13-ST-3,81 18 27 08 8 49.53 MCVW 1,5/14-ST-3,81
