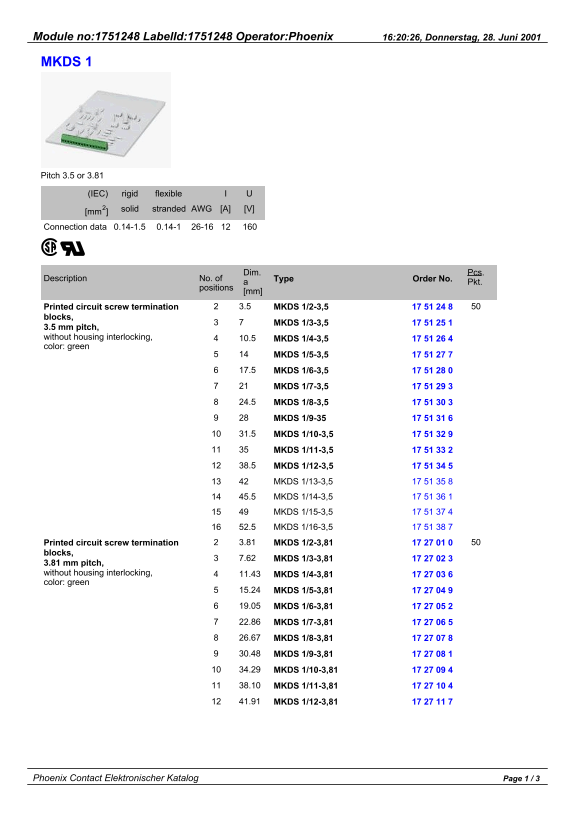

Module no:1751248 Label Id:1751248 Operator:Phoenix 16:20:26, Donnerstag, 28. Juni 2001
MKDS 1
Pitch 3.5 or 3.81
(IEC) rigid flexible
solid stranded AWG [A] [V]
[mm2]
Connection data 0.14-1.5 0.14-1 26-16
Dim. Pcs.
Description No. of Type Order No.
positions
[mm] Printed circuit screw termination 3.5 MKDS 1/2-3,5 17 51 24 8
blocks,
MKDS 1/3-3,5 17 51 25 1
3.5 mm pitch, without housing interlocking, 10.5 MKDS 1/4-3,5 17 51 26 4 color: green
MKDS 1/5-3,5 17 51 27 7
17.5 MKDS 1/6-3,5 17 51 28 0
MKDS 1/7-3,5 17 51 29 3
24.5 MKDS 1/8-3,5 17 51 30 3
MKDS 1/9-35 17 51 31 6
31.5 MKDS 1/10-3,5 17 51 32 9
MKDS 1/11-3,5 17 51 33 2
38.5 MKDS 1/12-3,5 17 51 34 5
MKDS 1/13-3,5 17 51 35 8 45.5 MKDS 1/14-3,5 17 51 36 1 MKDS 1/15-3,5 17 51 37 4 52.5 MKDS 1/16-3,5 17 51 38 7
Printed circuit screw termination 3.81 MKDS 1/2-3,81 17 27 01 0
blocks,
7.62 MKDS 1/3-3,81 17 27 02 3
3.81 mm pitch, without housing interlocking, 11.43 MKDS 1/4-3,81 17 27 03 6 color: green
15.24 MKDS 1/5-3,81 17 27 04 9
19.05 MKDS 1/6-3,81 17 27 05 2
22.86 MKDS 1/7-3,81 17 27 06 5
26.67 MKDS 1/8-3,81 17 27 07 8
30.48 MKDS 1/9-3,81 17 27 08 1
34.29 MKDS 1/10-3,81 17 27 09 4
38.10 MKDS 1/11-3,81 17 27 10 4
41.91 MKDS 1/12-3,81 17 27 11 7
