The NE5210 is a 7kOhm transimpedance wide-band, low-noise amplifier with differential outputs from Philips Semiconductors. Operating from a single 5V supply with 280MHz bandwidth and 3.5pA/sqrt(Hz) noise, it is designed for signal recovery in fiber-optic receivers and serves as a wideband gain block for RF processing, current-to-voltage conversion, and sensor preamplification. Housed in a 14-pin SO package, it targets engineers in medical instrumentation, telecommunications, and RF applications requiring high-performance amplification.

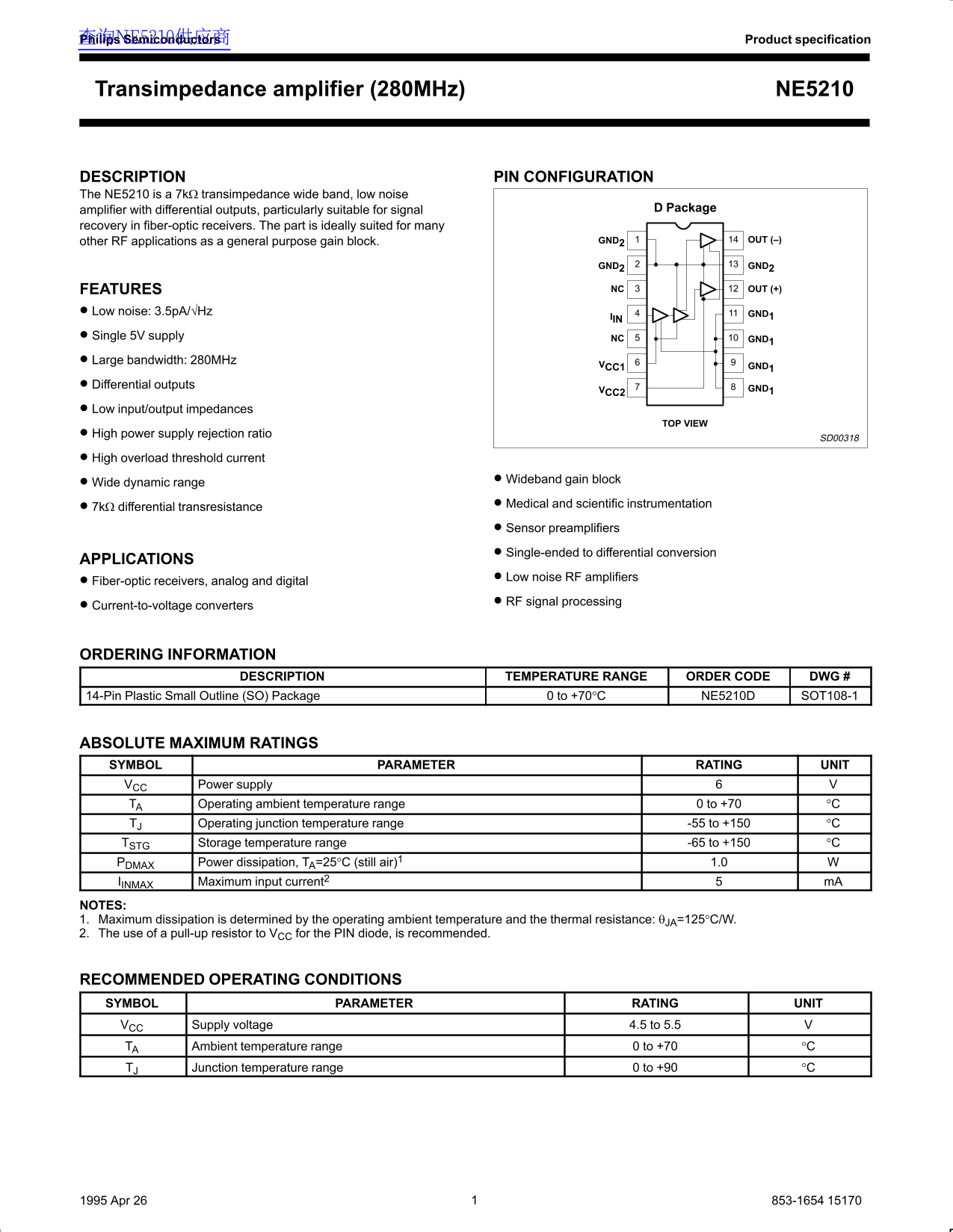

Page 1 Text Content
查询NE5210供应商 Philips Semiconductors Product specification
NE5210Transimpedance amplifier (280MHz)
DESCRIPTION PIN CONFIGURATION The NE5210 is a 7kΩ transimpedance wide band, low noise
amplifier with differential outputs, particularly suitable for signal D Package
recovery in fiber-optic receivers. The part is ideally suited for many
other RF applications as a general purpose gain block. GND2 OUT (–)
GND2 GND2
FEATURES NC OUT (+)
Low noise: 3.5p A/√Hz GND1
Single 5V supply NC GND1
Large bandwidth: 280MHz
VCC1 GND1
Differential outputs GND1
Low input/output impedances
TOP VIEW
High power supply rejection ratio
SD00318
High overload threshold current
Wideband gain block
Wide dynamic range
Medical and scientific instrumentation
7kΩ differential transresistance
Sensor preamplifiers Single-ended to differential conversion
APPLICATIONS
Low noise RF amplifiers
Fiber-optic receivers, analog and digital
RF signal processing
Current-to-voltage converters
ORDERING INFORMATION
DESCRIPTION TEMPERATURE RANGE ORDER CODE DWG #
14-Pin Plastic Small Outline (SO) Package 0 to +70°C NE5210D SOT108-1
ABSOLUTE MAXIMUM RATINGS SYMBOL PARAMETER RATING UNIT VCC Power supply TA Operating ambient temperature range 0 to +70 °C TJ Operating junction temperature range -55 to +150 °C TSTG Storage temperature range -65 to +150 °C PDMAX Power dissipation, TA=25°C (still air)1 1.0 IINMAX Maximum input current2 m A NOTES: 1. Maximum dissipation is determined by the operating ambient temperature and the thermal resistance: θJA=125°C/W. 2. The use of a pull-up resistor to VCC for the PIN diode, is recommended.
RECOMMENDED OPERATING CONDITIONS SYMBOL PARAMETER RATING UNIT VCC Supply voltage 4.5 to 5.5 TA Ambient temperature range 0 to +70 °C TJ Junction temperature range 0 to +90 °C
11995 Apr 26 853-1654 15170
Page Summary Contents For Philips Semiconductors Transimpedance Amplifier (280MHz) NE5210 Data Sheet User Manual
Manual Details
| Brand | Philips |
|---|---|
| Pages | 14 |
| File Size | 170.78 KB |
| Published | July 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the bandwidth of the NE5210 transimpedance amplifier?
The NE5210 has a -3dB bandwidth of 280MHz typical, with a minimum of 200MHz at 5V and 25°C.
What supply voltage does the NE5210 require?
The recommended supply voltage is 4.5 to 5.5V, with typical operation at 5V.
What is the maximum operating ambient temperature for the NE5210?
The NE5210 has an operating ambient temperature range of 0 to +70°C.
What is the differential transresistance of the NE5210?
The differential transresistance is 7kΩ typical, with a range of 4.9kΩ to 10kΩ at 5V.
