Philips Semiconductors PowerMOS Transistor BUK108-50GL Data Sheet
Summary
This robust logic-level TOPFET PowerMOS transistor is a general-purpose, overload-protected switch designed for high-current power management in demanding environments. Engineered for reliability in applications such as automotive systems, lamps, motors, and solenoids, it features integrated protection against over-temperature, short circuits, and overvoltage transients. The accompanying manual provides complete technical specifications, operational limiting values, and comprehensive electrical data required by engineers designing robust switching controllers that demand high performance and built-in safety mechanisms.

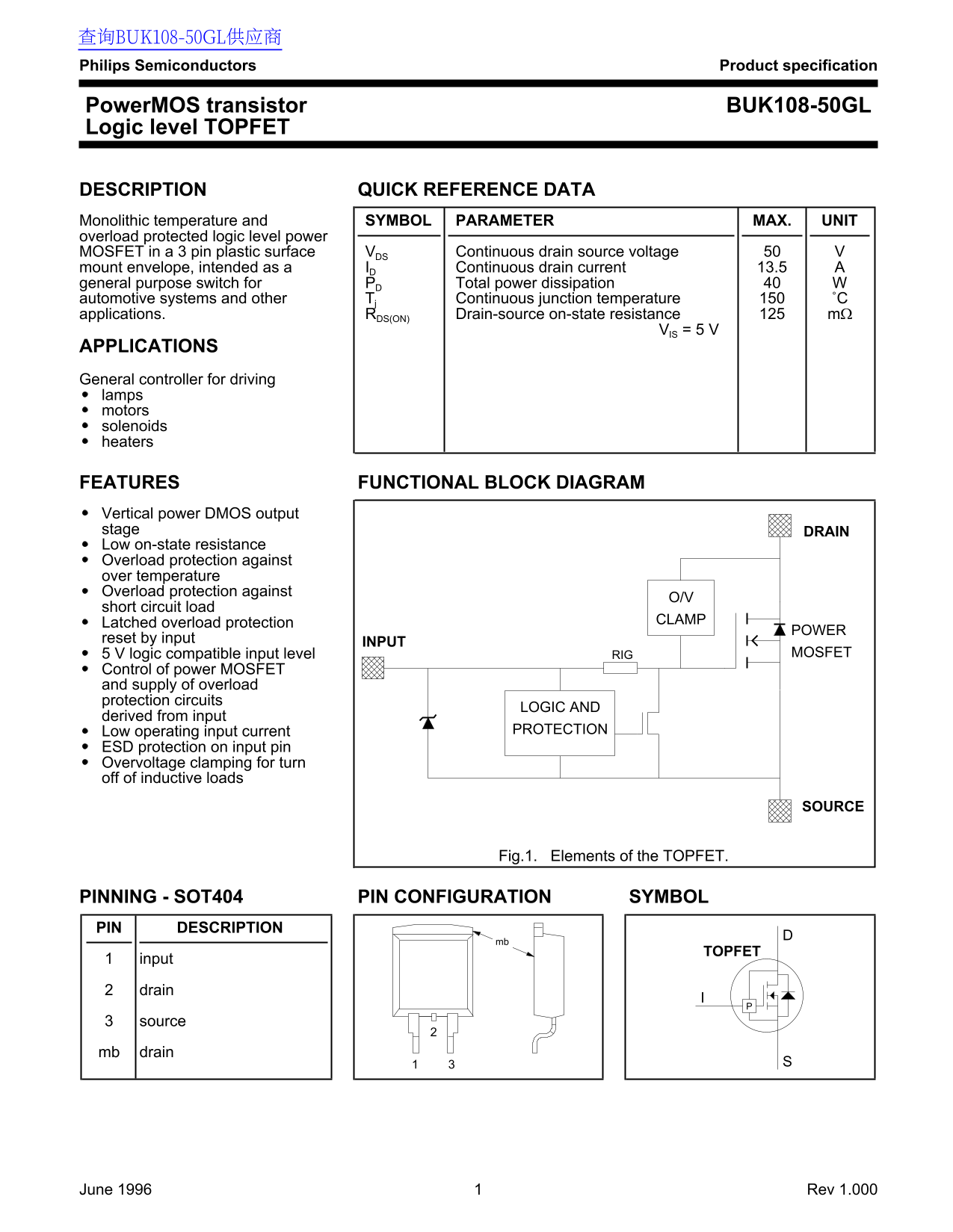

Page 1 Text Content
查询BUK108-50GL供应商 Philips Semiconductors Product specification
Power MOS transistor BUK108-50GL Logic level TOPFET
DESCRIPTION QUICK REFERENCE DATA Monolithic temperature and SYMBOL PARAMETER MAX. UNIT overload protected logic level power
MOSFET in a 3 pin plastic surface VDS Continuous drain source voltage
mount envelope, intended as a ID Continuous drain current 13.5 general purpose switch for PD Total power dissipation automotive systems and other Tj Continuous junction temperature ˚C applications. RDS(ON) Drain-source on-state resistance mΩ
VIS = 5 V
APPLICATIONS General controller for driving lamps motors solenoids heaters
FEATURES FUNCTIONAL BLOCK DIAGRAM Vertical power DMOS output stage DRAIN Low on-state resistance Overload protection against over temperature Overload protection against
short circuit load
Latched overload protection CLAMP
POWER
reset by input
INPUT
5 V logic compatible input level RIG MOSFET
Control of power MOSFET and supply of overload protection circuits
LOGIC AND
derived from input
Low operating input current PROTECTION
ESD protection on input pin Overvoltage clamping for turn off of inductive loads
SOURCE
Fig.1. Elements of the TOPFET.
PINNING - SOT404 PIN CONFIGURATION SYMBOL PIN DESCRIPTION
TOPFET
input
drain source mb drain
June 1996 Rev 1.000
Page Summary Contents For Philips Semiconductors PowerMOS Transistor BUK108-50GL Data Sheet
Manual Details
| Brand | Philips |
|---|---|
| Pages | 11 |
| File Size | 130.54 KB |
| Published | July 07, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the continuous drain current capacity?
The device can handle a continuous drain current (ID) up to 13.5 A at room temperature (T ≤ 25°C).
How does the TOPFET protect against overload conditions?
It provides both over-temperature and short-circuit load protection, losing power when either threshold is reached. The status of protection is latched until reset by the input.
What is the maximum continuous junction temperature allowed?
The maximum continuous junction temperature (Tj) for normal operation is 150°C.
Is this device compatible with general control logic?
Yes, it operates at a logic level and can be used to derive signals from controlled power MOSFETs using a 5V compatible input voltage (VIS).
What precautions are required when using this product in sensitive systems?
The manual cautions that the products are not designed for use in life support appliances or systems where malfunction could cause personal injury.
