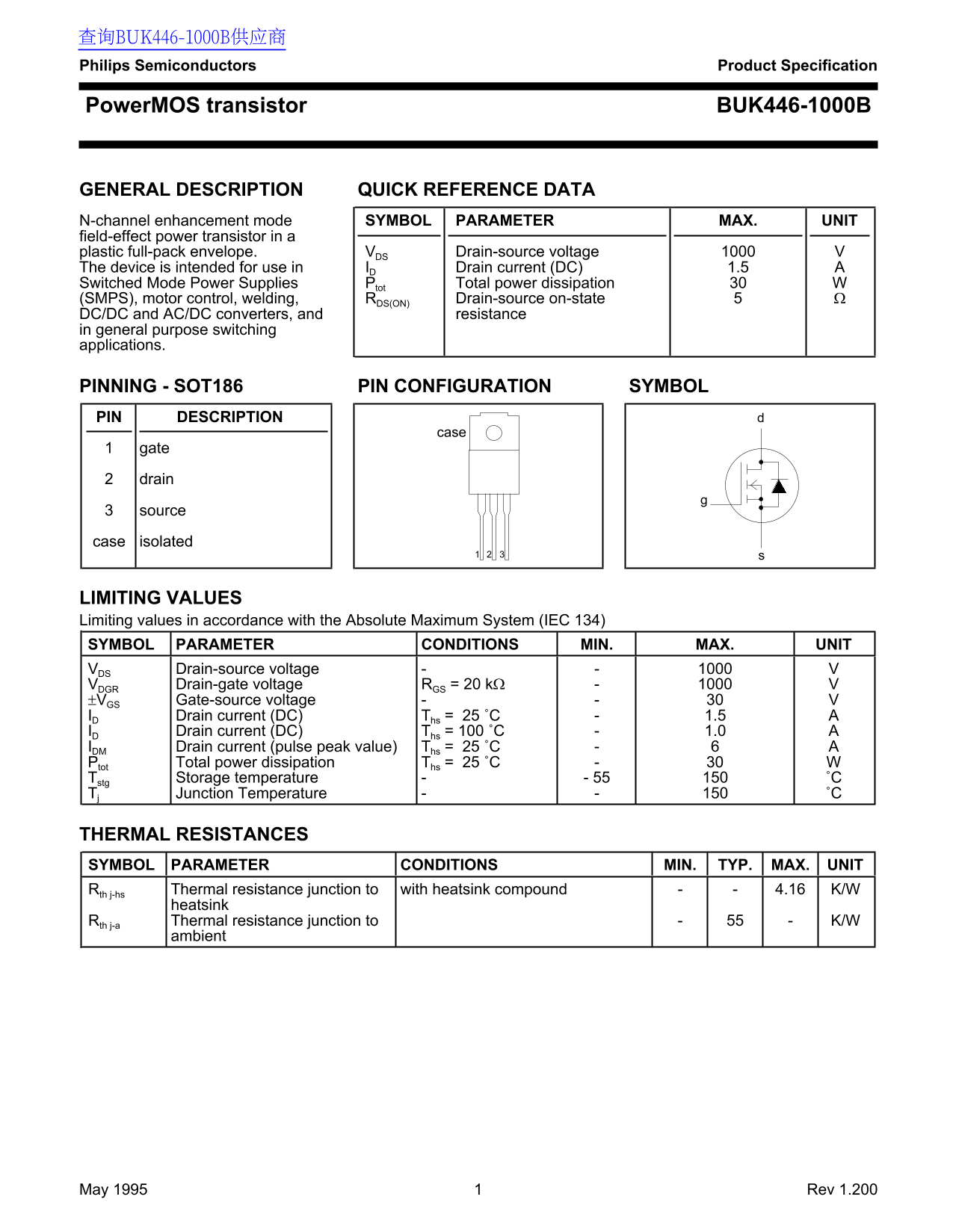

Page 1 Text Content
查询BUK446-1000B供应商 Philips Semiconductors Product Specification
Power MOS transistor BUK446-1000B
GENERAL DESCRIPTION QUICK REFERENCE DATA N-channel enhancement mode SYMBOL PARAMETER MAX. UNIT field-effect power transistor in a
plastic full-pack envelope. VDS Drain-source voltage
The device is intended for use in ID Drain current (DC) 1.5 Switched Mode Power Supplies Ptot Total power dissipation (SMPS), motor control, welding, RDS(ON) Drain-source on-state DC/DC and AC/DC converters, and resistance in general purpose switching applications.
PINNING - SOT186 PIN CONFIGURATION SYMBOL PIN DESCRIPTION
gate drain
source case isolated
LIMITING VALUES Limiting values in accordance with the Absolute Maximum System (IEC 134) SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT VDS Drain-source voltage VDGR Drain-gate voltage RGS = 20 kΩ ±VGS Gate-source voltage ID Drain current (DC) Ths = 25 ˚C 1.5 ID Drain current (DC) Ths = 100 ˚C 1.0 IDM Drain current (pulse peak value) Ths = 25 ˚C Ptot Total power dissipation Ths = 25 ˚C Tstg Storage temperature - 55 ˚C Tj Junction Temperature ˚C
THERMAL RESISTANCES SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT Rth j-hs Thermal resistance junction to with heatsink compound 4.16 K/W
heatsink
Rth j-a Thermal resistance junction to K/W
ambient
May 1995 Rev 1.200
