Philips Semiconductors PowerMOS Transistor BUK107-50DS Data Sheet
Summary
The BUK107-50DS is a logic-level PowerMOS transistor (TOPFET) designed as a general-purpose switch for automotive systems, small motors, and solenoids. This manual provides comprehensive technical specifications, detailing its features such as integrated overload protection, overvoltage clamping, and precise electrical operating limits. It is essential reading for engineers selecting components that require reliable switching capabilities in demanding power supply environments.

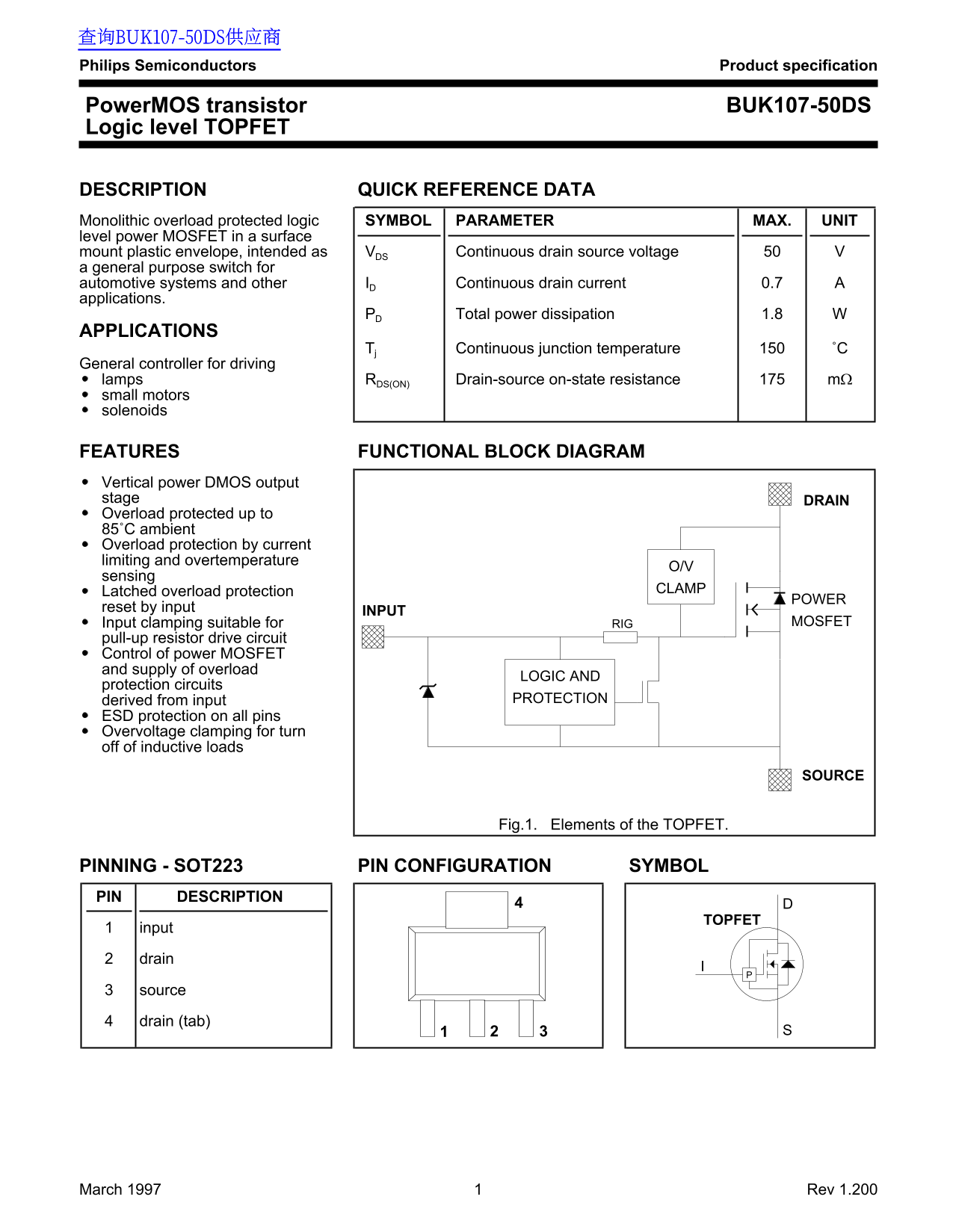

Page 1 Text Content
查询BUK107-50DS供应商 Philips Semiconductors Product specification
Power MOS transistor BUK107-50DS Logic level TOPFET
DESCRIPTION QUICK REFERENCE DATA Monolithic overload protected logic SYMBOL PARAMETER MAX. UNIT level power MOSFET in a surface
mount plastic envelope, intended as VDS Continuous drain source voltage
a general purpose switch for automotive systems and other ID Continuous drain current 0.7 applications.
PD Total power dissipation 1.8
APPLICATIONS
Tj Continuous junction temperature ˚C
General controller for driving lamps RDS(ON) Drain-source on-state resistance mΩ small motors solenoids
FEATURES FUNCTIONAL BLOCK DIAGRAM Vertical power DMOS output stage DRAIN Overload protected up to 85˚C ambient Overload protection by current limiting and overtemperature
sensing
Latched overload protection CLAMP
POWER
reset by input
INPUT
Input clamping suitable for RIG MOSFET
pull-up resistor drive circuit Control of power MOSFET and supply of overload
LOGIC AND
protection circuits
derived from input PROTECTION
ESD protection on all pins Overvoltage clamping for turn off of inductive loads
SOURCE
Fig.1. Elements of the TOPFET.
PINNING - SOT223 PIN CONFIGURATION SYMBOL PIN DESCRIPTION
TOPFET
input drain
source drain (tab)
March 1997 Rev 1.200
Page Summary Contents For Philips Semiconductors PowerMOS Transistor BUK107-50DS Data Sheet
Manual Details
| Brand | Philips |
|---|---|
| Pages | 9 |
| File Size | 59.91 KB |
| Published | July 12, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum continuous drain-source voltage?
The maximum continuous drain source voltage (VDSS) is 50 V.
Does the TOPFET provide overload protection?
Yes, it provides overload protection by means of drain current limiting and activating overtemperature protection. It remains latched off until reset by the input.
What happens if there is an overvoltage transient at the drain source?
The power MOSFET actively turns on to clamp overvoltage transients, providing clamping energy (E) up to 100 mJ for inductive loads.
How can I calculate the thermal resistance when mounted on a PCB?
When mounted on any PCB, the thermal resistance junction to board (thj-b) is typically between 40 and 70 K/W.
