The BYV29X-600 is an ultra-fast, epitaxial rectifier diode designed for use as an output rectifier in high-frequency switched mode power supplies. Manufacturers can rely on this component for its superior performance, characterized by low forward voltage drop, rapid switching times, and reliable thermal stability. This technical manual provides comprehensive specifications, including absolute maximum ratings, detailed electrical parameters (I_F(AV), V_RWM), thermal resistances, and packaging dimensions, making it an essential resource for power electronics designers selecting components for demanding industrial applications.

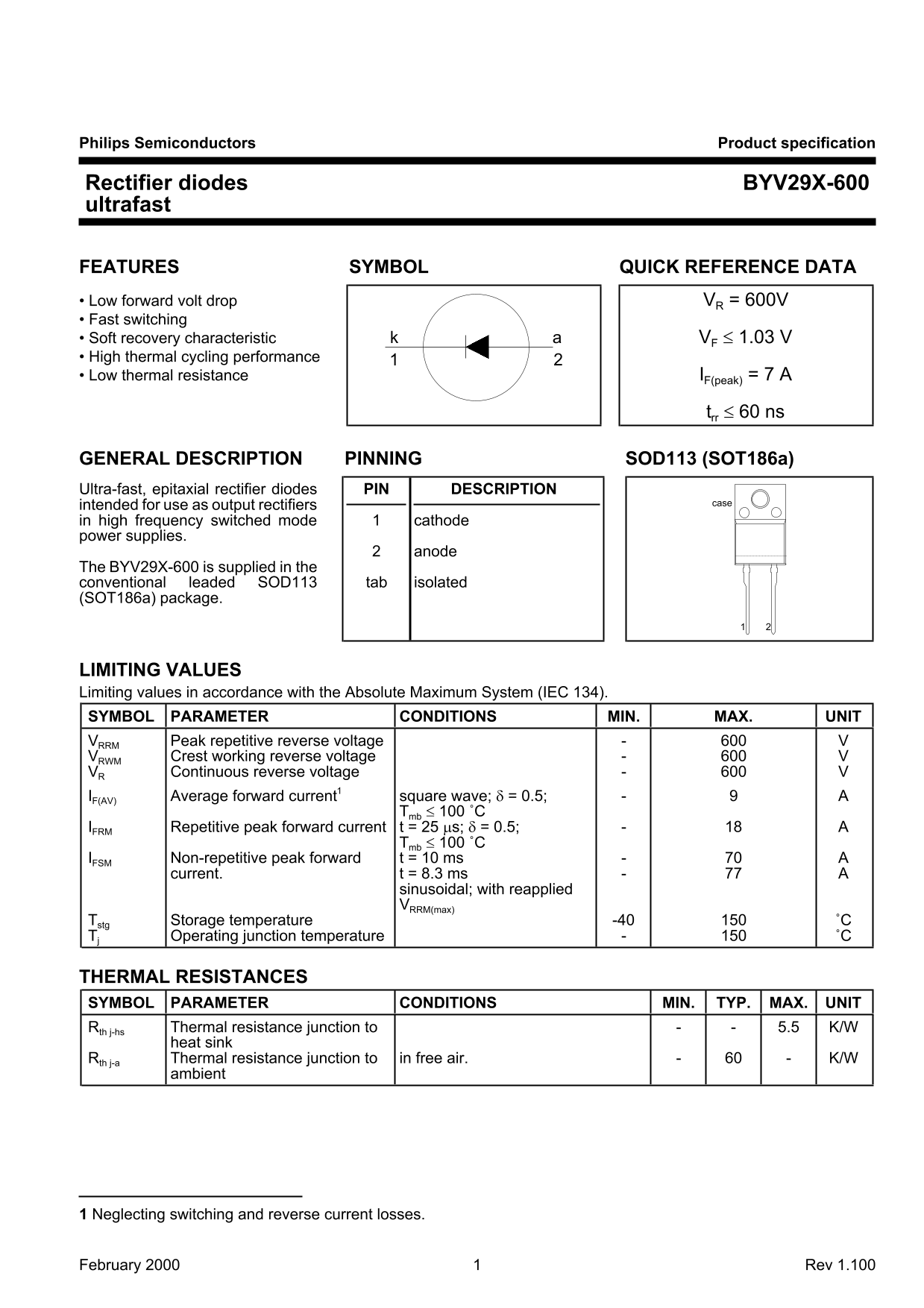

Page 1 Text Content
Philips Semiconductors Product specification
Rectifier diodes BYV29X-600 ultrafast
FEATURES SYMBOL QUICK REFERENCE DATA • Low forward volt drop VR = 600V • Fast switching • Soft recovery characteristic VF ≤ 1.03 V • High thermal cycling performance • Low thermal resistance IF(peak) = 7 A
trr ≤ 60 ns
GENERAL DESCRIPTION PINNING SOD113 (SOT186a) Ultra-fast, epitaxial rectifier diodes PIN DESCRIPTION
intended for use as output rectifiers case
in high frequency switched mode cathode power supplies.
anode
The BYV29X-600 is supplied in the conventional leaded SOD113 tab isolated (SOT186a) package.
LIMITING VALUES Limiting values in accordance with the Absolute Maximum System (IEC 134). SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT VRRM Peak repetitive reverse voltage VRWM Crest working reverse voltage VR Continuous reverse voltage IF(AV) Average forward current1 square wave; δ = 0.5;
Tmb ≤ 100 ˚C
IFRM Repetitive peak forward current t = 25 µs; δ = 0.5;
Tmb ≤ 100 ˚C
IFSM Non-repetitive peak forward t = 10 ms
current. t = 8.3 ms
sinusoidal; with reapplied VRRM(max)
Tstg Storage temperature -40 ˚C Tj Operating junction temperature ˚C
THERMAL RESISTANCES SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT Rth j-hs Thermal resistance junction to 5.5 K/W
heat sink
Rth j-a Thermal resistance junction to in free air. K/W
ambient
1 Neglecting switching and reverse current losses.
February 2000 Rev 1.100
