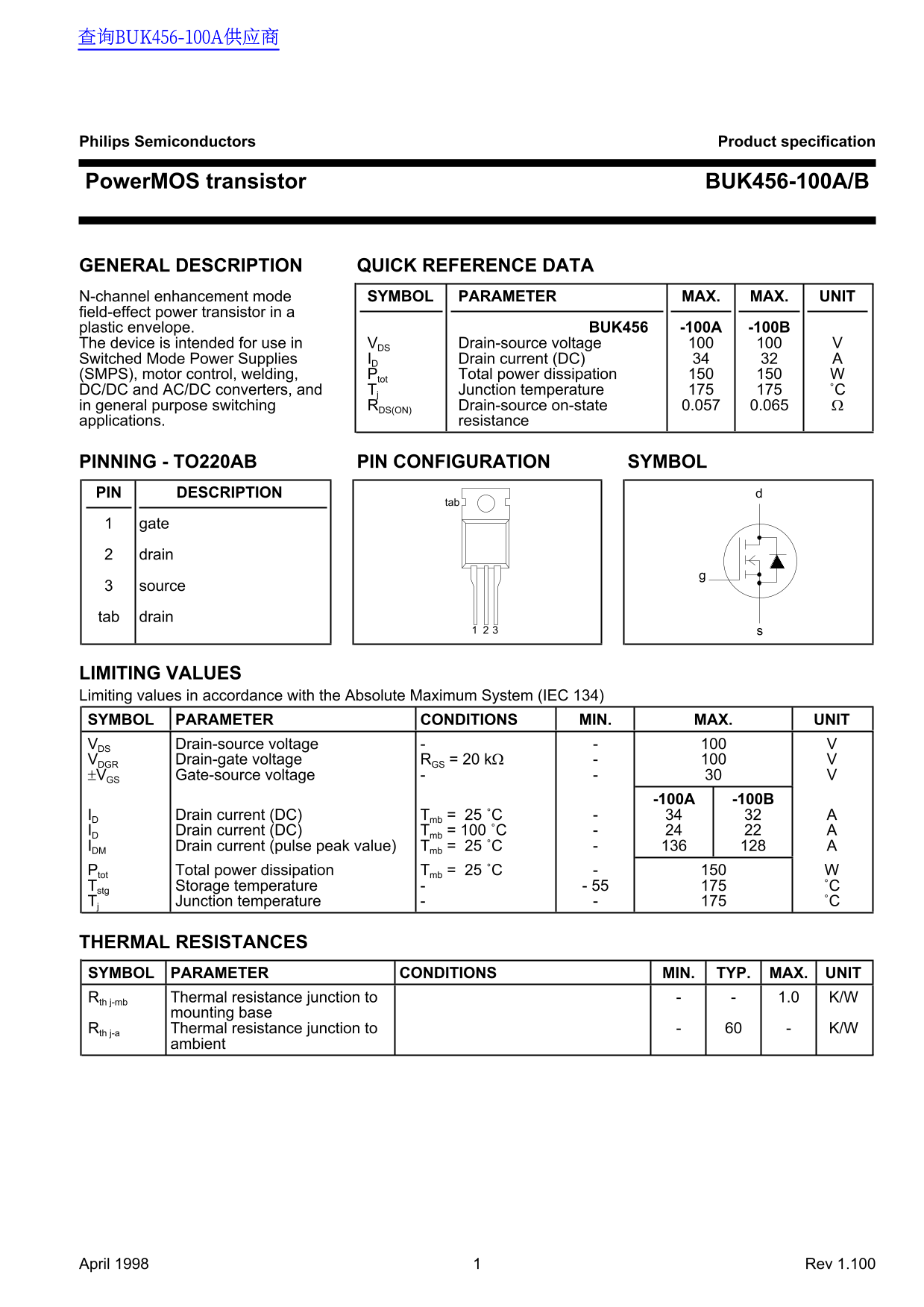

Page 1 Text Content

查询BUK456-100A供应商

Philips Semiconductors Product specification

Power MOS transistor BUK456-100A/B

GENERAL DESCRIPTION QUICK REFERENCE DATA N-channel enhancement mode SYMBOL PARAMETER MAX. MAX. UNIT field-effect power transistor in a plastic envelope. BUK456 -100A -100B

The device is intended for use in VDS Drain-source voltage Switched Mode Power Supplies ID Drain current (DC)

(SMPS), motor control, welding, Ptot Total power dissipation DC/DC and AC/DC converters, and Tj Junction temperature ˚C

in general purpose switching RDS(ON) Drain-source on-state 0.057 0.065

applications. resistance

PINNING - TO220AB PIN CONFIGURATION SYMBOL PIN DESCRIPTION

gate drain

source tab drain

LIMITING VALUES Limiting values in accordance with the Absolute Maximum System (IEC 134) SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT VDS Drain-source voltage VDGR Drain-gate voltage RGS = 20 kΩ ±VGS Gate-source voltage

ID Drain current (DC) Tmb = 25 ˚C ID Drain current (DC) Tmb = 100 ˚C IDM Drain current (pulse peak value) Tmb = 25 ˚C Ptot Total power dissipation Tmb = 25 ˚C Tstg Storage temperature - 55 ˚C Tj Junction temperature ˚C

THERMAL RESISTANCES SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Rth j-mb Thermal resistance junction to 1.0 K/W mounting base

Rth j-a Thermal resistance junction to K/W

ambient

April 1998 Rev 1.100
