The NE/SA5209 is a high-speed, linear broadband RF variable gain amplifier designed for single 5V operation. It features a Gilbert architecture with high impedance inputs and 50Ω differential outputs, making it ideal for cable TV, satellite receivers, radar, and cellular applications requiring AGC and impedance transformation.
Page 1 Text Content

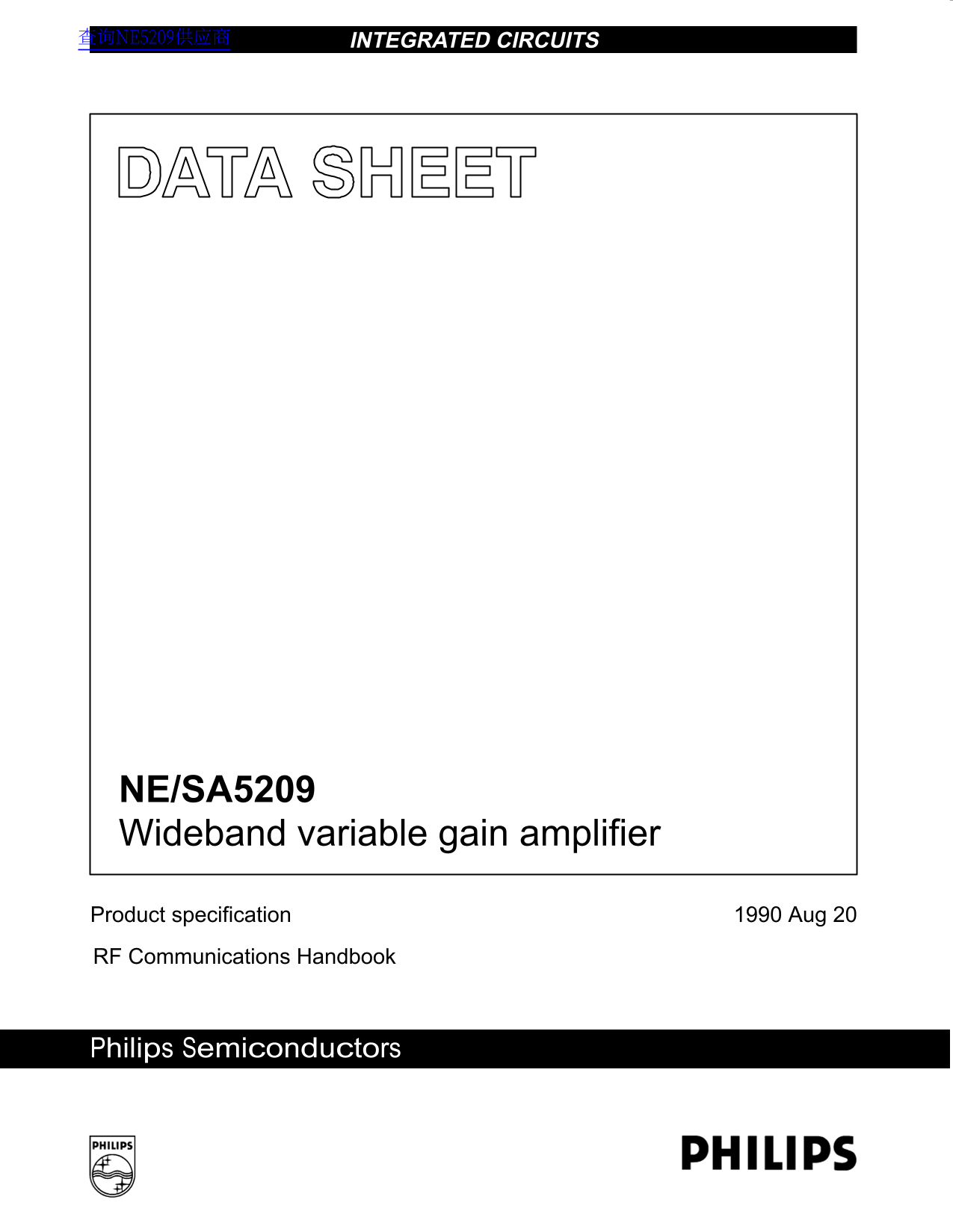

查询NE5209供应商 INTEGRATED CIRCUITS
NE/SA5209 Wideband variable gain amplifier
Product specification 1990 Aug 20 RF Communications Handbook
Philips Semiconductors
Page Summary Contents For Philips NE SA5209 Wideband Variable Gain Amplifier Data Sheet
Page 1
查询NE5209供应商 INTEGRATED CIRCUITS NE/SA5209 Wideband variable gain amplifier Product specification 1990 Aug 20 RF Communications Handbook Philips Semiconductors
Page 2
Philips Semiconductors Product specification NE/SA5209Wideband variable gain amplifier DESCRIPTION PIN CONFIGURATION The NE5209 represents a breakthrough in monolithic amplifier design featuring sever...
Page 3
Philips Semiconductors Product specification NE/SA5209Wideband variable gain amplifier ABSOLUTE MAXIMUM RATINGS SYMBOL PARAMETER RATING UNITS VCC Supply voltage -0.5 to +8.0 Power dissipation, TA = 25...
Page 4
Philips Semiconductors Product specification NE/SA5209Wideband variable gain amplifier DC ELECTRICAL CHARACTERISTICS TA = 25o C, VCC1 = VCC2 = +5.0V, VAGC = 1.0V, unless otherwise specified. LIMITS SY...
Page 5
Philips Semiconductors Product specification NE/SA5209Wideband variable gain amplifier NE5209 APPLICATIONS gain. The 5209 has about a 1.2d B noise figure degradation for each 2d B gain reduction. With...
Page 6
Philips Semiconductors Product specification NE/SA5209Wideband variable gain amplifier RF/IF AGC INPUT OUTPUT C4 BAT 17 R6 1k pot R5 BAT 17 SR00239 Figure 3. AGC Configuration Using Cascaded NE5209s V...
Page 7
Philips Semiconductors Product specification NE/SA5209Wideband variable gain amplifier 2:1 TURNS RATIO LC TUNED TRANSFORMER 50Ω 50Ω OUTPUT SOURCE This circuit will exhibit about a 7d B noise figure wi...
Page 8
Philips Semiconductors Product specification NE/SA5209Wideband variable gain amplifier 50Ω 50Ω SOURCE OUTPUT Gain = 19d B + 20log10 VAGC VAGC R2 where VAGC = VBG VBG R1 R2 and is in units of Volts, fo...
Page 9
Philips Semiconductors Product specification NE/SA5209Wideband variable gain amplifier ag it ag it VCC = 5.5V VCC = 5.0V VCC = 4.5V RS = 0Ω RL = ∞ RS = RL = 50Ω Rt = ∞ Rt = ∞ 16.5 VAGC = 1.1V f = 10MH...
Page 10
Philips Semiconductors Product specification In ia Vo lt ag (V NE/SA5209Wideband variable gain amplifier In es is ta ce VCC = 7.0V VCC = 6.0V VCC = 7.0V 1.3 VCC = 4.5V VCC = 5.0V VCC = 4.5V DC Tested ...
Page 11
Philips Semiconductors Product specification NE/SA5209Wideband variable gain amplifier ag it (d ag it (d VCC = 7.0V VCC = 6.0V VCC = 5.0V VCC = 4.5V T = 25°C 50m V VAGC = 1.1V Rt = 50Ω f = 10MHz See T...
Page 12
Philips Semiconductors Product specification NE/SA5209Wideband variable gain amplifier ag it (d OUTPUT –20 T = 25°C RS = RL = 50Ω Rt = 50Ω f = 100MHz See test-setup 1 INPUT RS = RL = 50Ω Rt = 50Ω See ...
Page 13
Philips Semiconductors Product specification NE/SA5209Wideband variable gain amplifier an ap lt ag (V 0Ω Termination on INB 50Ω Termination on INB RS = RL = 50Ω VAGC = 1.1V Rt = 50Ω RS = RL = 50Ω Rt =...
Page 14
Philips Semiconductors Product specification NE/SA5209Wideband variable gain amplifier +VCC GND OUTA NE5209 TOP VIEW - COMPONENT SIDE TOP VIEW - SOLDER SIDE SR00271 Figure 35. AGC Configuration Using ...
Page 15
Philips Semiconductors Product specification NE/SA5209Wideband variable gain amplifier DEFINITIONS Data Sheet Identification Product Status Definition This data sheet contains the design target or goa...
