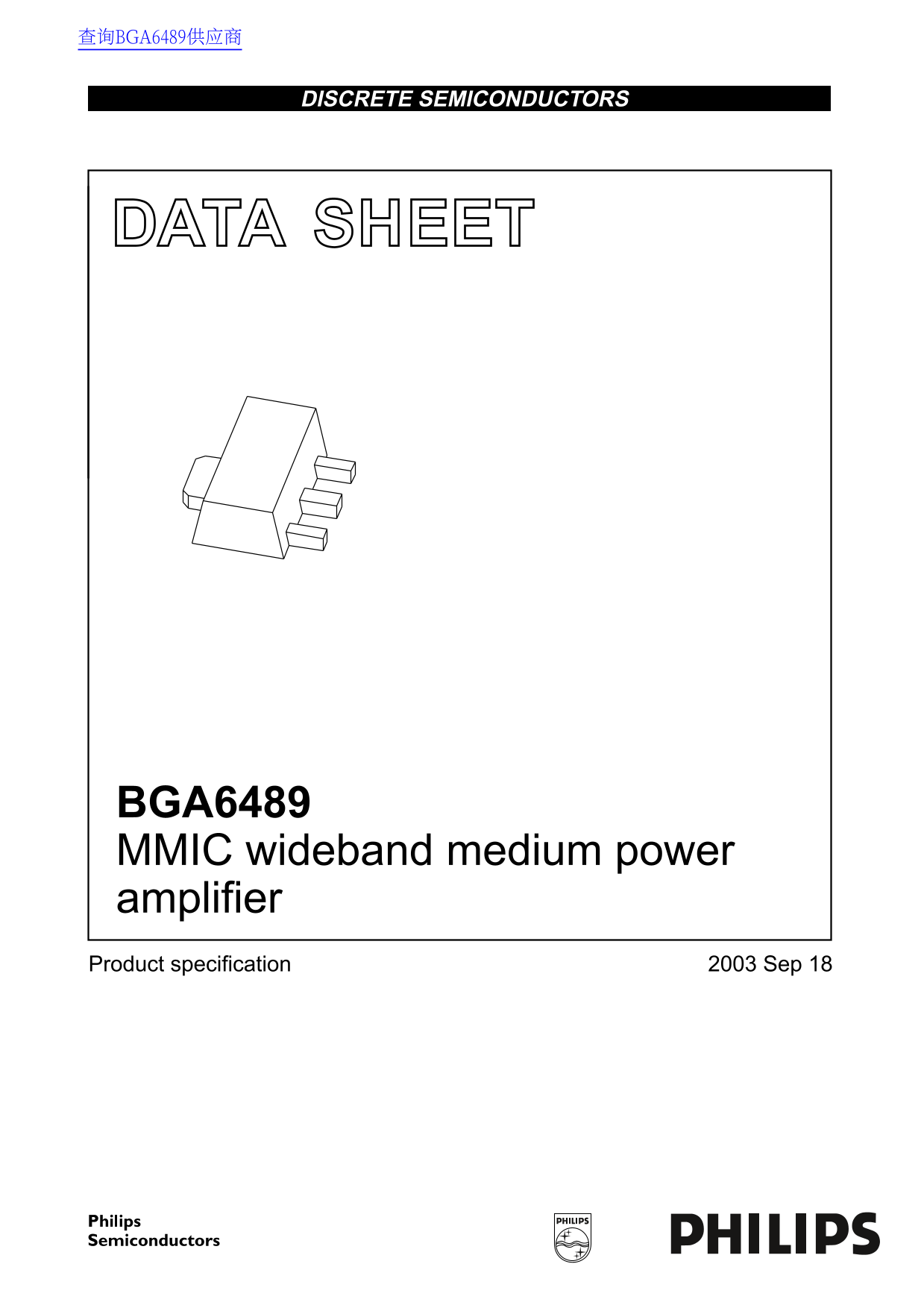

PHILIPS BGA6489 MMIC Wideband Medium Power Amplifier User Guide Data Sheet
Summary
This advanced MMIC wideband medium power amplifier is essential for high-frequency data and wireless communication systems requiring stable, broadband gain blocks. This comprehensive datasheet provides engineers with detailed technical specifications, including electrical characteristics, limiting values, thermal guides, and optimal application circuit guidelines. It is designed for use in complex RF applications such as cellular, PCS/CDPD infrastructure, IF/RF buffers, and CATV drivers, ensuring reliable performance in demanding signal processing environments.
Manual Details
| Brand | Philips |
|---|---|
| Pages | 12 |
| File Size | 78.04 KB |
| Published | July 12, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Does this amplifier require external matching circuits to function?
No, the device is internally matched to 50 Ω, meaning it does not require external matching.
What are the critical setup recommendations for external components?
External components should be placed as close as possible to the MMIC, and multiple via holes must be used per pin when routing through vias.
What is the typical insertion power gain at 1.95 GHz?
The characteristic data shows a typical insertion power gain of 16 dB at 1.95 GHz.
