PHILIPS BGM1012 Wideband MMIC Amplifier Data Sheet Manual
Summary
This manual details the BGM1012 MMIC wideband amplifier, a highly linear, internally matched Silicon Monolithic Microwave Integrated Circuit. Designed for demanding RF systems, it offers consistent performance across an ultra-wide frequency range (DC to 3 GHz). The document provides comprehensive technical specifications, including electrical characteristics, power ratings, noise figure data, and application guides. It is essential reading for RF engineers and microwave designers integrating high-performance amplifiers into LNB IF units, cable systems, or general communication equipment.
Page 1 Text Content
DISCRETE SEMICONDUCTORS
DATA SHEET
book, halfpage
MBD128

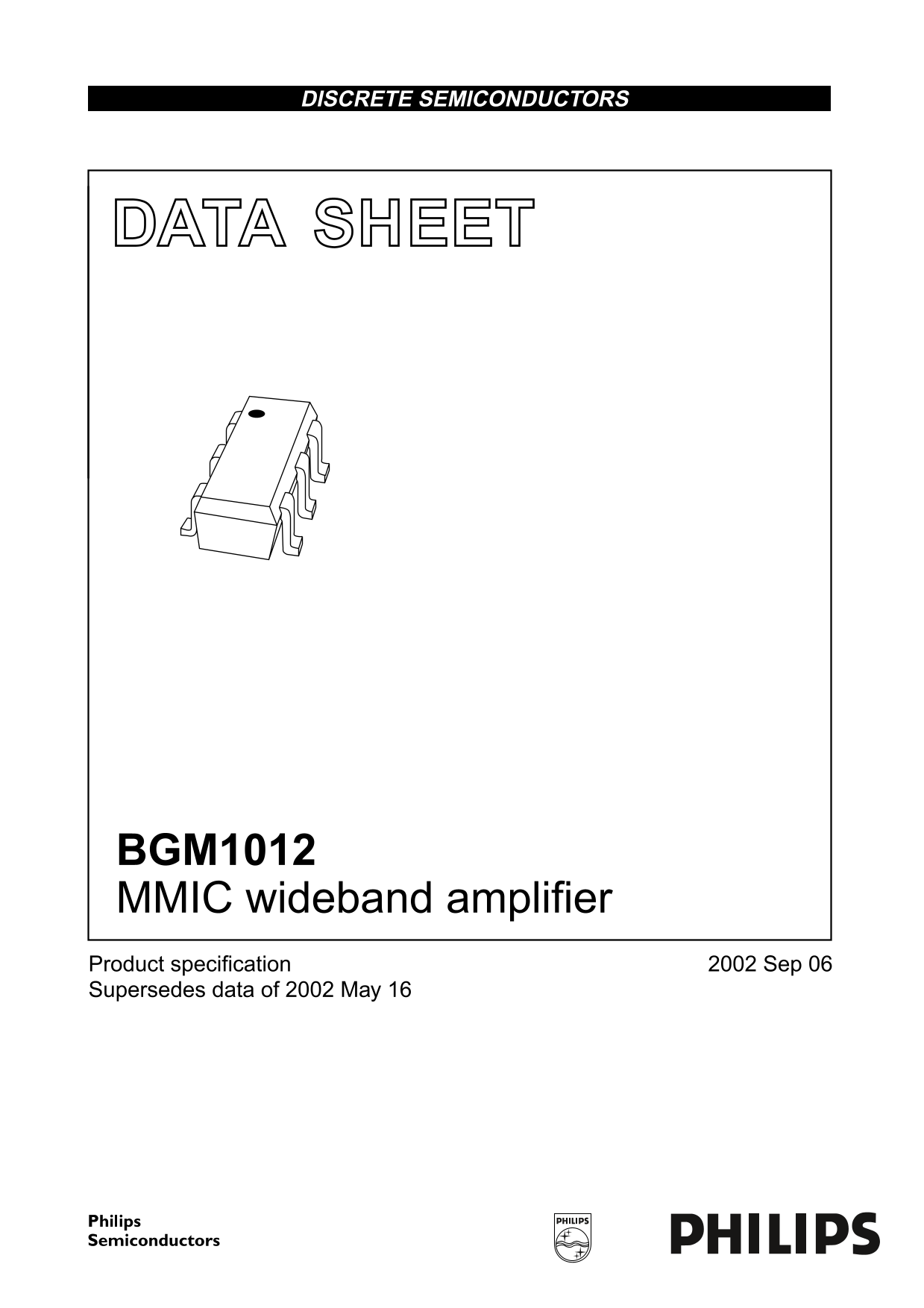

BGM1012 MMIC wideband amplifier Product specification Sep Supersedes data of 2002 May
Page Summary Contents For PHILIPS BGM1012 Wideband MMIC Amplifier Data Sheet Manual
Manual Details
| Brand | Philips |
|---|---|
| Pages | 12 |
| File Size | 87.99 KB |
| Published | July 12, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Does this amplifier require external matching components?
No, the device is internally matched to 50 Ω and does not need any external matching.
What is the recommended ground plane design practice for complex circuits?
Use separate paths for circuit or demodulator ground pins (GND1 and GND2), ensuring these paths are as wide and short as possible.
How should I adjust DC blocking capacitors based on operating frequency?
For applications above 100 MHz, the capacitor limit is not more than 100 pF; when operated below 100 MHz, the value must be increased.
What are the minimum operational specifications for supplying power and current?
The DC supply voltage range is 3 V to 4 V, and the nominal supply current ranges from 11 mA to 19 mA.
