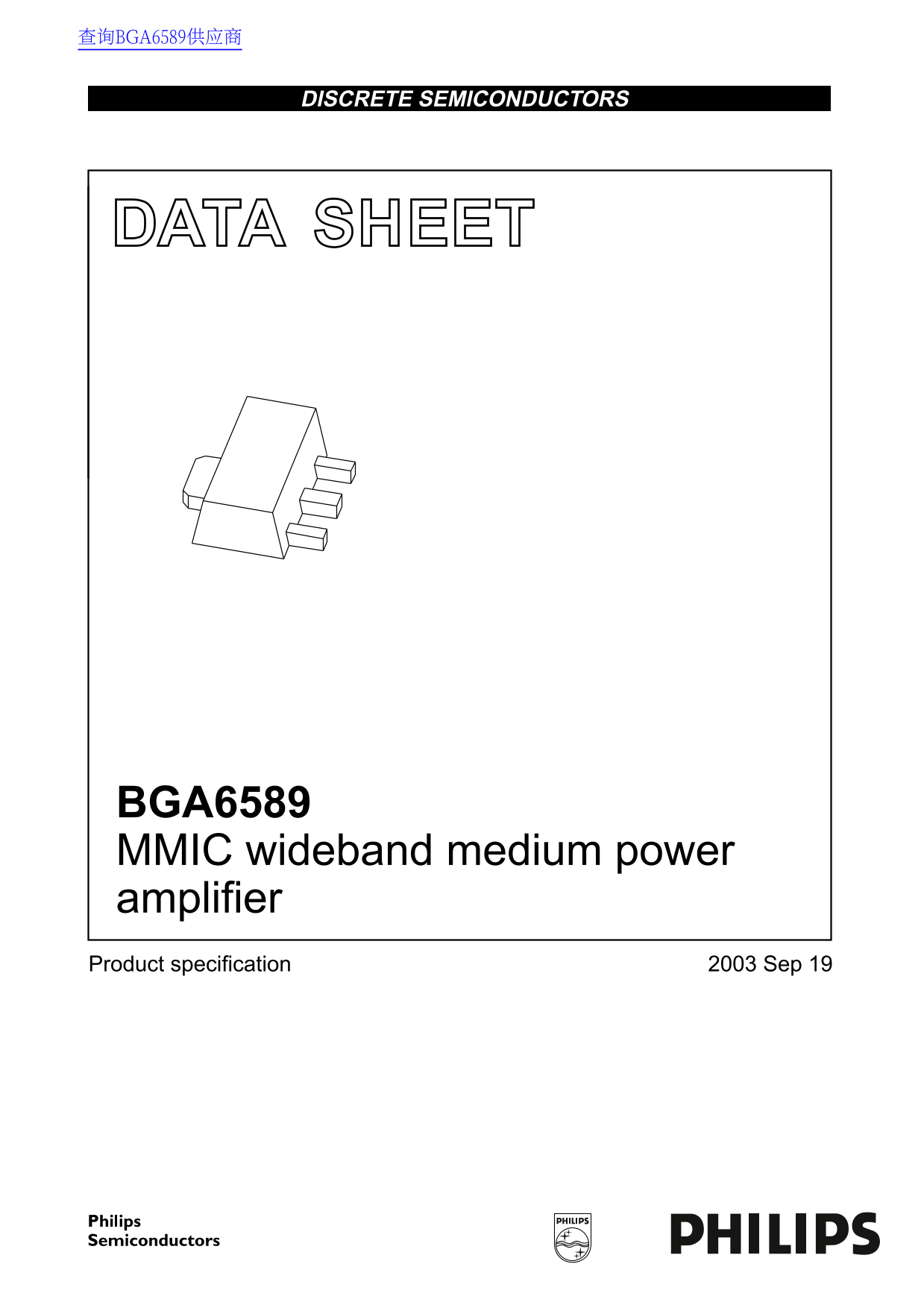

Philips BGA6589 MMIC Wideband Medium Power Amplifier Data Sheet/Manual
Summary
The BGA6589 is a high-performance MMIC wideband medium power amplifier designed for critical RF applications, including cellular communications, IF/RF buffering, and wireless data systems. This comprehensive manual details the unit's resistive feedback Darlington configuration, ensuring large bandwidth and high accuracy across multiple frequencies (e.g., 850 MHz to 2.5 GHz). The documentation provides thorough specifications, including gain, noise figure, IP3 metrics, thermal constraints, and typical application circuitry, making it essential for RF engineers designing advanced communication products in SOT89 packages.
Manual Details
| Brand | Philips |
|---|---|
| Pages | 12 |
| File Size | 77.77 KB |
| Published | July 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Does the BGA6589 require external matching circuits?
No, the device is internally matched to 50 Ω and therefore does not require any external matching.
What precautions should I take when implementing the circuit board design?
When using via holes, utilize multiple vias per pin to effectively limit ground path induction. Also, place external components as close as possible to the MMIC.
What is the typical output power gain at 1.95 GHz?
The P load power at 1 dB compression at 1.95 GHz is typically listed as 20 dBm.
How is the amplifier supplied for current stability?
Resistor R1 acts as a bias resistor, providing DC current stability in the circuit.
