PHILIPS BFS20W NPN Medium Frequency Transistor Data Sheet

Summary

Technical specification for 查询BFS20W供应商 DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage M3D102 BFS20W NPN medium frequency transistor 1999 Apr 21 Product speciﬁcationPhilips Semiconductors Product speciﬁcation NPN medium frequ. This datasheet provides comprehensive electrical characteristics, pin configurations, thermal parameters, and application information. Includes graphs, charts, and technical data for proper component selection and implementation. Essential reference for circuit desig...

📄 Preview ‹ PAGE OF 8 ›

‹

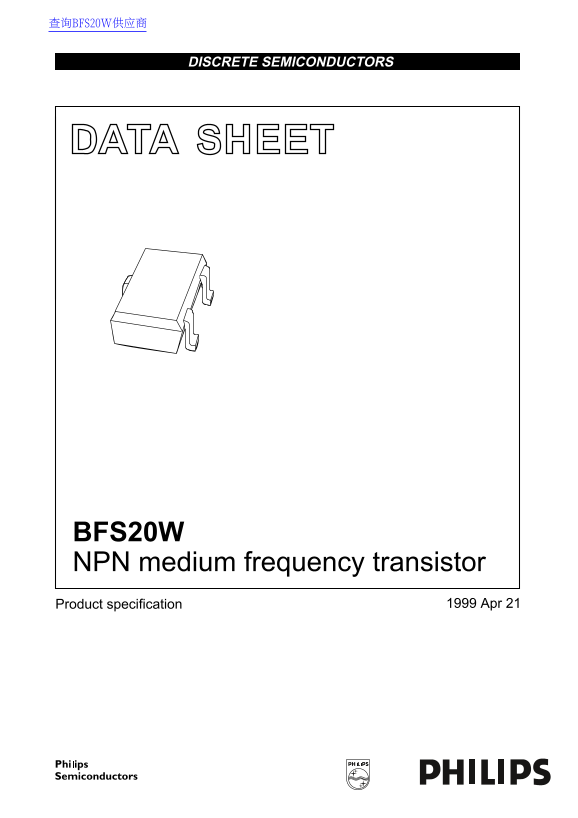

PHILIPS BFS20W NPN Medium Frequency Transistor Data Sheet - Page 1

›

Page 1 Text Content

查询BFS20W供应商

DISCRETE SEMICONDUCTORS

DATA SHEET

book, halfpage

BFS20W NPN medium frequency transistor

Product specification Apr

Page Summary Contents For PHILIPS BFS20W NPN Medium Frequency Transistor Data Sheet

Page 1 查询BFS20W供应商 DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage BFS20W NPN medium frequency transistor Product specification Apr

Page 2 Philips Semiconductors Product specification NPN medium frequency transistor BFS20W FEATURES PINNING Low current (max. 25 m A) PIN DESCRIPTION Low voltage (max. 20 V). Very low feedback capacitance (t...

Page 3 Philips Semiconductors Product specification NPN medium frequency transistor BFS20W THERMAL CHARACTERISTICS SYMBOL PARAMETER CONDITIONS VALUE UNIT Rth j-a thermal resistance from junction to ambient n...

Page 4 Philips Semiconductors Product specification NPN medium frequency transistor BFS20W MGR830 MGR831 handbook, halfpage handbook, halfpage (1) VCEsat (m V) (1) IC (m A) IC (m A) VCE V. IC/IB 10. (1) Tamb...

Page 5 Philips Semiconductors Product specification NPN medium frequency transistor BFS20W PACKAGE OUTLINE Plastic surface mounted package; 3 leads SOT323 e1 Mbp detail X scale DIMENSIONS (mm are the origina...

Page 6 Philips Semiconductors Product specification NPN medium frequency transistor BFS20W DEFINITIONS Data Sheet Status Objective specification This data sheet contains target or goal specifications for pro...

Page 7 Philips Semiconductors Product specification NPN medium frequency transistor BFS20W NOTES

Page 8 Philips Semiconductors – a worldwide company Argentina: see South America Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB, Tel. +31 82785, Fax. +31 Australia: 34 Waterloo Road, NORTH RYDE, NSW...
