DISCRETE SEMICONDUCTORS

DATA SHEET

BFG97 NPN 5 GHz wideband transistor

Product specification September 1995

File under Discrete Semiconductors, SC14

Page Summary Contents For Philips BFG97 NPN Transistor Data Sheet User's Manual

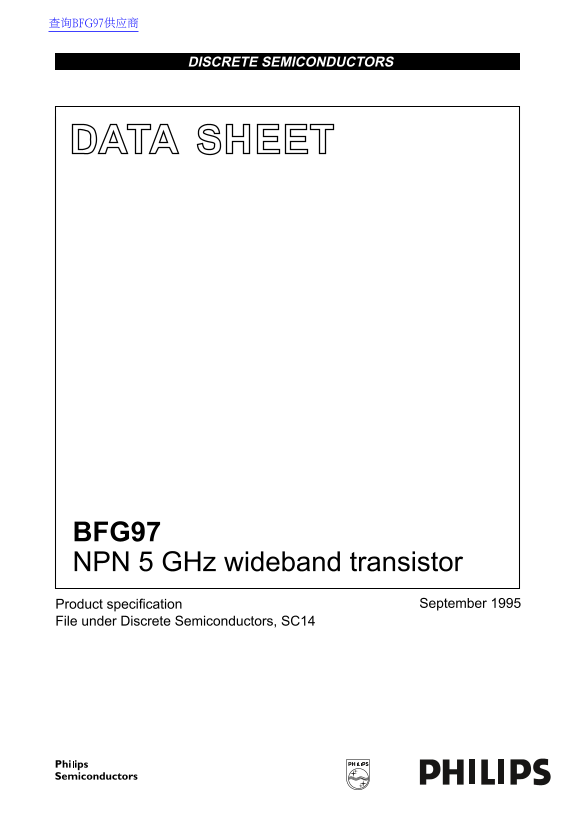

Page 1 查询BFG97供应商 DISCRETE SEMICONDUCTORS DATA SHEET BFG97 NPN 5 GHz wideband transistor Product specification September 1995 File under Discrete Semiconductors, SC14
Page 2 Philips Semiconductors Product specification NPN 5 GHz wideband transistor BFG97 DESCRIPTION PINNING NPN planar epitaxial transistor PIN DESCRIPTION mounted in a plastic SOT223 emitter envelope. It fe...
Page 3 Philips Semiconductors Product specification NPN 5 GHz wideband transistor BFG97 THERMAL RESISTANCE SYMBOL PARAMETER CONDITIONS THERMAL RESISTANCE Rth j-s thermal resistance from junction to up to Ts ...
Page 4 Philips Semiconductors Product specification NPN 5 GHz wideband transistor BFG97 handbook, full pagewidth VCC C3 output input MBB807 Fig.2 Intermodulation distortion and second order intermodulation d...
Page 5 Philips Semiconductors Product specification NPN 5 GHz wideband transistor BFG97 handbook, full pagewidth VCCVBB input output MEA971 80 mm handbook, full pagewidth 60 mm MEA969 80 mm handbook, full pa...
Page 6 Philips Semiconductors Product specification NPN 5 GHz wideband transistor BFG97 MBB797 MBB774 1.2 handbook, halfpage handbook, halfpage Ptot (W) 1.0 FE VCE 10 V; Tj °C. Fig.4 Power derating curve. Fi...
Page 7 Philips Semiconductors Product specification NPN 5 GHz wideband transistor BFG97 MBB799 MBB796 handbook, halfpage handbook, halfpage im im (d B) (d B) VCE 10 V; Vo 750 m V; f(p+q−r) 443.25 MHz; VCE 10...
Page 8 Philips Semiconductors Product specification NPN 5 GHz wideband transistor BFG97 MEA963 MEA964 handbook, halfpage handbook, halfpage POUT (W) POUT (W) VCE 6 V; f 900 MHz. VCE 7.5 V; f 900 MHz. Fig.12 ...
Page 9 Philips Semiconductors Product specification NPN 5 GHz wideband transistor BFG97 MEA957 MEA958 handbook, halfpage handbook, halfpage POUT (W) POUT (W) VCE 6 V; f 900 MHz. VCE 7.5 V; f 900 MHz. Fig.15 ...
Page 10 Philips Semiconductors Product specification NPN 5 GHz wideband transistor BFG97 MEA961 MEA962 handbook, halfpage 1.5 handbook, halfpage OUT (W) V =CE 10 V V =CE 6 V POUT (W) PIN (m W) 900 MHz. 900 MH...
Page 11 Philips Semiconductors Product specification NPN 5 GHz wideband transistor BFG97 handbook, full pagewidth 40 MHz 2 GHz MBB803 IC 70 m A; VCE 10 V; Tamb °C. Zo Ω. Fig.22 Common emitter input reflection...
Page 12 Philips Semiconductors Product specification NPN 5 GHz wideband transistor BFG97 handbook, full pagewidth 150o 2 GHz 30o 40 MHz MBB805 IC 70 m A; VCE 10 V; Tamb °C. Fig.24 Common emitter reverse trans...
Page 13 Philips Semiconductors Product specification NPN 5 GHz wideband transistor BFG97 PACKAGE OUTLINE Plastic surface mounted package; collector pad for good heat transfer; 4 leads SOT223 e1 Mbp detail X s...
Page 14 Philips Semiconductors Product specification NPN 5 GHz wideband transistor BFG97 DEFINITIONS Data Sheet Status Objective specification This data sheet contains target or goal specifications for produc...
