Philips PBSS4240T 40V Low VCEsat NPN Transistor Data Sheet
Summary
The PBSS4240T is a reliable NPN low V transistor designed for efficient switching applications. Featured in a compact SOT-23 package with high current capabilities and low saturation voltage, it functions as an excellent component replacement. This detailed datasheet provides comprehensive electrical specifications, absolute maximum ratings, and thermal guidelines, making it ideal for engineers designing robust circuits such as battery management systems, DC/DC converters, and other heavy-duty power drivers.

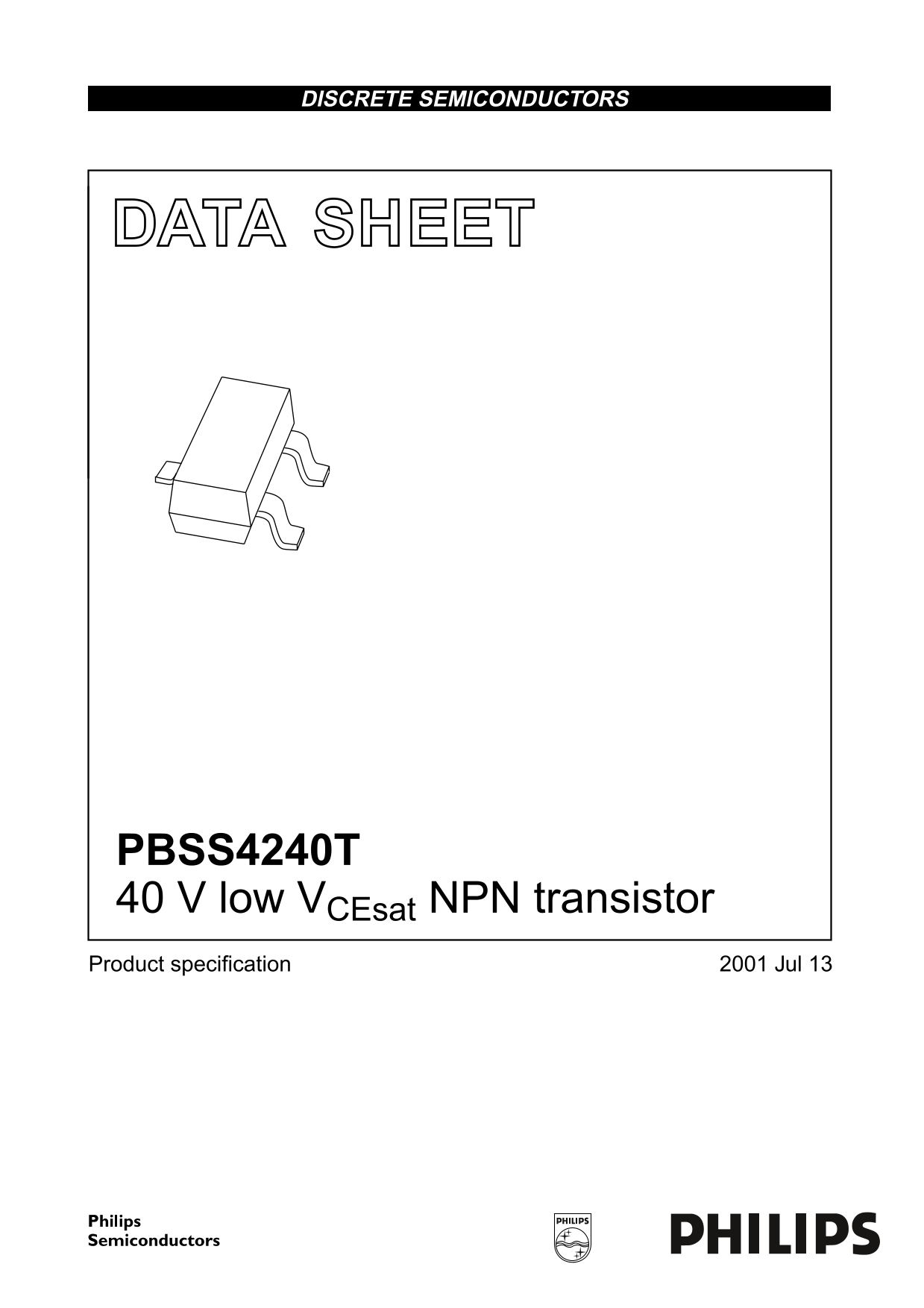

Page 1 Text Content
DISCRETE SEMICONDUCTORS
DATA SHEET
PBSS4240T V low VCEsat NPN transistor Product specification Jul
Page Summary Contents For Philips PBSS4240T 40V Low VCEsat NPN Transistor Data Sheet
Manual Details
| Brand | Philips |
|---|---|
| Pages | 8 |
| File Size | 51.17 KB |
| Published | June 22, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the pin configuration for PBSS4240T?
Pin 1: base, Pin 2: emitter, Pin 3: collector.
What applications is the PBSS4240T transistor suitable for?
Supply line switching, battery management, DC/DC converters, strobe flash units.
What is the maximum DC collector current?
2 A.
Can PBSS4240T replace SOT89/SOT223 transistors?
Yes, it's designed as a replacement for standard packaged transistors.
What is the max power dissipation?
300 mW or 480 mW depending on PCB mount style.
