Philips PBSS5140D 40V Low VCEsat PNP Transistor Data Sheet Owner's Manual
Summary
Product specification for Philips (NXP) PBSS5140D 40V low VCEsat PNP transistor in SC-74 (SOT457) plastic package featuring low collector-emitter saturation voltage for high-efficiency power switching. Features high current capability (-1A DC collector current, -2A peak collector current), improved device reliability due to reduced heat generation, and -500mΩ equivalent on-resistance (RCEsat). Absolute maximum ratings include -40V collector-base voltage (VCBO), -40V collector-emitter voltage (VC
Page 1 Text Content
查询PBSS5140D供应商
DISCRETE SEMICONDUCTORS
DATA SHEET
halfpage
PBSS5140D V low VCEsat PNP transistor Product specification Nov
Page Summary Contents For Philips PBSS5140D 40V Low VCEsat PNP Transistor Data Sheet Owner's Manual
Page 1

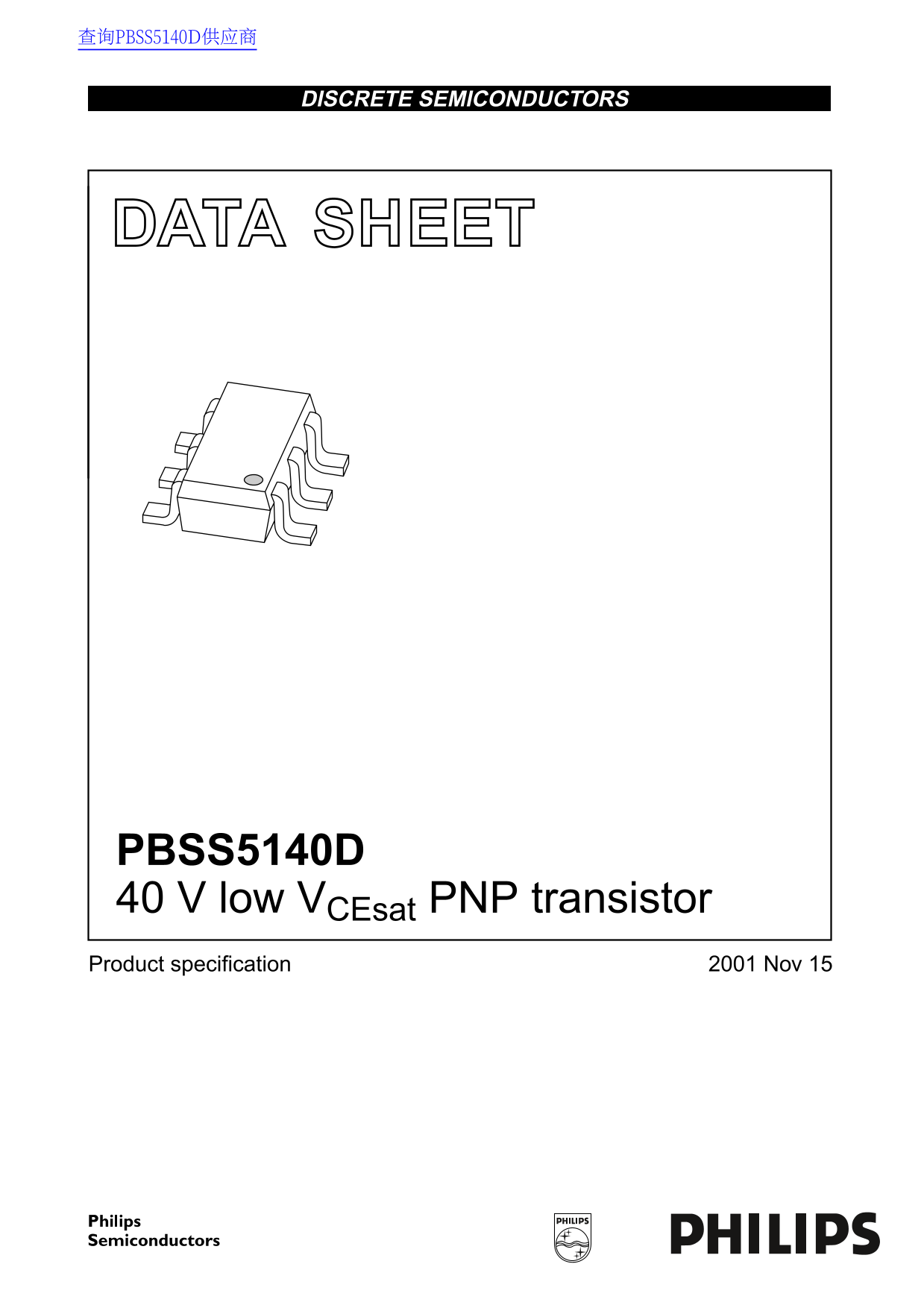

查询PBSS5140D供应商 DISCRETE SEMICONDUCTORS DATA SHEET halfpage PBSS5140D V low VCEsat PNP transistor Product specification Nov
Page 2
Philips Semiconductors Product specification V low VCEsat PNP transistor PBSS5140D FEATURES QUICK REFERENCE DATA Low collector-emitter saturation voltage SYMBOL PARAMETER MAX. UNIT High current capabi...
Page 3
Philips Semiconductors Product specification V low VCEsat PNP transistor PBSS5140D THERMAL CHARACTERISTICS SYMBOL PARAMETER CONDITIONS VALUE UNIT Rth j-a thermal resistance from junction to ambient in...
Page 4
Philips Semiconductors Product specification V low VCEsat PNP transistor PBSS5140D MHC088 MHC089 handbook, halfpage handbook, halfpage h FE IC (m A) IC (m A) VCE −5 V. VCE −5 V. (1) Tamb °C. (1) Tamb ...
Page 5
Philips Semiconductors Product specification V low VCEsat PNP transistor PBSS5140D MHC092 handbook, halfpage f T (MHz) IC (m A) VCE V. Fig.6 Transition frequency as a function of collector current.
Page 6
Philips Semiconductors Product specification V low VCEsat PNP transistor PBSS5140D PACKAGE OUTLINE Plastic surface mounted package; 6 leads SOT457 pin 1 index detail X scale DIMENSIONS (mm are the ori...
Page 7
Philips Semiconductors Product specification V low VCEsat PNP transistor PBSS5140D DATA SHEET STATUS PRODUCT DATA SHEET STATUS(1) DEFINITIONS STATUS(2) Objective data Development This data sheet conta...
Page 8
Philips Semiconductors – a worldwide company Contact information For additional information please visit http://www.semiconductors.philips.com. Fax: +31 For sales offices addresses send e-mail to: sal...
