Philips PBSS5240Y 40V Low Vce(Sat) PNP Transistor Data Sheet
Summary
The PBSS5240Y is a high-performance PNP low V transistor packaged in SOT363/SC-88, designed for reliable power switching applications. This technical datasheet provides comprehensive specifications and operating parameters crucial for electrical design, including absolute maximum ratings, thermal characteristics, key electrical curves (V_CEO, I_C), and detailed pin configurations. It is essential reference material for electronics engineers and designers building sophisticated circuits such as battery management systems, supply line switching, and DC/DC converters requiring high-current handling.
Page 1 Text Content
查询PBSS5240Y供应商
DISCRETE SEMICONDUCTORS
DATA SHEET
MBD128
PBSS5240Y 40 V low VCEsat PNP transistor Product specification Feb Supersedes data of 2001 Oct 24
Page Summary Contents For Philips PBSS5240Y 40V Low Vce(Sat) PNP Transistor Data Sheet
Page 1

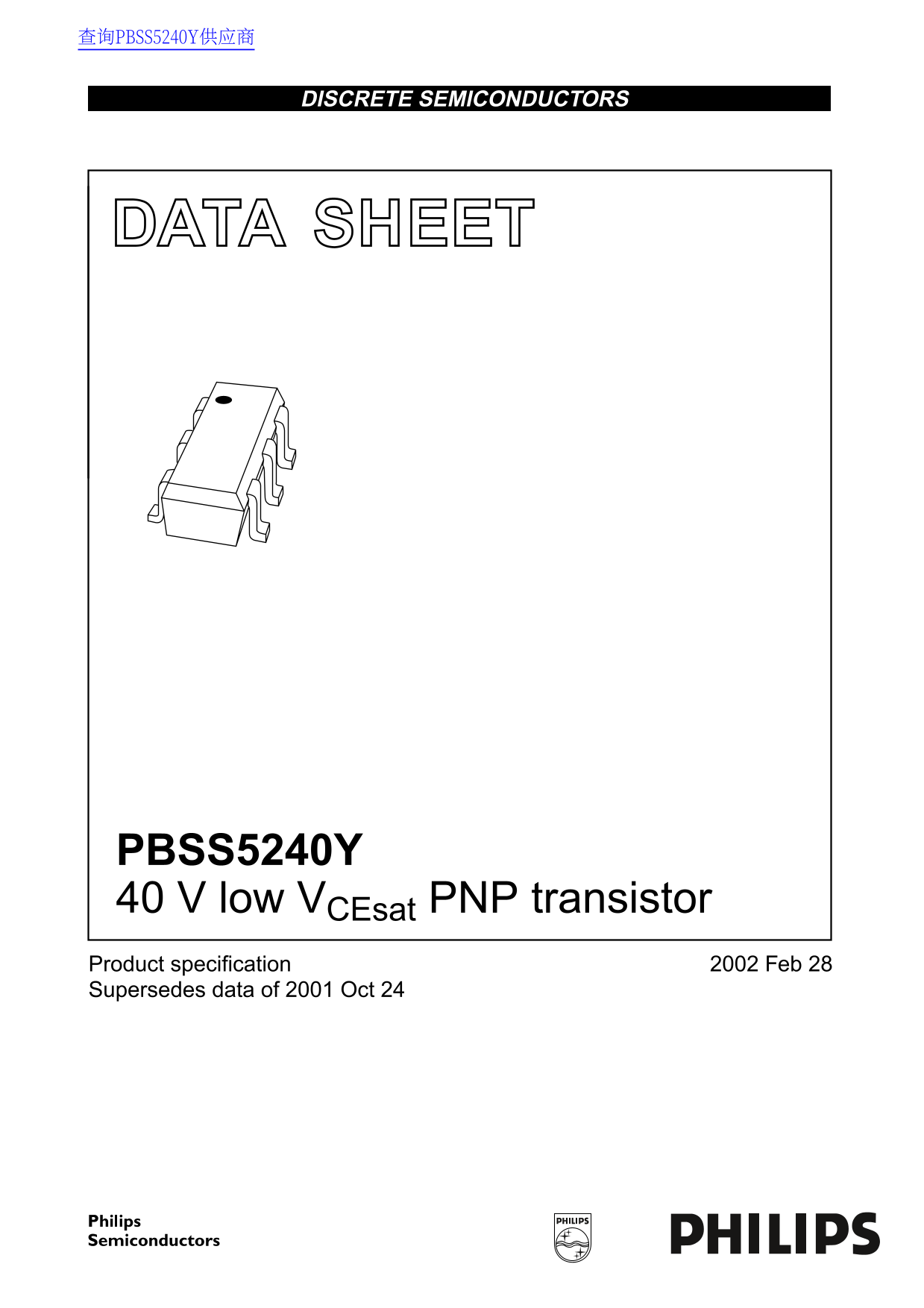

查询PBSS5240Y供应商 DISCRETE SEMICONDUCTORS DATA SHEET MBD128 PBSS5240Y 40 V low VCEsat PNP transistor Product specification Feb Supersedes data of 2001 Oct 24
Page 2
Philips Semiconductors Product specification 40 V low VCEsat PNP transistor PBSS5240Y FEATURES QUICK REFERENCE DATA Low collector-emitter saturation voltage SYMBOL PARAMETER MAX. UNIT High current cap...
Page 3
Philips Semiconductors Product specification 40 V low VCEsat PNP transistor PBSS5240Y LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 60134). SYMBOL PARAMETER CONDITIONS MIN...
Page 4
Philips Semiconductors Product specification 40 V low VCEsat PNP transistor PBSS5240Y CHARACTERISTICS Tamb °C unless otherwise specified. SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT ICBO collector-base...
Page 5
Philips Semiconductors Product specification 40 V low VCEsat PNP transistor PBSS5240Y PACKAGE OUTLINE Plastic surface mounted package; 6 leads SOT363 pin 1 index e1 BMbp Lp detail X scale DIMENSIONS (...
Page 6
Philips Semiconductors Product specification 40 V low VCEsat PNP transistor PBSS5240Y DATA SHEET STATUS PRODUCT DATA SHEET STATUS(1) DEFINITIONS STATUS(2) Objective data Development This data sheet co...
Page 7
Philips Semiconductors Product specification 40 V low VCEsat PNP transistor PBSS5240Y NOTES
Page 8
Philips Semiconductors – a worldwide company Contact information For additional information please visit http://www.semiconductors.philips.com. Fax: +31 For sales offices addresses send e-mail to: sal...
