Philips PBSS3540M 40V, 0.5A PNP Low VCEsat (BISS) Transistor Data Manual

Summary

This comprehensive technical datasheet describes the PBSS3540M, a low voltage PNP BISS NPN transistor package (SOT883). The manual provides detailed specifications, including absolute maximum ratings, electrical characteristics, and thermal information necessary for reliable circuit design. It is essential reading for electronics engineers and designers incorporating power management or peripheral driving applications, such as DC-DC converters or LED control circuits.

📄 Preview ‹ PAGE OF 9 ›

‹

Philips PBSS3540M 40V, 0.5A PNP Low VCEsat (BISS) Transistor Data Manual - Page 1

›

Page 1 Text Content

查询PBSS3540M供应商

DISCRETE SEMICONDUCTORS

DATA SHEET

BOTTOM VIEW

PBSS3540M V, 0.5 PNP low VCEsat (BISS) transistor Product specification Aug

Page Summary Contents For Philips PBSS3540M 40V, 0.5A PNP Low VCEsat (BISS) Transistor Data Manual

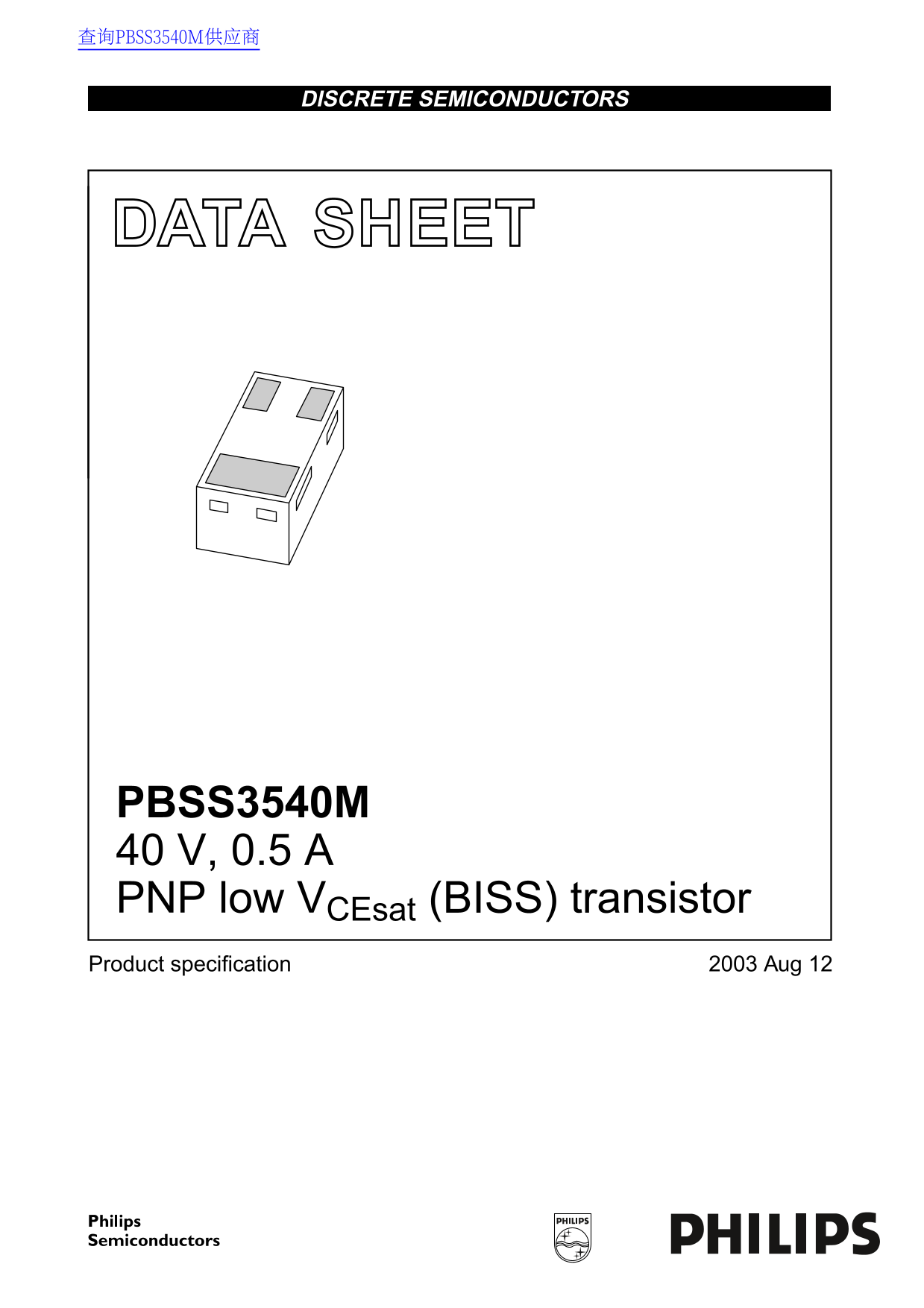

Page 1 查询PBSS3540M供应商 DISCRETE SEMICONDUCTORS DATA SHEET BOTTOM VIEW PBSS3540M V, 0.5 PNP low VCEsat (BISS) transistor Product specification Aug

Page 2 Philips Semiconductors Product specification PBSS3540M PNP low VCEsat (BISS) transistor FEATURES QUICK REFERENCE DATA Low collector-emitter saturation voltage VCEsat SYMBOL PARAMETER MAX. UNIT High co...

Page 3 Philips Semiconductors Product specification PBSS3540M PNP low VCEsat (BISS) transistor LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 60134). SYMBOL PARAMETER CONDITIONS M...

Page 4 Philips Semiconductors Product specification PBSS3540M PNP low VCEsat (BISS) transistor CHARACTERISTICS Tamb °C unless otherwise specified. SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT ICBO collect...

Page 5 Philips Semiconductors Product specification PBSS3540M PNP low VCEsat (BISS) transistor MLE202 MLE203 handbook, halfpage handbook, halfpage h FE VBE IC (m A) IC (m A) VCE −2 V. VCE −2 V. (1) Tamb °C. ...

Page 6 Philips Semiconductors Product specification PBSS3540M PNP low VCEsat (BISS) transistor MLE200 MLE201 −1200 handbook, halfpage handbook, halfpage RCEsat IC (m A) VCE (V) Tamb °C. IC/IB 20. (1) IB −40 ...

Page 7 Philips Semiconductors Product specification PBSS3540M PNP low VCEsat (BISS) transistor PACKAGE OUTLINE Leadless ultra small plastic package; 3 solder lands; body 1.0 x 0.6 x 0.5 mm SOT883 0.5 1 mm sc...

Page 8 Philips Semiconductors Product specification PBSS3540M PNP low VCEsat (BISS) transistor DATA SHEET STATUS DATA SHEET PRODUCT LEVEL DEFINITION STATUS(1) STATUS(2)(3) Objective data Development This dat...

Page 9 Philips Semiconductors – a worldwide company Contact information For additional information please visit http://www.semiconductors.philips.com. Fax: +31 For sales offices addresses send e-mail to: sal...

Manual Details

Brand	Philips
Pages	9
File Size	65.67 KB
Published	July 12, 2026

5 views

Enter the captcha to get the download link:

Frequently Asked Questions

What are the recommended soldering guidelines for this transistor?

Reflow soldering is the only recommended soldering method.

What voltage range does this component handle?

The maximum collector-emitter voltage (VCEO) is −40 V.

Where can I use this PNP low V transistor?

It is suitable for power management (DC-DC converter, battery charger) and peripheral driving (lamps, LEDs, relays).

If the device is mounted on a standard FR4 PCB, what is the maximum total power dissipation?

The typical limit, under specific mounting conditions (Notes 1, 3, and 4), allows for 430 mW at ambient temperature.
