Philips PBSS5480X 80 V, 4 A PNP low VCEsat (BISS) Transistor Data Manual
Summary
This datasheet documents the Philips PBSS5480X PNP low VCEsat (BISS) transistor rated for -80V collector-emitter voltage and -4A continuous DC collector current with -10A peak capability in a SOT89 (SC-62) surface-mount plastic package. The BISS technology delivers high current gain and low saturation voltage at high current operation, achieving an equivalent on-resistance of just 75mΩ for high efficiency with reduced heat generation. The NPN complement is the PBSS4480X. Key specifications inclu
Page 1 Text Content
查询PBSS5480X供应商
DISCRETE SEMICONDUCTORS
DATA SHEET
book, halfpage

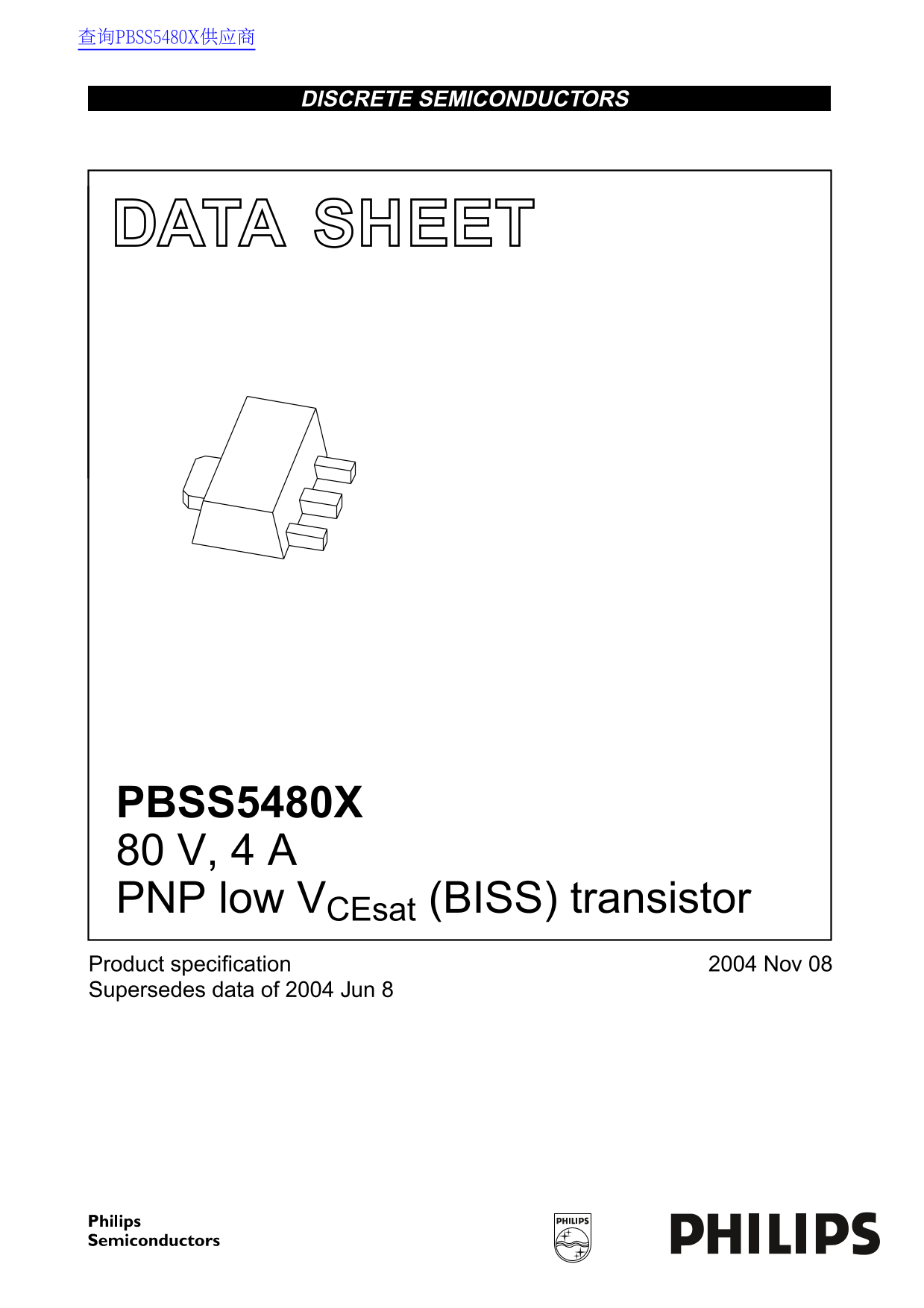

PBSS5480X 80 V, 4 A PNP low VCEsat (BISS) transistor Product specification 2004 Nov 08 Supersedes data of 2004 Jun 8
