Philips PBSS5250T 50 V, 2 A PNP low VCEsat (BISS) Transistor Data Manual & Specification Guide
Summary
The PBSS5250T is a specialized PNP BISS transistor designed for low-voltage, high-efficiency switching applications in an SOT23 package. Ideal for circuit designers creating DC/DC converters, power management systems, and supply line switching circuits, offering a cost-effective alternative to MOSFETs. This comprehensive manual provides all necessary technical specifications, including maximum ratings, detailed thermal characteristics, electrical performance parameters (like low $V_{CEsat}$ and minimum equivalent resistance), and application guidelines required for proper circuit integration and optimized performance.
Page 1 Text Content
查询PBSS5250T供应商
DISCRETE SEMICONDUCTORS

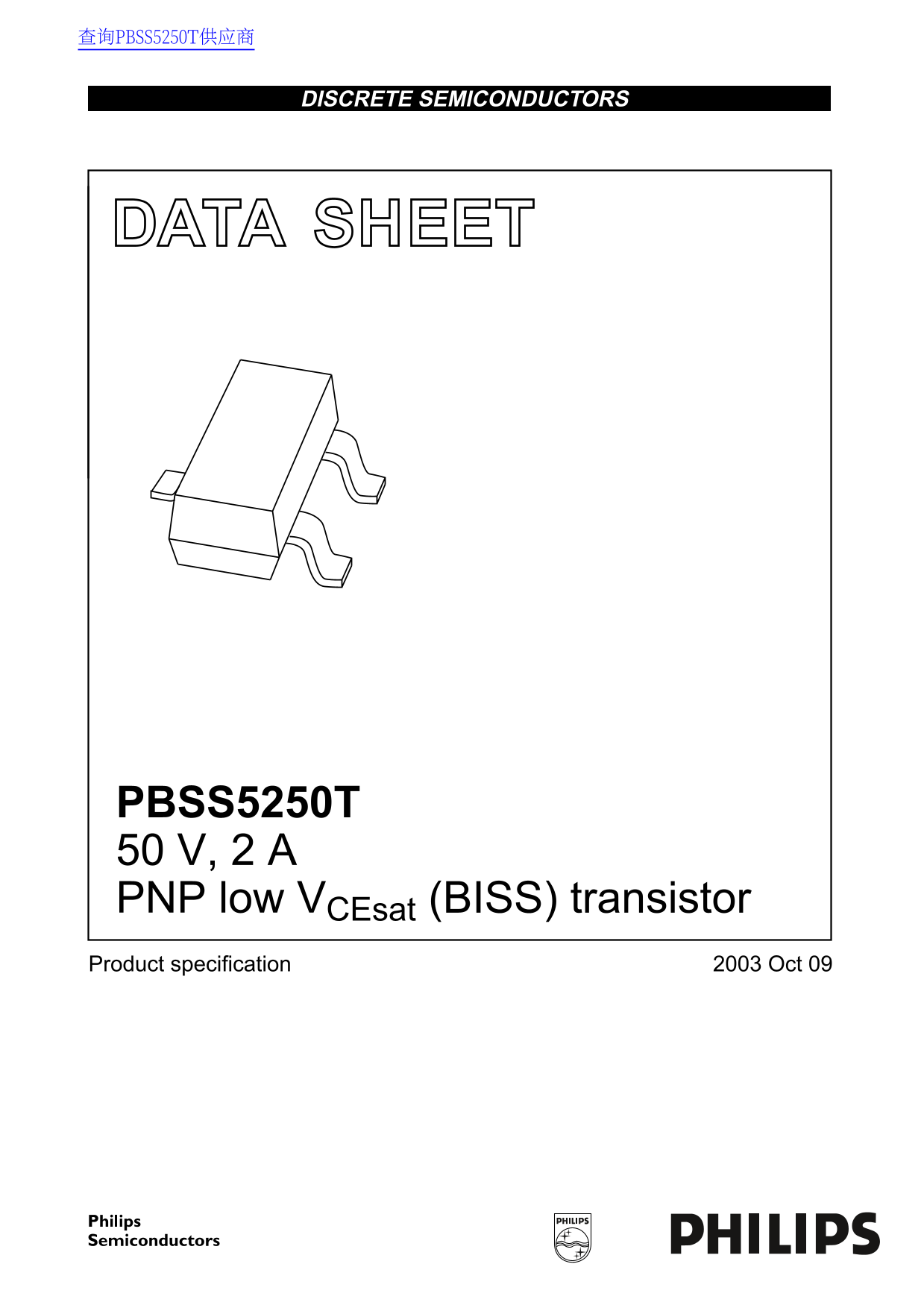

DATA SHEET ge
PBSS5250T V, 2 PNP low VCEsat (BISS) transistor Product specification Oct
Page Summary Contents For Philips PBSS5250T 50 V, 2 A PNP low VCEsat (BISS) Transistor Data Manual & Specification Guide
Manual Details
| Brand | Philips |
|---|---|
| Pages | 8 |
| File Size | 49.00 KB |
| Published | July 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What types of electronics circuits is this transistor recommended for?
It is suitable for power management, DC/DC converters, supply line switching, battery chargers, and LCD backlighting.
What are the maximum voltage and current ratings for this component?
The maximum rated collector-emitter voltage ($V_{CEO}$) is -50 V, supporting a continuous collector current of 2 A.
How is its thermal efficiency defined regarding heat generation?
It offers higher efficiency resulting in less heat generation, demonstrated by an equivalent on-resistance ($R_{CEsat}$) of 150 mΩ.
What is the physical format or package type of the PBSS5250T component?
It utilizes a plastic surface mounted package with three leads, specifically identified as SOT23.
