Philips PBSS5320X 20V, 3A PNP Low VCEsat (BISS) Transistor Data Manual
Summary
Discover the PBSS5320X, a high-performance low V PNP transistor designed for demanding power management applications. This component features excellent current handling and superior thermal stability in an efficient SOT89 package. The manual provides comprehensive technical data sheets covering electrical limits, detailed thermal characteristics (including ambient and pulsed testing), and diverse application guidance—ideal for engineers designing DC/DC converters, battery chargers, or peripheral drivers such as LEDs and relays. Essential documentation for reliable power electronics design.
Page 1 Text Content
查询PBSS5320X供应商
DISCRETE SEMICONDUCTORS
DATA SHEET
book, halfpage

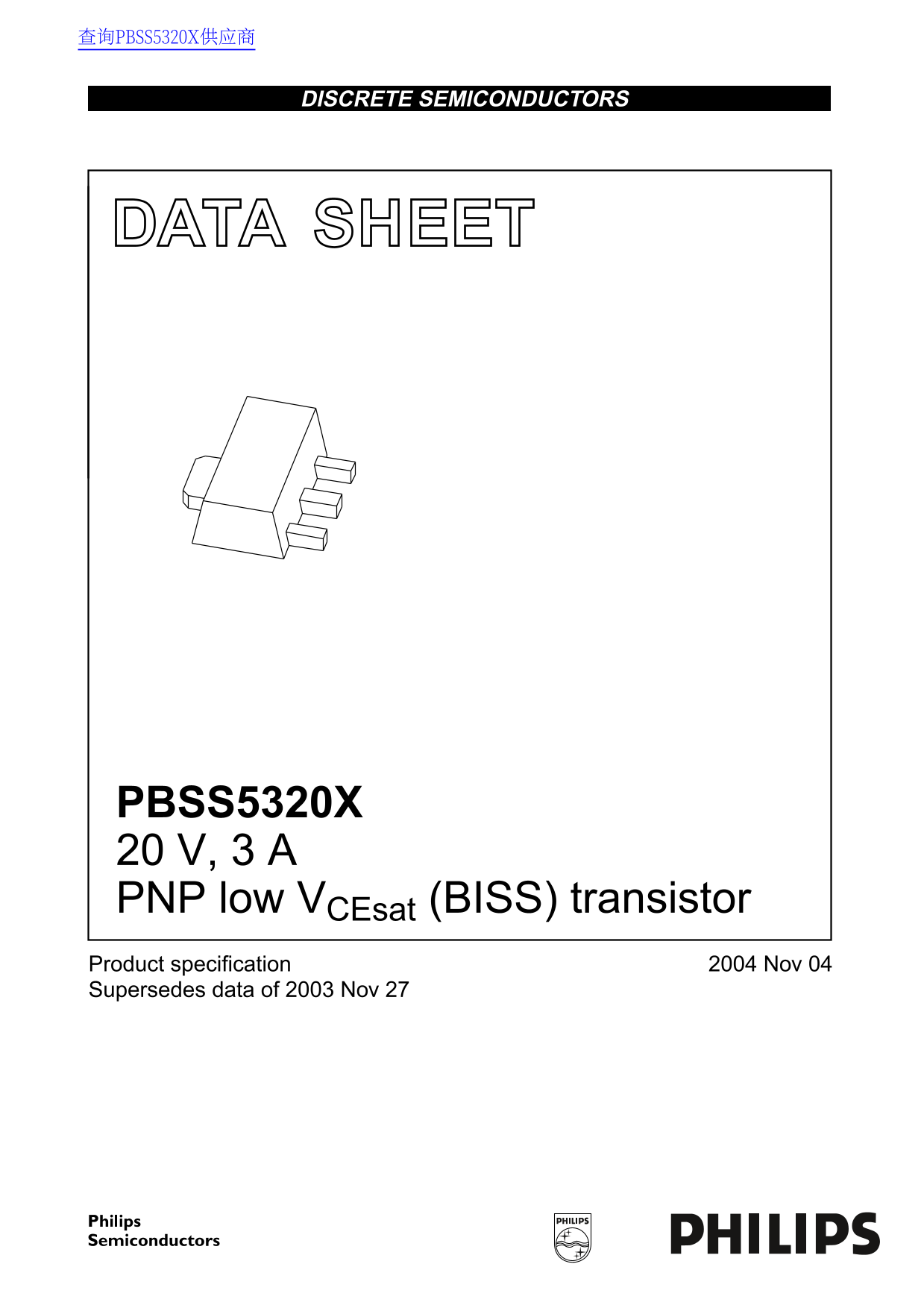

PBSS5320X 20 V, 3 A PNP low VCEsat (BISS) transistor Product specification Nov Supersedes data of 2003 Nov 27
Page Summary Contents For Philips PBSS5320X 20V, 3A PNP Low VCEsat (BISS) Transistor Data Manual
Manual Details
| Brand | Philips |
|---|---|
| Pages | 12 |
| File Size | 109.58 KB |
| Published | July 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum continuous current this transistor can handle?
The collector current (IC) max rating is -3A, with a peak capability of -5A.
How is device thermal performance affected by PCB design?
Yes; the thermal resistance varies depending on whether you use standard footprints or special copper mounting pads on FR4 or ceramic PCBs.
What applications are recommended for this low V PNP transistor?
It can be used in power management (like DC/DC converters and battery chargers) or as a peripheral driver for lamps and LEDs.
Which model serves as the complementary NPN device?
The NPN complement to PBSS5320X is PBSS4320X.
