Philips PBSS3540F Low VCEsat PNP Transistor Data Sheet User Manual
Summary
The PBSS3540F is a low-voltage PNP transistor housed in an SC-89 (SOT490) package, designed for general switching and driving applications. This manual provides comprehensive technical details, including absolute maximum ratings, thermal performance data, and crucial electrical parameters like saturation voltage ($V_{CE(sat)}$) and high current handling capabilities. It is ideal for engineers designing battery-powered electronics, such as mobile phones and audio frequency circuits, requiring reliable performance in demanding operational environments up to 40V.
Page 1 Text Content
查询PBSS3540F供应商
DISCRETE SEMICONDUCTORS
DATA SHEET
PBSS3540F 40 V low VCEsat PNP transistor Product specification Jul
Page Summary Contents For Philips PBSS3540F Low VCEsat PNP Transistor Data Sheet User Manual
Page 1

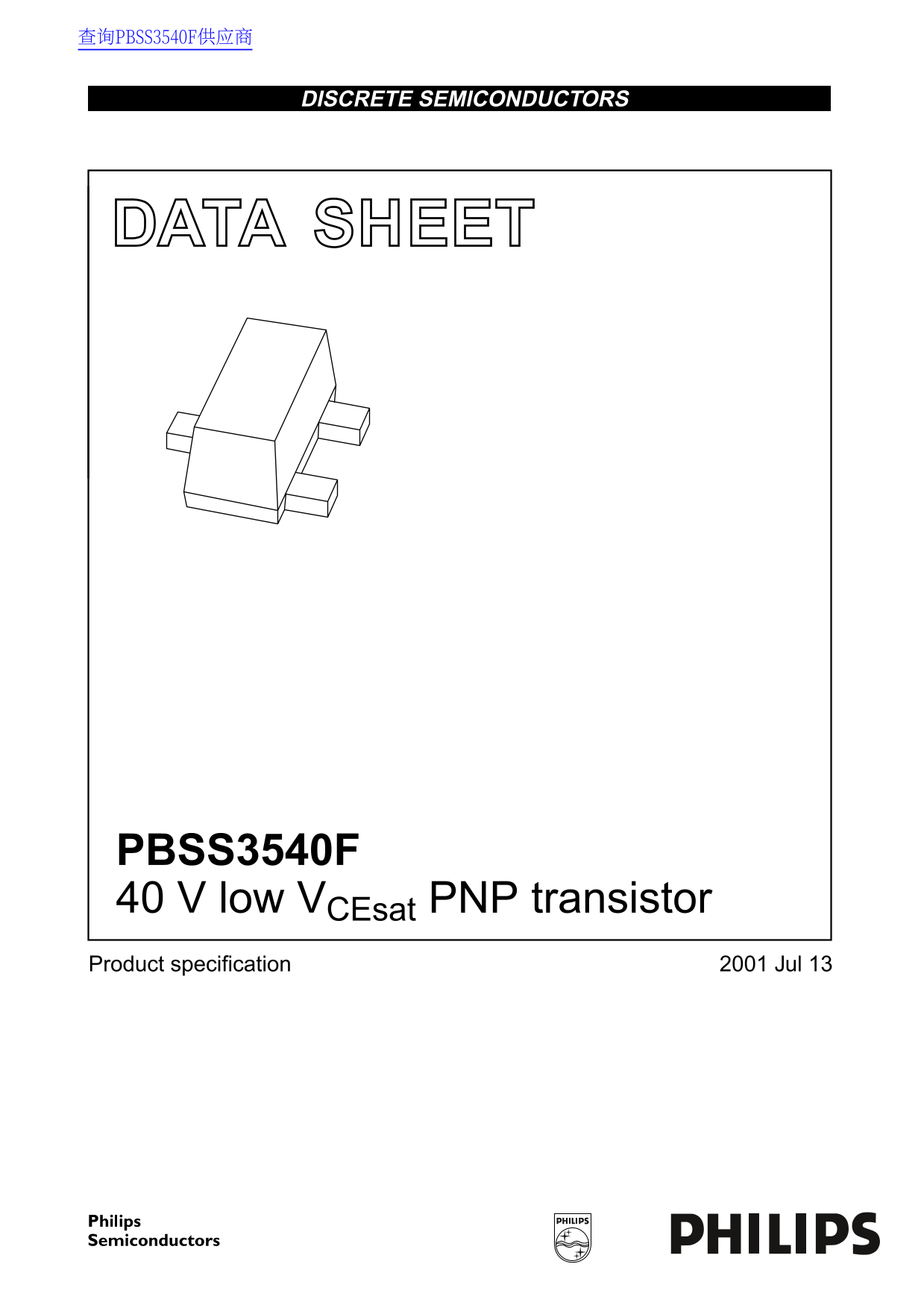

查询PBSS3540F供应商 DISCRETE SEMICONDUCTORS DATA SHEET PBSS3540F 40 V low VCEsat PNP transistor Product specification Jul
Page 2
Philips Semiconductors Product specification 40 V low VCEsat PNP transistor PBSS3540F FEATURES QUICK REFERENCE DATA Low collector-emitter saturation voltage SYMBOL PARAMETER MAX. UNIT High current cap...
Page 3
Philips Semiconductors Product specification 40 V low VCEsat PNP transistor PBSS3540F THERMAL CHARACTERISTICS SYMBOL PARAMETER CONDITIONS VALUE UNIT Rth j-a thermal resistance from junction to ambient...
Page 4
Philips Semiconductors Product specification 40 V low VCEsat PNP transistor PBSS3540F PACKAGE OUTLINE Plastic surface mounted package; 3 leads SOT490 e1 bp detail X scale DIMENSIONS (mm are the origin...
Page 5
Philips Semiconductors Product specification 40 V low VCEsat PNP transistor PBSS3540F DATA SHEET STATUS PRODUCT DATA SHEET STATUS(1) DEFINITIONS STATUS(2) Objective data Development This data sheet co...
Page 6
Philips Semiconductors Product specification 40 V low VCEsat PNP transistor PBSS3540F NOTES
Page 7
Philips Semiconductors Product specification 40 V low VCEsat PNP transistor PBSS3540F NOTES
Page 8
Philips Semiconductors – a worldwide company Argentina: see South America Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB, Tel. +31 82785, Fax. +31 Australia: 3 Figtree Drive, HOMEBUSH, NSW 21...
