Philips PBSS5350S Low VCEsat PNP Transistor Data Manual & Specifications

Summary

The PBSS5350S is a low V, high power PNP transistor housed in an SOT54 package. This component features ultra-low collector-emitter saturation voltage and excellent thermal stability up to 830 mW. The accompanying manual provides comprehensive electrical, thermal, and operational specifications necessary for reliable design implementation. It is optimized for medium-power switching applications, making it ideal for use in linear regulators, DC/DC converters, supply line switches, battery management systems, and heavy duty motor/lamp drivers.

📄 Preview ‹ PAGE OF 8 ›

‹

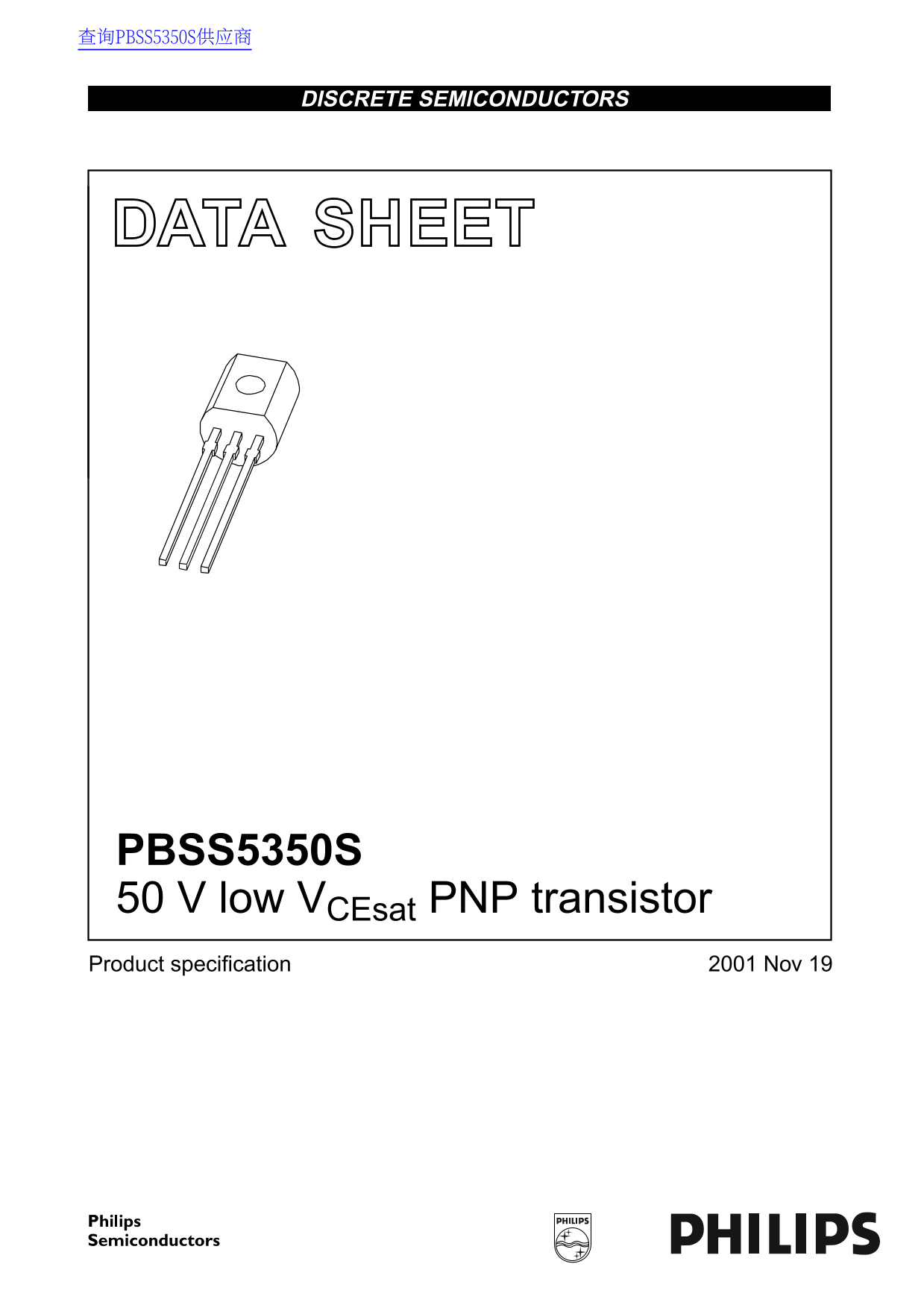

Philips PBSS5350S Low VCEsat PNP Transistor Data Manual & Specifications - Page 1

›

Page 1 Text Content

查询PBSS5350S供应商

DISCRETE SEMICONDUCTORS

DATA SHEET alfpage

PBSS5350S V low VCEsat PNP transistor Product specification Nov

Page Summary Contents For Philips PBSS5350S Low VCEsat PNP Transistor Data Manual & Specifications

Page 1 查询PBSS5350S供应商 DISCRETE SEMICONDUCTORS DATA SHEET alfpage PBSS5350S V low VCEsat PNP transistor Product specification Nov

Page 2 Philips Semiconductors Product specification V low VCEsat PNP transistor PBSS5350S FEATURES QUICK REFERENCE DATA High power dissipation (830 m W) SYMBOL PARAMETER MAX. UNIT Ultra low collector-emitter...

Page 3 Philips Semiconductors Product specification V low VCEsat PNP transistor PBSS5350S THERMAL CHARACTERISTICS SYMBOL PARAMETER CONDITIONS VALUE UNIT Rth j-a thermal resistance from junction to in free ai...

Page 4 Philips Semiconductors Product specification V low VCEsat PNP transistor PBSS5350S MLD751 MLD752 handbook, halfpage handbook, halfpage h FE VBE (V) IC (m A) IC (m A) VCE −2 V. VCE −2 V. (1) Tamb °C. (...

Page 5 Philips Semiconductors Product specification V low VCEsat PNP transistor PBSS5350S MLD755 MLD756 handbook, halfpage handbook, halfpage (1) (2) (3) IC IC VCE (V) VCE (V) Tamb °C. Tamb °C. (1) IB −3.96 ...

Page 6 Philips Semiconductors Product specification V low VCEsat PNP transistor PBSS5350S PACKAGE OUTLINE Plastic single-ended leaded (through hole) package; 3 leads SOT54 2.5 5 mm scale DIMENSIONS (mm are t...

Page 7 Philips Semiconductors Product specification V low VCEsat PNP transistor PBSS5350S DATA SHEET STATUS PRODUCT DATA SHEET STATUS(1) DEFINITIONS STATUS(2) Objective data Development This data sheet conta...

Page 8 Philips Semiconductors – a worldwide company Contact information For additional information please visit http://www.semiconductors.philips.com. Fax: +31 For sales offices addresses send e-mail to: sal...
