Philips PBSS4240V 40 V Low VCEsat NPN Transistor Data Sheet
Summary
This datasheet details the PBSS4240V, a 40 V low saturation voltage NPN transistor housed in a SOT666 package. Designed for power management and peripheral driving, it features high current capability and efficiency, making it ideal for DC-DC converters, battery chargers, and inductive load applications.
Page 1 Text Content
查询PBSS4240V供应商
DISCRETE SEMICONDUCTORS
DATA SHEET
PBSS4240V 40 V low VCEsat NPN transistor Product specification Jan
Page Summary Contents For Philips PBSS4240V 40 V Low VCEsat NPN Transistor Data Sheet
Page 1

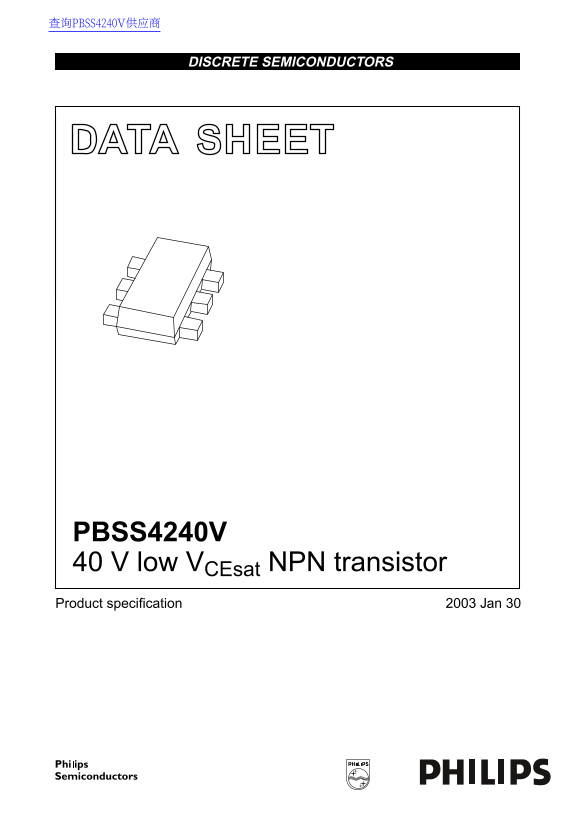

查询PBSS4240V供应商 DISCRETE SEMICONDUCTORS DATA SHEET PBSS4240V 40 V low VCEsat NPN transistor Product specification Jan
Page 2
Philips Semiconductors Product specification 40 V low VCEsat NPN transistor PBSS4240V FEATURES QUICK REFERENCE DATA Low collector-emitter saturation voltage VCEsat SYMBOL PARAMETER MAX. UNIT High coll...
Page 3
Philips Semiconductors Product specification 40 V low VCEsat NPN transistor PBSS4240V LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 60134). SYMBOL PARAMETER CONDITIONS MIN...
Page 4
Philips Semiconductors Product specification 40 V low VCEsat NPN transistor PBSS4240V CHARACTERISTICS Tamb °C unless otherwise specified. SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT ICBO collector...
Page 5
Philips Semiconductors Product specification 40 V low VCEsat NPN transistor PBSS4240V MHC471 MHC472 handbook, halfpage handbook, halfpage h FE VBE IC (m A) IC (m A) VCE V. VCE V. (1) Tamb °C. (1) Tamb...
Page 6
Philips Semiconductors Product specification 40 V low VCEsat NPN transistor PBSS4240V MHC475 MHC476 handbook, halfpage (1) handbook, halfpage IC (2) RCEsat VCE (V) IC (m A) Tamb °C. (1) IB m A. (5) IB...
Page 7
Philips Semiconductors Product specification 40 V low VCEsat NPN transistor PBSS4240V PACKAGE OUTLINE Plastic surface mounted package; 6 leads SOT666 pin 1 index e1 bp detail X scale DIMENSIONS (mm ar...
Page 8
Philips Semiconductors Product specification 40 V low VCEsat NPN transistor PBSS4240V DATA SHEET STATUS DATA SHEET PRODUCT LEVEL DEFINITION STATUS(1) STATUS(2)(3) Objective data Development This data ...
Page 9
Philips Semiconductors Product specification 40 V low VCEsat NPN transistor PBSS4240V NOTES
Page 10
Philips Semiconductors Product specification 40 V low VCEsat NPN transistor PBSS4240V NOTES
Page 11
Philips Semiconductors Product specification 40 V low VCEsat NPN transistor PBSS4240V NOTES
Page 12
Philips Semiconductors – a worldwide company Contact information For additional information please visit http://www.semiconductors.philips.com. Fax: +31 For sales offices addresses send e-mail to: sal...
