Philips PBSS8110X 100V, 1A NPN Low VCEsat (BISS) Transistor Data Manual
Summary
100V, 1A NPN low VCEsat (BISS) transistor in SOT89 package for automotive and industrial switching. The Philips PBSS8110X features low saturation with 165mohm RCEsat at 1A, enabling high efficiency and reduced heat. Handles 100V with 1A continuous, 3A peak. PNP complement: PBSS9110X. Applications: automotive 42V, telecom, industrial, drivers for lamps, LEDs, relays, motors, DC-DC converters. SOT89 collector pad enhances heat transfer. Targeted at automotive and industrial circuit designers.
Page 1 Text Content
查询PBSS8110X-1供应商

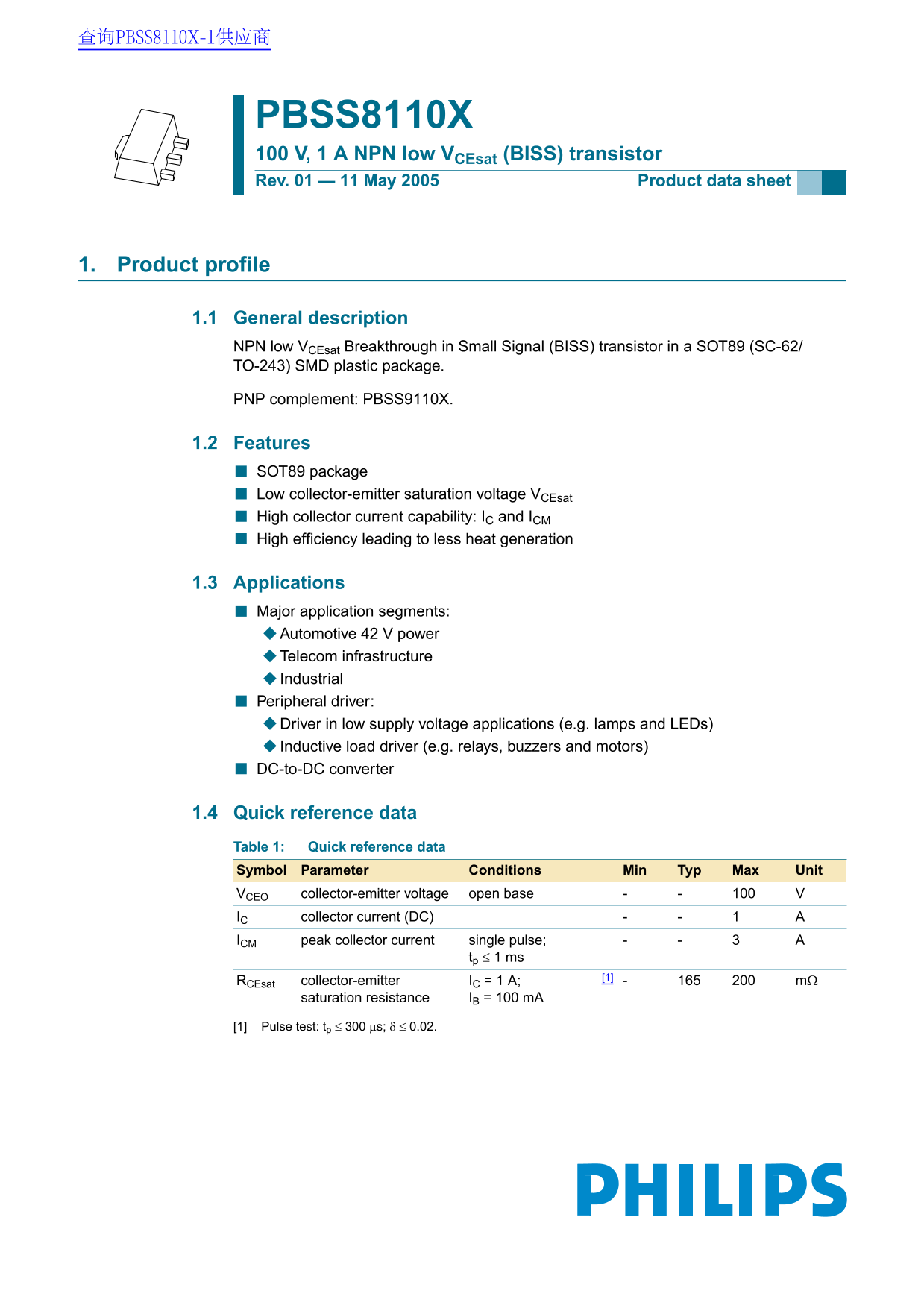

PBSS8110X 100 V, 1 A NPN low VCEsat (BISS) transistor Rev. 01 — 11 May 2005 Product data sheet
1. Product profile
1.1 General description NPN low VCEsat Breakthrough in Small Signal (BISS) transistor in a SOT89 (SC-62/ TO-243) SMD plastic package. PNP complement: PBSS9110X.
1.2 Features SOT89 package Low collector-emitter saturation voltage VCEsat High collector current capability: IC and ICM High efficiency leading to less heat generation
1.3 Applications Major application segments:
Automotive 42 V power Telecom infrastructure Industrial Peripheral driver: Driver in low supply voltage applications (e.g. lamps and LEDs) Inductive load driver (e.g. relays, buzzers and motors) DC-to-DC converter
1.4 Quick reference data Table 1: Quick reference data Symbol Parameter Conditions Min Typ Max Unit
VCEO collector-emitter voltage open base IC collector current (DC) ICM peak collector current single pulse;
tp ms
RCEsat collector-emitter IC A; mΩ saturation resistance IB m A
[1] Pulse test: tp ≤ 300 µs; ≤ 0.02.
