Philips PBSS4160T NPN Low VCEsat (BISS) Transistor Data Manual

Summary

This datasheet provides complete technical specifications for the PBSS4160T, a 60V, 1A NPN low VCEsat (BISS) transistor in a SOT23 surface-mount package. It details electrical characteristics, thermal ratings, and application notes for power management, DC-DC conversion, supply line switching, and peripheral driving in automotive, telecom, and industrial designs.

📄 Preview ‹ PAGE OF 10 ›

‹

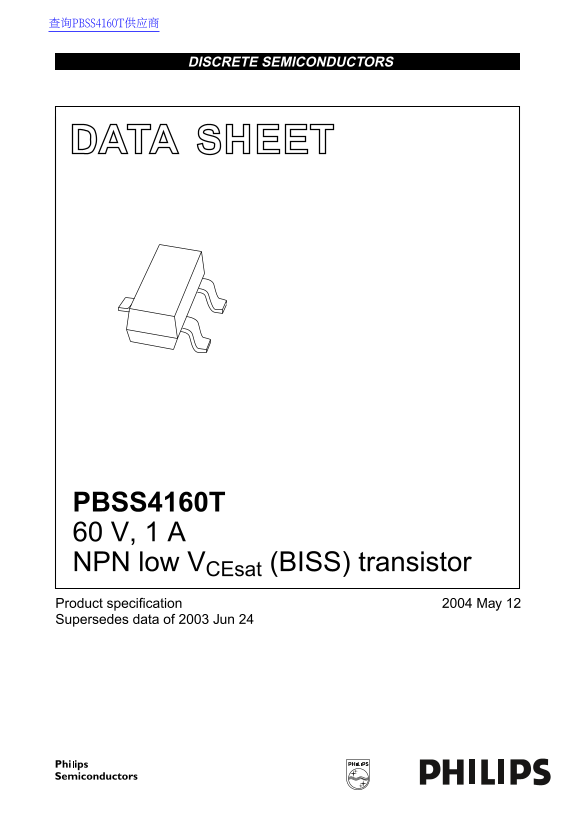

Philips PBSS4160T NPN Low VCEsat (BISS) Transistor Data Manual - Page 1

›

Page 1 Text Content

查询PBSS4160T供应商

DISCRETE SEMICONDUCTORS

DATA SHEET

book, halfpage

PBSS4160T 60 V, 1 A NPN low VCEsat (BISS) transistor Product specification May Supersedes data of 2003 Jun 24

Page Summary Contents For Philips PBSS4160T NPN Low VCEsat (BISS) Transistor Data Manual

Page 1 查询PBSS4160T供应商 DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage PBSS4160T 60 V, 1 A NPN low VCEsat (BISS) transistor Product specification May Supersedes data of 2003 Jun 24

Page 2 Philips Semiconductors Product specification PBSS4160T NPN low VCEsat (BISS) transistor FEATURES QUICK REFERENCE DATA Low collector-emitter saturation voltage VCEsat SYMBOL PARAMETER MAX. UNIT High co...

Page 3 Philips Semiconductors Product specification PBSS4160T NPN low VCEsat (BISS) transistor LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 60134). SYMBOL PARAMETER CONDITIONS M...

Page 4 Philips Semiconductors Product specification PBSS4160T NPN low VCEsat (BISS) transistor THERMAL CHARACTERISTICS SYMBOL PARAMETER CONDITIONS VALUE UNIT Rth(j-a) thermal resistance from junction to in f...

Page 5 Philips Semiconductors Product specification PBSS4160T NPN low VCEsat (BISS) transistor CHARACTERISTICS Tamb °C unless otherwise specified. SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT ICBO collect...

Page 6 Philips Semiconductors Product specification PBSS4160T NPN low VCEsat (BISS) transistor MLE135 MLE104 handbook, halfpage handbook, halfpage VCEsat (V) VCEsat (V) IC (m A) IC (m A) IC/IB 10. IC/IB 20. ...

Page 7 Philips Semiconductors Product specification PBSS4160T NPN low VCEsat (BISS) transistor MLE131 MLE132 handbook, halfpage (2)(3)(4)(5)(6) (1) handbook, halfpage RCEsat VCE (V) IC (m A) Tamb °C. (1) IB ...

Page 8 Philips Semiconductors Product specification PBSS4160T NPN low VCEsat (BISS) transistor PACKAGE OUTLINE Plastic surface mounted package; 3 leads SOT23 e1 bp Lp detail X scale DIMENSIONS (mm are the or...

Page 9 Philips Semiconductors Product specification PBSS4160T NPN low VCEsat (BISS) transistor DATA SHEET STATUS DATA SHEET PRODUCT LEVEL DEFINITION STATUS(1) STATUS(2)(3) Objective data Development This dat...

Page 10 Philips Semiconductors – a worldwide company Contact information For additional information please visit http://www.semiconductors.philips.com. Fax: +31 For sales offices addresses send e-mail to: sal...
