Philips BGA6289 Wideband Medium Power Amplifier Data Sheet

Summary

This data sheet details the specifications for the BGA6289 MMIC wideband medium power amplifier, a resistive feedback Darlington configuration device housed in a 4-pin SOT89 package. Designed for use in cellular, PCS, and CDPD applications, it provides 17 dBm of output power and requires minimal external components for 50-ohm matching. The manual covers electrical characteristics, thermal ratings, and typical application circuits for high-linearity gain blocks and IF/RF buffer amplifiers.

📄 Preview ‹ PAGE OF 12 ›

‹

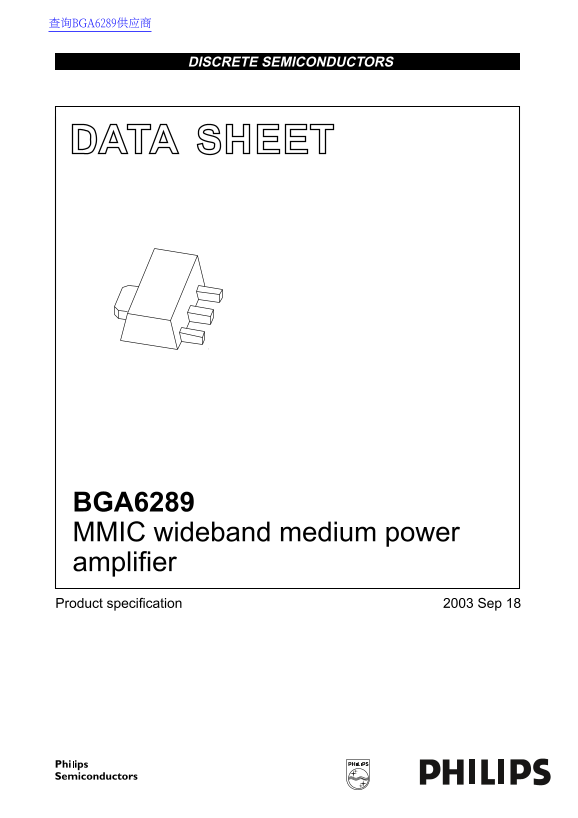

Philips BGA6289 Wideband Medium Power Amplifier Data Sheet - Page 1

›

Page 1 Text Content

查询BGA6289供应商

DISCRETE SEMICONDUCTORS

DATA SHEET

book, halfpage

BGA6289 MMIC wideband medium power amplifier Product specification Sep

Page Summary Contents For Philips BGA6289 Wideband Medium Power Amplifier Data Sheet

Page 1 查询BGA6289供应商 DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage BGA6289 MMIC wideband medium power amplifier Product specification Sep

Page 2 Philips Semiconductors Product specification MMIC wideband medium power amplifier BGA6289 FEATURES PINNING Broadband 50 Ω gain block PIN DESCRIPTION d Bm output power RF out/bias SOT89 package GND Sin...

Page 3 Philips Semiconductors Product specification MMIC wideband medium power amplifier BGA6289 LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 60134) SYMBOL PARAMETER CONDITIONS ...

Page 4 Philips Semiconductors Product specification MMIC wideband medium power amplifier BGA6289 CHARACTERISTICS VS V; IS m A; Tamb °C; IP3(out) tone spacing MHz; PL d Bm per tone (see Fig.2); R1 Ω; ZL ZS = ...

Page 5 Philips Semiconductors Product specification MMIC wideband medium power amplifier BGA6289 APPLICATION INFORMATION Figure 2 shows a typical application circuit for the BGA6289 MMIC. The device is inter...

Page 6 Philips Semiconductors Product specification MMIC wideband medium power amplifier BGA6289 handbook, full pagewidth 90° 200 MHz 50.50.2 2.6 GHz −90° MGX420 IS m A; VS V; PD −30 d Bm; ZO Ω. Fig.3 Input ...

Page 7 Philips Semiconductors Product specification MMIC wideband medium power amplifier BGA6289 MGX422 MGX423 handbook, halfpage handbook, halfpage |s21|2 f (MHz) f (MHz) IS m A; VS V; PD −30 d Bm; ZO Ω. IS...

Page 8 Philips Semiconductors Product specification MMIC wideband medium power amplifier BGA6289 MGX426 MGX427 handbook, halfpage handbook, halfpage NF (d B) f (MHz) f (MHz) IS m A; VS V; ZO Ω. IS m A; VS V;...

Page 9 hi te xt is er in hi te to fo rc la nd sc ap pa ge to ro ta te co rr ec tly he br ow si ng th ro ug th pd f i th cr ob at ea de r. hi te xt is er in _w hi te to fo rc la nd sc ap pa ge to be ro ta te ...

Page 10 Philips Semiconductors Product specification MMIC wideband medium power amplifier BGA6289 PACKAGE OUTLINE Plastic surface mounted package; collector pad for good heat transfer; 3 leads SOT89 scale DIM...

Page 11 Philips Semiconductors Product specification MMIC wideband medium power amplifier BGA6289 DATA SHEET STATUS DATA SHEET PRODUCT LEVEL DEFINITION STATUS(1) STATUS(2)(3) Objective data Development This d...

Page 12 Philips Semiconductors – a worldwide company Contact information For additional information please visit http://www.semiconductors.philips.com. Fax: +31 For sales offices addresses send e-mail to: sal...
