Philips NE SA5204A Wide-band High-Frequency Amplifier Data Sheet / Manual
Summary
Product specification (February 1992) for the Philips NE/SA5204A wide-band high-frequency amplifier with 20dB fixed insertion gain. Features flat gain of +/-0.5dB from DC to 200MHz, -3dB bandwidth exceeding 350MHz, 4.8dB noise figure in 75-ohm system (6dB in 50-ohm), single 6V supply at 25mA, matched input/output impedances for 50/75-ohm systems, and no external components required. Ideal for cable TV applications. Relaxed specifications version of NE5205. Monolithic bipolar IC replacement for hybrid solutions.
Page 1 Text Content

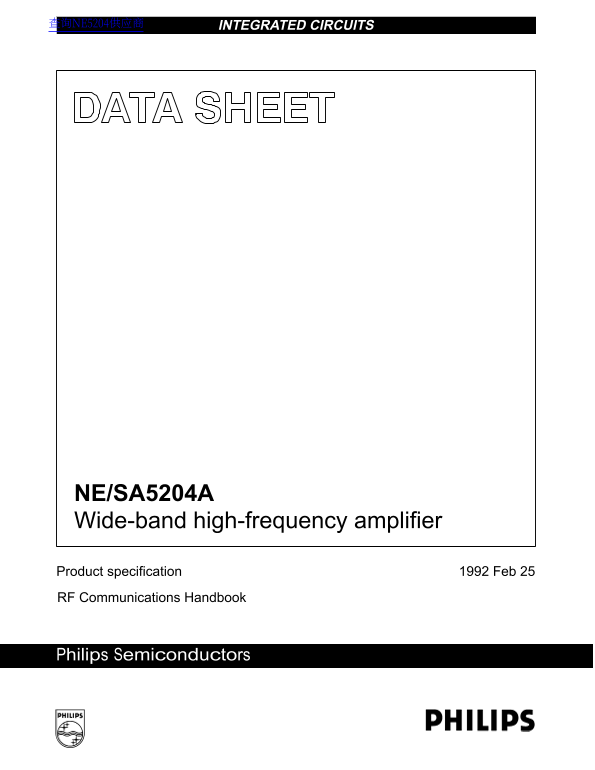

查询NE5204供应商 INTEGRATED CIRCUITS
NE/SA5204A Wide-band high-frequency amplifier
Product specification 1992 Feb 25 RF Communications Handbook
Philips Semiconductors
Page Summary Contents For Philips NE SA5204A Wide-band High-Frequency Amplifier Data Sheet / Manual
Manual Details
| Brand | Philips |
|---|---|
| Pages | 14 |
| File Size | 179.58 KB |
| Published | June 16, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the typical insertion gain?
The NE/SA5204A has a fixed insertion gain of 20dB.
What bandwidth does this amplifier provide?
It offers a wideband operation with a minimum guaranteed bandwidth up to 350MHz, and stable performance from DC to 200MHz.
Is external componentry required for optimal use?
No, the amplifier is internally compensated and requires no external components other than coupling capacitors.
Does it support different impedance standards?
Yes, the part is well matched to both 50Ω and 75Ω input and output impedances.
How can I increase the gain beyond 20dB?
A gain greater than 20dB can be achieved by cascading additional NE/SA5204As in series.
