Summary
The NE/SA/SE5532/5532A are internally-compensated dual low-noise operational amplifiers. Featuring 10MHz small-signal bandwidth, 9V/µs slew rate, 5nV/√Hz input noise voltage, and 140kHz power bandwidth, they significantly outperform standard op-amps like the 1458. The devices can drive 600Ω loads at 10V RMS and operate from ±3V to ±20V supplies. The 5532A version offers guaranteed noise specifications for critical applications. Target users are audio engineers, instrumentation designers, and telecommunications equipment developers who need high-fidelity signal amplification in professional audio equipment, measurement instruments, and telephone channel amplifiers.

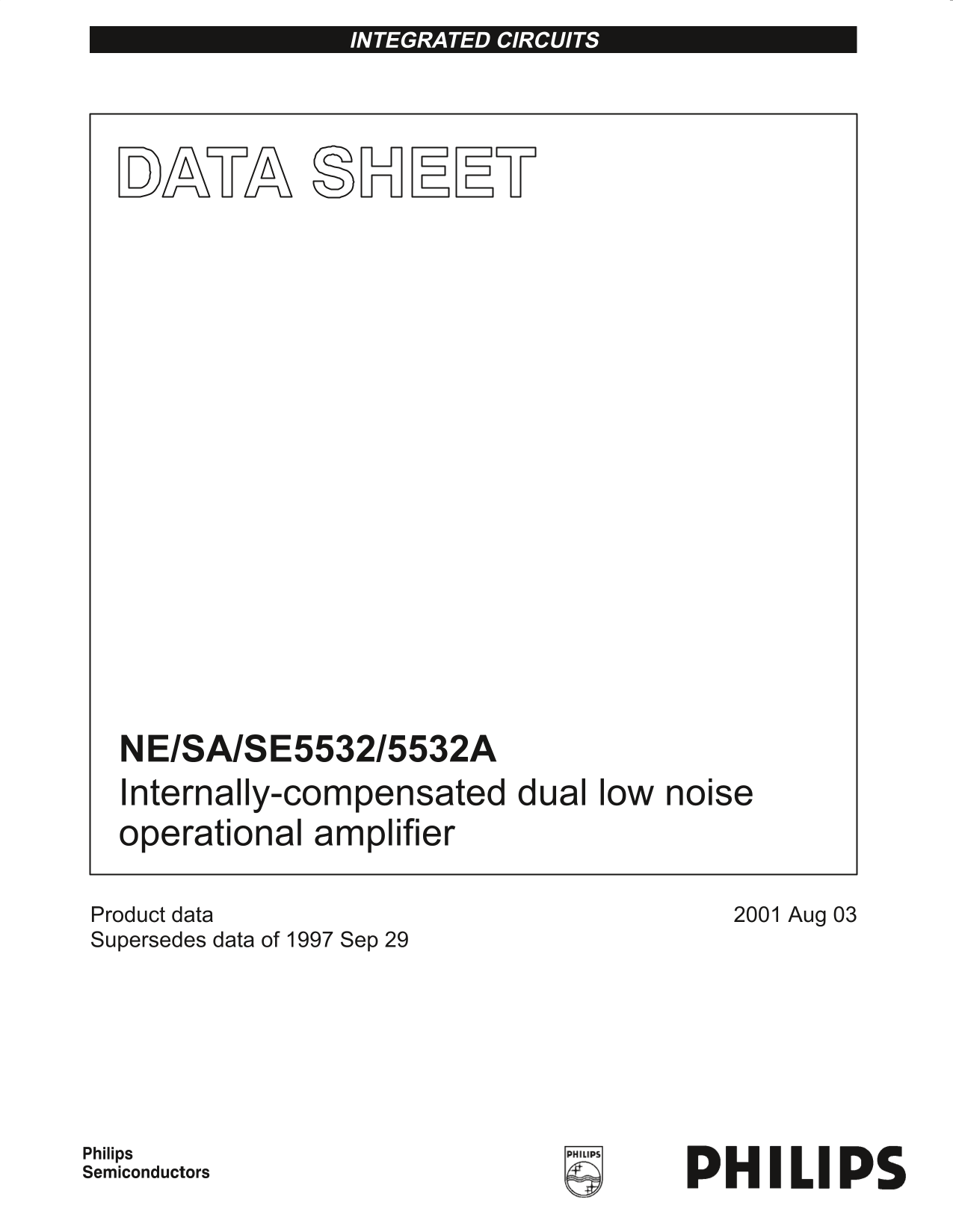

Page 1 Text Content
INTEGRATED CIRCUITS
NE/SA/SE5532/5532A Internally-compensated dual low noise operational amplifier
Product data 2001 Aug 03 Supersedes data of 1997 Sep 29
Page Summary Contents For PHILIPS NE SA SE5532 5532A Internally-compensated dual low noise operational amplifier Data Sheet User Manual
Manual Details
| Brand | Philips |
|---|---|
| Pages | 12 |
| File Size | 124.89 KB |
| Published | July 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the typical input noise voltage?
5 nV/√Hz.
What are the key applications for the NE5532?
High-quality audio equipment, instrumentation, control circuits, and telephone channel amplifiers.
What is the maximum supply voltage range?
±3 to ±20 V.
