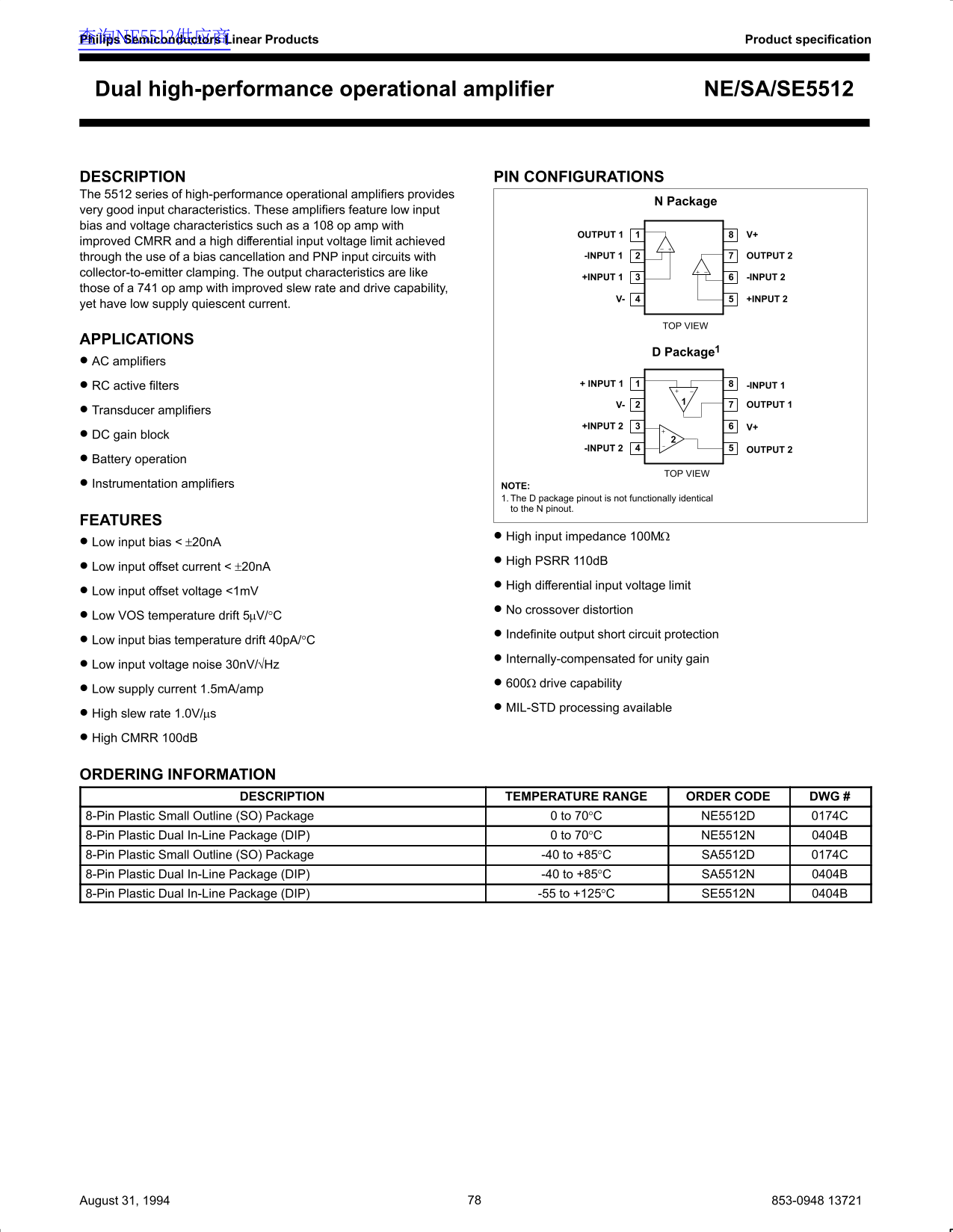

查询NE5512供应商 Philips Semiconductors Linear Products Product specification
NE/SA/SE5512Dual high-performance operational amplifier
DESCRIPTION PIN CONFIGURATIONS The 5512 series of high-performance operational amplifiers provides
N Package
very good input characteristics. These amplifiers feature low input bias and voltage characteristics such as a 108 op amp with
1OUTPUT 1 V+
improved CMRR and a high differential input voltage limit achieved
through the use of a bias cancellation and PNP input circuits with -INPUT 1 OUTPUT 2
collector-to-emitter clamping. The output characteristics are like
+INPUT 1 -INPUT 2
those of a 741 op amp with improved slew rate and drive capability,
V- +INPUT 2
yet have low supply quiescent current.
TOP VIEW
APPLICATIONS
D Package1
AC amplifiers
RC active filters 1+ INPUT 1 -INPUT 1
V- OUTPUT 1
Transducer amplifiers
+INPUT 2 V+
DC gain block
-INPUT 2 OUTPUT 2
Battery operation
TOP VIEW
Instrumentation amplifiers NOTE:
1. The D package pinout is not functionally identical to the N pinout.
FEATURES
High input impedance 100MΩ
Low input bias < ±20n A
High PSRR 110d B
Low input offset current < ±20n A
High differential input voltage limit
Low input offset voltage <1m V
No crossover distortion
Low VOS temperature drift 5µV/°C
Indefinite output short circuit protection
Low input bias temperature drift 40p A/°C
Internally-compensated for unity gain
Low input voltage noise 30n V/√Hz
600Ω drive capability
Low supply current 1.5m A/amp
MIL-STD processing available
High slew rate 1.0V/µs High CMRR 100d B
ORDERING INFORMATION
DESCRIPTION TEMPERATURE RANGE ORDER CODE DWG #
8-Pin Plastic Small Outline (SO) Package 0 to 70°C NE5512D 0174C 8-Pin Plastic Dual In-Line Package (DIP) 0 to 70°C NE5512N 0404B 8-Pin Plastic Small Outline (SO) Package -40 to +85°C SA5512D 0174C 8-Pin Plastic Dual In-Line Package (DIP) -40 to +85°C SA5512N 0404B 8-Pin Plastic Dual In-Line Package (DIP) -55 to +125°C SE5512N 0404B
78August 31, 1994 853-0948 13721
