Philips Semiconductor NE SA SE532, LM258 358 A 2904 DATA SHEET
Summary
These low-power dual operational amplifiers (532 series) are advanced components for reliable signal amplification in complex electronic circuits. They feature high gain, temperature-compensated performance, and unique capability, allowing stable operation from both single and dual power supplies across a wide voltage range. The manual provides comprehensive engineering data, including pin configurations, detailed electrical characteristics, material ratings, and diverse packaging options (DIP, SO, TSSOP) to suit all application needs. Ideal for designers requiring precision and robust performance in demanding environments.

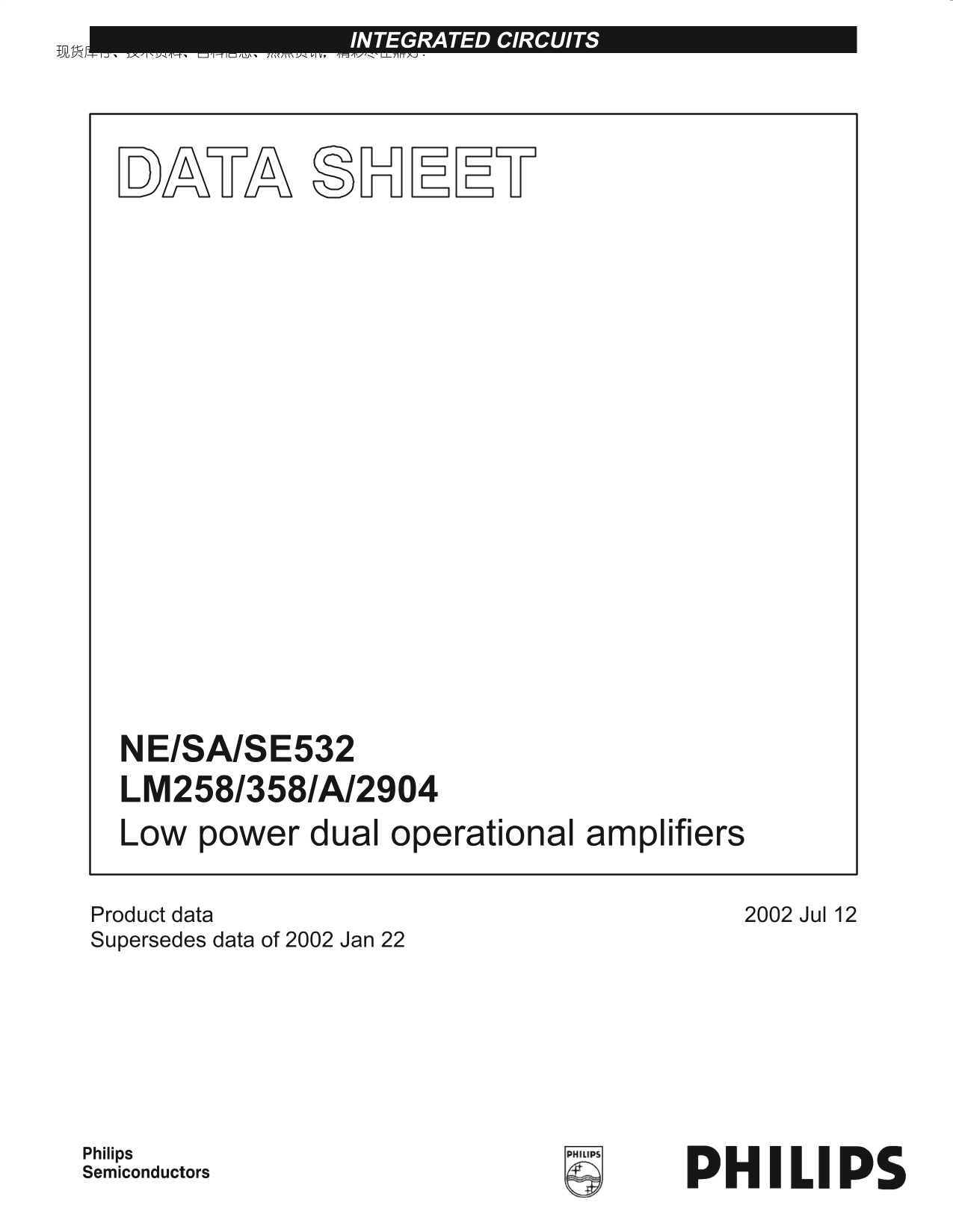

Page 1 Text Content
INTEGRATED CIRCUITS
NE/SA/SE532 LM258/358/A/2904 Low power dual operational amplifiers
Product data 2002 Jul 12 Supersedes data of 2002 Jan 22
Page Summary Contents For Philips Semiconductor NE SA SE532, LM258 358 A 2904 DATA SHEET
Manual Details
| Brand | Philips |
|---|---|
| Pages | 12 |
| File Size | 136.78 KB |
| Published | July 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the unit gain cross frequency range for these amplifiers?
The unity gain cross frequency is temperature-compensated and ranges up to 1 MHz.
Can this device operate using a single power supply or dual supplies?
Yes, it can operate from a single power supply (3 V to 30 V) or dual power supplies (±1.5 V to ±15 V).
What is the maximum allowed operating temperature range for all models?
The standard operating ambient temperature range is generally given as 0 °C to +70 °C, but specialized packages can extend this up to –40 °C minimum and +125 °C maximum.
Are there limitations when running the output circuit near ground potential in single supply mode?
In linear mode, the input common-mode voltage range includes ground, and the output voltage can swing down to ground even with only a single power supply.
