Philips Semiconductors 8-Bit µp-compatible D/A Converter NE/SE5018 5019
Summary
The NE/SE5018/5019 is a versatile 8-bit digital-to-analog converter (DAC) designed as a complete subsystem compatible with various microprocessors. Ideal for embedded systems and precision instrumentation, it excels in converting digital data into precise analog voltages, supporting both bipolar and unipolar output modes. The manual provides comprehensive details on its technical specifications, including low-loading input features, stable voltage referencing, timing diagrams (setup/hold), and operational parameters required for accurate integration in test equipment, power supplies, and measuring devices.

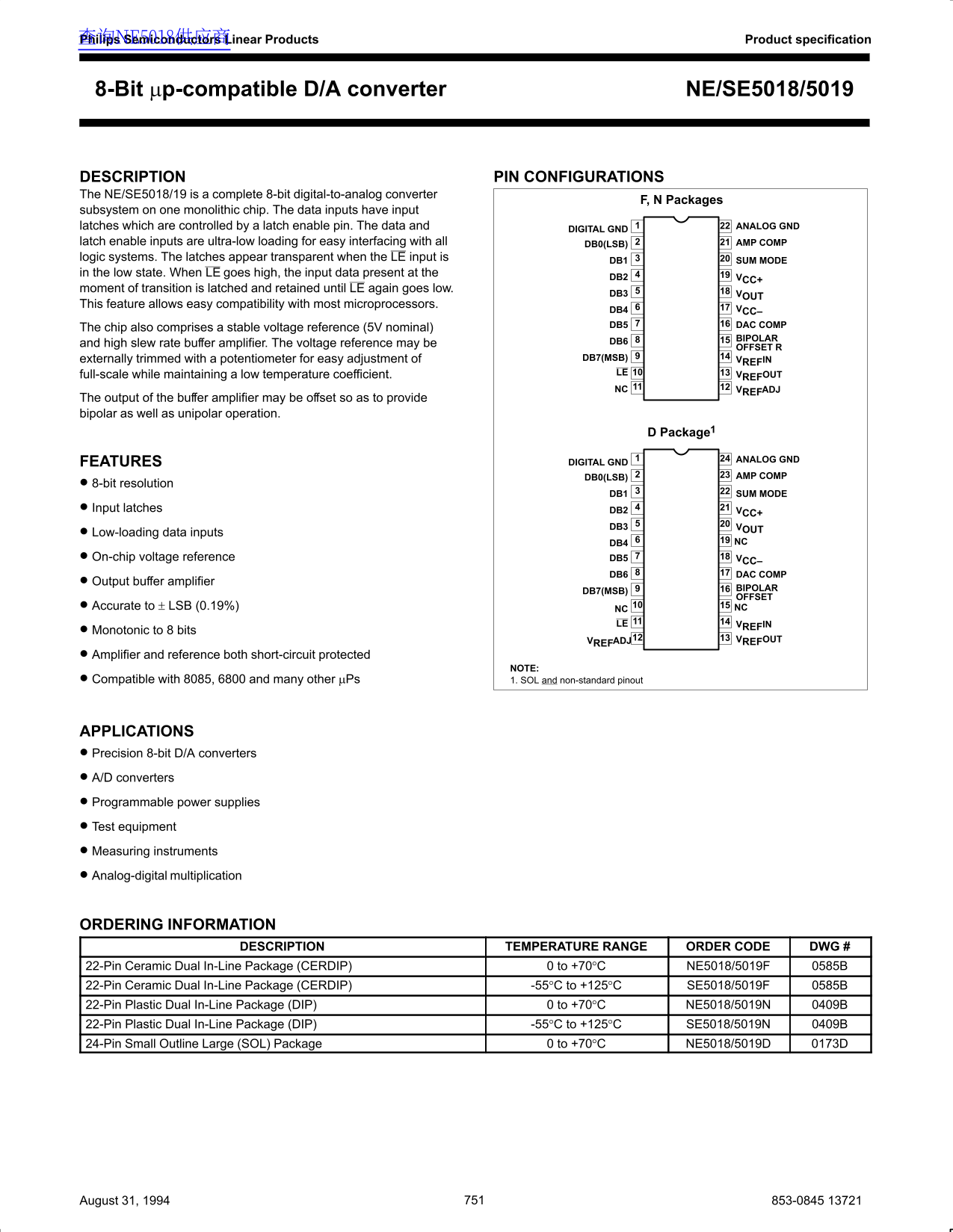

Page 1 Text Content
查询NE5018供应商 Philips Semiconductors Linear Products Product specification
NE/SE5018/50198-Bit µp-compatible D/A converter
DESCRIPTION PIN CONFIGURATIONS The NE/SE5018/19 is a complete 8-bit digital-to-analog converter
F, N Packages
subsystem on one monolithic chip. The data inputs have input
latches which are controlled by a latch enable pin. The data and DIGITAL GND ANALOG GND
latch enable inputs are ultra-low loading for easy interfacing with all DB0(LSB) AMP COMP logic systems. The latches appear transparent when the LE input is DB1 SUM MODE in the low state. When LE goes high, the input data present at the
DB2 VCC+
moment of transition is latched and retained until LE again goes low.
DB3 VOUT
This feature allows easy compatibility with most microprocessors.
DB4 VCC–
DB5 DAC COMP
The chip also comprises a stable voltage reference (5V nominal)
DB6 BIPOLAR
and high slew rate buffer amplifier. The voltage reference may be
OFFSET R
externally trimmed with a potentiometer for easy adjustment of DB7(MSB) VREFIN full-scale while maintaining a low temperature coefficient. LE VREFOUT NC VREFADJ
The output of the buffer amplifier may be offset so as to provide bipolar as well as unipolar operation.
D Package1
FEATURES DIGITAL GND ANALOG GND DB0(LSB) AMP COMP
8-bit resolution
DB1 SUM MODE
Input latches DB2 VCC+
DB3 VOUT
Low-loading data inputs
DB4 NC
On-chip voltage reference DB5 VCC–
DB6 DAC COMP
Output buffer amplifier
DB7(MSB) BIPOLAR OFFSET
Accurate to ± LSB (0.19%) NC NC
LE VREFIN
Monotonic to 8 bits
VREFOUTVREFADJ
Amplifier and reference both short-circuit protected
NOTE:
Compatible with 8085, 6800 and many other µPs 1. SOL and non-standard pinout
APPLICATIONS Precision 8-bit D/A converters A/D converters Programmable power supplies Test equipment Measuring instruments Analog-digital multiplication
ORDERING INFORMATION
DESCRIPTION TEMPERATURE RANGE ORDER CODE DWG #
22-Pin Ceramic Dual In-Line Package (CERDIP) 0 to +70°C NE5018/5019F 0585B 22-Pin Ceramic Dual In-Line Package (CERDIP) -55°C to +125°C SE5018/5019F 0585B 22-Pin Plastic Dual In-Line Package (DIP) 0 to +70°C NE5018/5019N 0409B 22-Pin Plastic Dual In-Line Package (DIP) -55°C to +125°C SE5018/5019N 0409B 24-Pin Small Outline Large (SOL) Package 0 to +70°C NE5018/5019D 0173D
751August 31, 1994 853-0845 13721
Page Summary Contents For Philips Semiconductors 8-Bit µp-compatible D/A Converter NE/SE5018 5019
Manual Details
| Brand | Philips |
|---|---|
| Pages | 6 |
| File Size | 65.88 KB |
| Published | July 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What types of output operation modes are available?
The output buffer amplifier supports both bipolar and unipolar operations.
How can the reference voltage be adjusted for specific applications?
The stable voltage reference may be externally trimmed using a potentiometer for easy adjustment of V IN REF.
What microprocessors is this converter compatible with?
It is designed to be compatible with most microprocessors, including the 8085 and 6800.
Does the device have internal voltage regulation or trimming features?
Yes, it includes a stable voltage reference (nominal 5V) which can be externally trimmed for fine adjustment.
