PHILIPS LOW POWER DUAL OPERATIONAL AMPLIFIERS DATA MANUAL & SPECIFICATIONS
Summary
Philips semiconductor integrated circuit datasheet covering features, functional description, pin assignments, quick reference data, limiting values per Absolute Maximum Rating System (IEC 60134), recommended operating conditions, electrical characteristics, application information, I2C-bus protocol details where applicable, package outline drawings, and soldering guidelines.
Page 1 Text Content

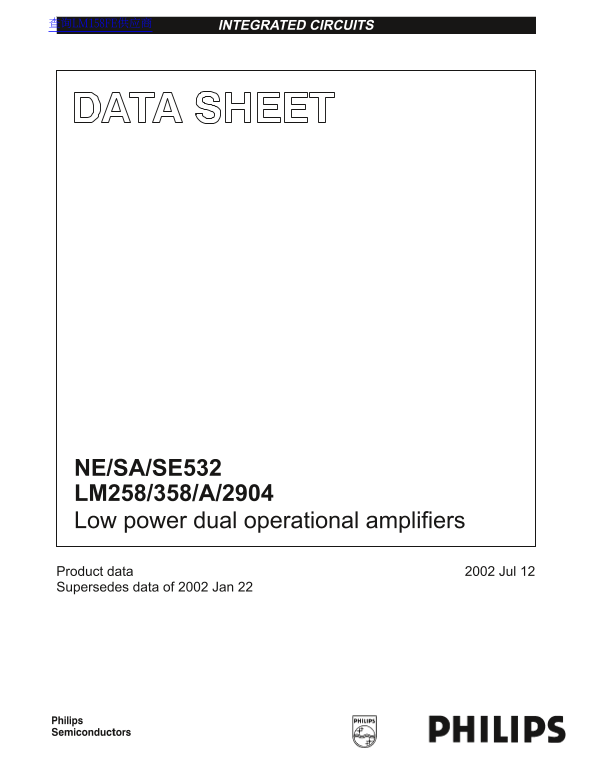

INTEGRATED CIRCUITS查询LM158FE供应商
NE/SA/SE532 LM258/358/A/2904 Low power dual operational amplifiers
Product data 2002 Jul 12 Supersedes data of 2002 Jan 22
Page Summary Contents For PHILIPS LOW POWER DUAL OPERATIONAL AMPLIFIERS DATA MANUAL & SPECIFICATIONS
Manual Details
| Brand | Philips |
|---|---|
| Pages | 12 |
| File Size | 120.16 KB |
| Published | June 18, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the specified operating temperature range for different models?
Temperature ranges vary by model: NE532/LM358/LM358A are rated 0 to +70 °C; LM2904 is –40 to +125 °C; and SE532 is –55 to +125 °C.
What is the maximum output current rating?
The maximum output current is approximately 40 mA, independent of the magnitude of V+.
Can this device operate with a single power supply or dual supplies?
Yes, it can operate from a single power supply (3 V to 30 V) or via dual supplies (±1.5 V to ±15 V).
Are there limitations on using the output for short circuits?
Short-circuits from the output to GND/V+ must be avoided as they can cause excessive heating and eventual destruction.
