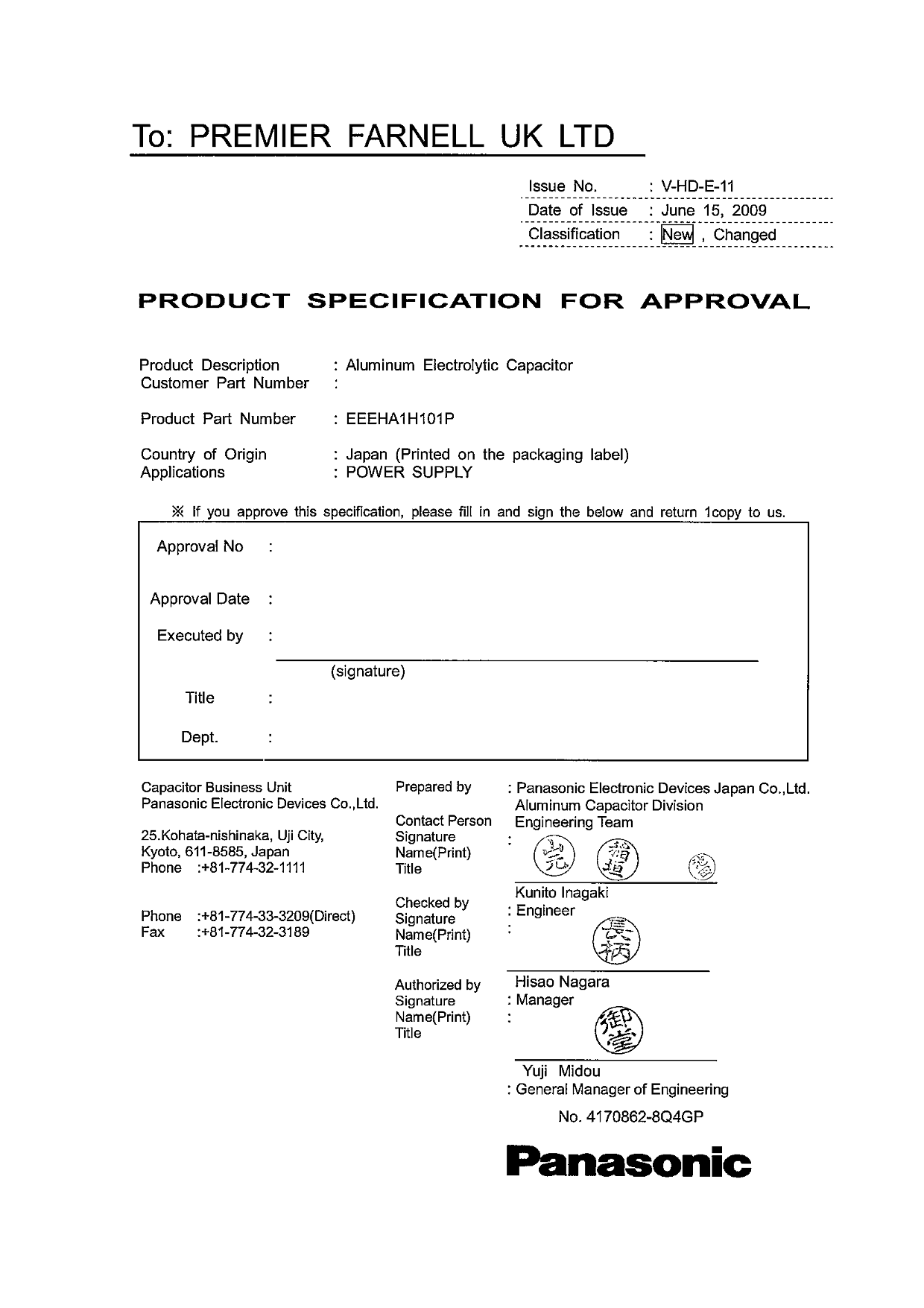

PANASONIC Product Specification FOR APPROVAL
Summary
This comprehensive manual details the Surface Mount Type Aluminum electrolytic capacitor, providing critical information on its specifications, construction, and handling. It covers detailed parts numbering, dimensions, performance characteristics, reflow soldering profiles, and necessary guidelines for stable integration into electronic circuits. Designed for high-reliability applications, this resource is essential for engineers and manufacturers building sophisticated equipment such as audio/visual systems, computers, home appliances, and industrial control systems.
Page Summary Contents For PANASONIC Product Specification FOR APPROVAL
Page 3
Product Specification V-HD-E-11 Page No. Contents Contents Notice matter P.1 Scope P.2 Parts Number P.2 Parts Lists P.2 Dimensions P.3 Constructions P.4 Marking P.4 Lot No. System P.5 Standard Rating ...
Page 4
Product Specification V-HD-E-11 Notice matter ◆ Law and regulation which are applied ・ This product complies with the Ro HS Directive (Restriction of the use of certain Hazardous Substances in electri...
Page 5
Product Specification V-HD-E-11 1．Scope Fixed capacitors for use in electronic equipment, Surface Mount Type Aluminum electrolytic capacitors with non-solid electrolyte. 2．Parts number EEE HD 1H 101 P...
Page 6
Product Specification V-HD-E-11 3．Dimensions ( ) Reference size [mm] 0.3max. Size Code A,B 10.0 10.2 10.3 12.0max 3.5 0.90±0.2 4.6 0.70±0.2 Panasonic Electronic Devices Co., Ltd.
Page 7
Product Specification V-HD-E-11 4．Constructions 4-1 Inside Construction 3. Aluminum can 2. Isolator Pressure Relief 1. Terminals 4. Sealing rubber Inside unit (5. Separator, 6･7 Anode and cathode foil...
Page 8
Product Specification V-HD-E-11 LOT No．SYSTEM 5 A lot No. shall be given on the bottom of a case in the following way. Size Code (B～G) Marking with 3 digits Indicating that the product was produced in...
Page 9
Product Specification V-HD-E-11 6．Standard rating Item Ratings Category Temperature Range -40℃ ～ +105℃ Rated Voltage Range 50 V.DC Capacitance Range 100 μF (120Hz 20℃) Capacitance Tolerance ±20% ...
Page 10
Product Specification V-HD-E-11 7．Performance Characteristics No Item Performance Characteristics Test Leakage Current I=0.01CV or 3μA whichever is the Series Resistor : 1000Ω±10Ω greater. Applied Vol...
Page 11
Product Specification V-HD-E-11 No Item Performance Characteristics Test Vibration Capacitance : Frequency : 10Hz～55Hz (1 minute per cycle.) During test, measured value shall be Total amplitudes : 1.5...
Page 12
Product Specification V-HD-E-11 No Item Performance Characteristics Test Pressure Relief Pressure relief shall be operated without ・A.C. Current Method any hazardous expulsion or emission of flame. No...
Page 13
Product Specification V-HD-E-11 No Item Performance characteristics Test Endurance Leakage Current : Test Temperature : 105℃±2℃ ≦the value of item 7.1. Test Duration : 5000+72 0 hours Capacitance chan...
Page 14
Product Specification V-HD-E-11 Te pe ra tu re ca pa ci to r s ur fa ce (℃ 9．Reflow Soldering Temperature Profile After the capacitor is subjected to the specified reflow soldering, (see the temperatu...
Page 15
Product Specification V-HD-E-11 10．Taping 10-1 Carrier Tape Size code G Size Code * Dimensions of A and B are measured at the B C bottom of the embossed part. 10-2 Reel 2±0.5 Reel φ13±0.5 Code Width(A...
Page 16
Product Specification V-HD-E-11 11．Details of Carrier Tape Carrier tape seal tape adhesive tape empty part leader part fixing tape (1) a. Last reeling empty part of carrier tape shall be more than 10 ...
Page 17
Product Specification V-HD-E-11 13．Packing Style (1) Carrier tape shall be reeled inside. (seal tape shall be outside) (2) End of the tape shall be inside to the reel physically as shown in the below ...
Page 18
Product Specification V-HD-E-11 16.Package Label Example Label information on the Packaging Box The label has following information in English a) Rated Voltage, Capacitance b) Part Number c) Packing Q...
Page 19
Product Specification Guideline-ALV-S2-3 Application Guidelines Guidelines-1 * This specification guarantees the quality and performance of the product as individual components. Before use, check and ...
Page 20
Product Specification Guideline-ALV-S2-3 Application Guidelines Guidelines-2 1.3 Common Application Conditions to Avoid The following misapplication load conditions will cause rapid deterioration of a...
Page 21
Product Specification Guideline-ALV-S2-3 Application Guidelines Guidelines-3 2. Capacitor Handling Techniques 2.1 Considerations Before Using (1) Capacitors have a finite life. Do not reuse or recycle...
Page 22
Product Specification Guideline-ALV-S2-3 Application Guidelines Guidelines-4 3. Precautions for using capacitors 3.1 Environmental Conditions Capacitors should not be stored or used in the following e...
Manual Details
| Brand | Panasonic |
|---|---|
| Pages | 22 |
| File Size | 269.00 KB |
| Published | July 16, 2026 |
0 views
Enter the captcha to get the download link:
Frequently Asked Questions
What is the recommended storage period for these capacitors?
The capacitor storage period is one year.
How should I handle a capacitor that has been stored for over 12 months?
Recondition it by applying the rated voltage in series with a 1000 Ω current limiting resistor for 30 minutes.
What types of electronics are these capacitors suitable for?
They can be used in equipment such as audio/visual, home appliances, computers, office equipment, optical equipment, measuring equipment, and industrial robots.
How do I dispose of the capacitor safely?
You must incinerate it after crushing or puncturing the can wall to prevent explosion due to internal pressure rise. Local laws may also apply.
