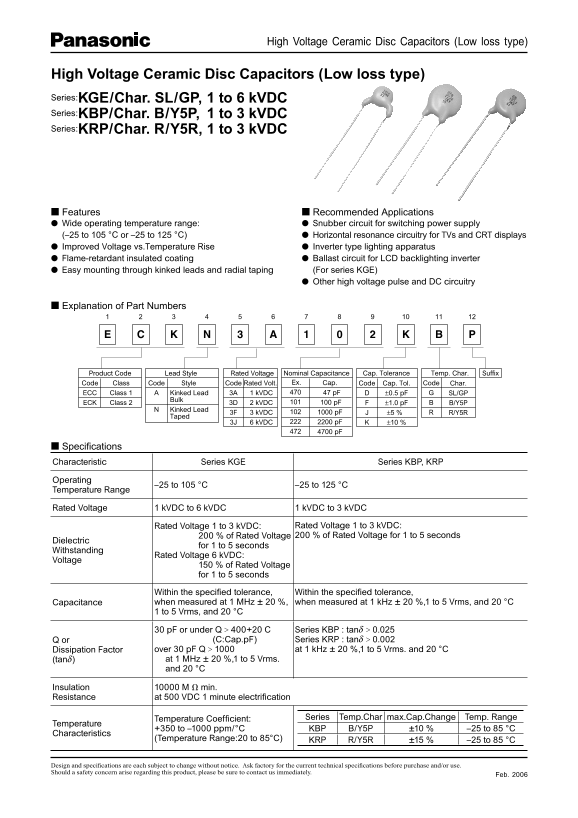

High Voltage Ceramic Disc Capacitors (Low loss type)
High Voltage Ceramic Disc Capacitors (Low loss type) Series:KGE/Char. SL/GP, 1 to 6 k VDC Series:KBP/Char. B/Y5P, 1 to 3 k VDC Series:KRP/Char. R/Y5R, 1 to 3 k VDC
Features Recommended Applications ● Wide operating temperature range: ● Snubber circuit for switching power supply (–25 to 105 °C or –25 to 125 °C) ● Horizontal resonance circuitry for TVs and CRT displays ● Improved Voltage vs.Temperature Rise ● Inverter type lighting apparatus ● Flame-retardant insulated coating ● Ballast circuit for LCD backlighting inverter ● Easy mounting through kinked leads and radial tap ing (For series KGE)
● Other high voltage pulse and DC circuitry
Explanation of Part Numbers
Product Code Style Voltage Nominal Capacitance Cap. Tolerance Temp. Char.Lead Suffix Rated
Code Class Code Style Code Rated Volt. Ex. Cap. Code Cap. Tol. Code Char.
ECC Class Kinked Lead 3A k VDC p F ±0.5 p F SL/GP
ECK Class 3D k VDC p F ±1.0 p F B/Y5P
Kinked Lead
3F k VDC p F ±5 R/Y5R
Taped
3J k VDC p F ±10 p F
Specifi cations Characteristic Series KGE Series KBP, KRP
Operating
–25 to 105 °C –25 to 125 °C
Temperature Range
Rated Voltage 1 k VDC to 6 k VDC 1 k VDC to 3 k VDC
Rated Voltage 1 to 3 k VDC: Rated Voltage 1 to 3 k VDC: 200 % of Rated Voltage 200 % of Rated Voltage for 1 to 5 seconds
Dielectric
for 1 to 5 seconds
Withstanding
Rated Voltage 6 k VDC:
Voltage
150 % of Rated Voltage for 1 to 5 seconds
Within the specifi ed tolerance, Within the specifi ed tolerance, Capacitance when measured at 1 MHz ± 20 %, when measured at 1 k Hz ± 20 %,1 to 5 Vrms, and 20 °C 1 to 5 Vrms, and 20 °C
30 p F or under Q > 400+20 C Series KBP : tand > 0.025
Q or (C:Cap.p F) Series KRP : tand > 0.002
Dissipation Factor over 30 p F Q > 1000 at 1 k Hz ± 20 %,1 to 5 Vrms. and 20 °C (tand) at 1 MHz ± 20 %,1 to 5 Vrms. and 20 °C
Insulation 10000 M min. Resistance at 500 VDC 1 minute electrifi cation
Temperature Coeffi cient: Series Temp.Char max.Cap.Change Temp. Range
Temperature
+350 to –1000 ppm/°C KBP B/Y5P ±10 % –25 to 85 °C
Characteristics
(Temperature Range:20 to 85°C) KRP R/Y5R ±15 % –25 to 85 °C
Design and specifi cations are each subject to change without notice. Ask factory for the current technical specifi cations before purchase and/or use. Should a safety concern arise regarding this product, please be sure to contact us immediately.
Feb. 2006
