This manual details the AN80PxxRSP Series, a family of 5-pin low dropout voltage regulators capable of 1 A output current. Designed for general power supply applications, the series offers various output voltages and features standby modes for low power consumption.
Page 1 Text Content
查询AN80Pxx RSP Series供应商 Voltage Regulators

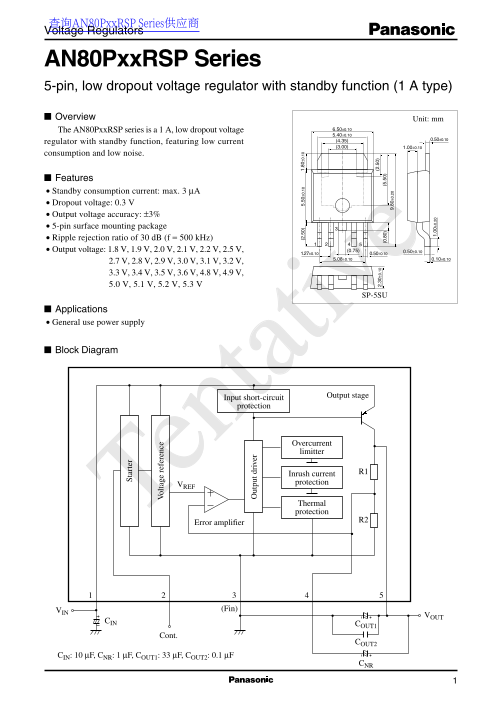

AN80Pxx RSP Series 5-pin, low dropout voltage regulator with standby function (1 A type) Overview Unit: mm
The AN80Pxx RSP series is a 1 A, low dropout voltage St ar te 6.50±0.10 5.40±0.10
regulator with standby function, featuring low current
consumption and low noise.
ol ta ge ef er en ce
Features Standby consumption current: max. 3 µA Dropout voltage: 0.3 V Output voltage accuracy: ±3% 5-pin surface mounting package Ripple rejection ratio of 30 d B (f = 500 k Hz) Output voltage: 1.8 V, 1.9 V, 2.0 V, 2.1 V, 2.2 V, 2.5 V, (0.75) 0.50±0.10
ut pu t d ri ve 1.27±0.10 0.50±0.10
SP-5SU
Applications General use power supply
Block Diagram
Output stage
Input short-circuit protection
Overcurrent limitter
Inrush current protection VREF
Thermal protection
Error amplifier
VIN (Fin)
COUT1
Cont.
COUT2
CIN: 10 µF, CNR: 1 µF, COUT1: 33 µF, COUT2: 0.1 µF
Page Summary Contents For Panasonic AN80PxxRSP Series Data Manual (1) User Guide
Page 1
查询AN80Pxx RSP Series供应商 Voltage Regulators AN80Pxx RSP Series 5-pin, low dropout voltage regulator with standby function (1 A type) Overview Unit: mm The AN80Pxx RSP series is a 1 A, low dropout volta...
Page 2
AN80Pxx RSP Series Voltage Regulators Pin Descriptions Pin No. Description Input voltage pin (VIN) Control pin (Cont.) High: operation, Low: stop Grounding pin (GND) Electrically in common with radiat...
Page 3
Voltage Regulators AN80Pxx RSP Series Recommended Operating Conditions Part No. Output voltage Operating supply voltage range (VCC) Unit AN80P18RSP 1.8 2.3 to 14.0 AN80P19RSP 1.9 2.4 to 14.0 AN80P20RS...
Page 4
AN80Pxx RSP Series Voltage Regulators Electrical Characteristics at Ta = 25°C AN80P18RSP (1.8 V type) Unless otherwise specially provided, shorten each test time (within 10 ms) so that the test is con...
Page 5
Voltage Regulators AN80Pxx RSP Series Electrical Characteristics at Ta = 25°C (continued) AN80P19RSP (1.9 V type) Unless otherwise specially provided, shorten each test time (within 10 ms) so that the...
Page 6
AN80Pxx RSP Series Voltage Regulators Electrical Characteristics at Ta = 25°C (continued) AN80P20RSP (2.0 V type) Unless otherwise specially provided, shorten each test time (within 10 ms) so that the...
Page 7
Voltage Regulators AN80Pxx RSP Series Electrical Characteristics at Ta = 25°C (continued) AN80P21RSP (2.1 V type) Unless otherwise specially provided, shorten each test time (within 10 ms) so that the...
Page 8
AN80Pxx RSP Series Voltage Regulators Electrical Characteristics at Ta = 25°C (continued) AN80P22RSP (2.2 V type) Unless otherwise specially provided, shorten each test time (within 10 ms) so that the...
Page 9
Voltage Regulators AN80Pxx RSP Series Electrical Characteristics at Ta = 25°C (continued) AN80P25RSP (2.5 V type) Unless otherwise specially provided, shorten each test time (within 10 ms) so that the...
Page 10
AN80Pxx RSP Series Voltage Regulators Electrical Characteristics at Ta = 25°C (continued) AN80P27RSP (2.7 V type) Unless otherwise specially provided, shorten each test time (within 10 ms) so that the...
Page 11
Voltage Regulators AN80Pxx RSP Series Electrical Characteristics at Ta = 25°C (continued) AN80P28RSP (2.8 V type) Unless otherwise specially provided, shorten each test time (within 10 ms) so that the...
Page 12
AN80Pxx RSP Series Voltage Regulators Electrical Characteristics at Ta = 25°C (continued) AN80P29RSP (2.9 V type) Unless otherwise specially provided, shorten each test time (within 10 ms) so that the...
Page 13
Voltage Regulators AN80Pxx RSP Series Electrical Characteristics at Ta = 25°C (continued) AN80P30RSP (3.0 V type) Unless otherwise specially provided, shorten each test time (within 10 ms) so that the...
Page 14
AN80Pxx RSP Series Voltage Regulators Electrical Characteristics at Ta = 25°C (continued) AN80P31RSP (3.1 V type) Unless otherwise specially provided, shorten each test time (within 10 ms) so that the...
Page 15
Voltage Regulators AN80Pxx RSP Series Electrical Characteristics at Ta = 25°C (continued) AN80P32RSP (3.2 V type) Unless otherwise specially provided, shorten each test time (within 10 ms) so that the...
Page 16
AN80Pxx RSP Series Voltage Regulators Electrical Characteristics at Ta = 25°C (continued) AN80P33RSP (3.3 V type) Unless otherwise specially provided, shorten each test time (within 10 ms) so that the...
Page 17
Voltage Regulators AN80Pxx RSP Series Electrical Characteristics at Ta = 25°C (continued) AN80P34RSP (3.4 V type) Unless otherwise specially provided, shorten each test time (within 10 ms) so that the...
Page 18
AN80Pxx RSP Series Voltage Regulators Electrical Characteristics at Ta = 25°C (continued) AN80P35RSP (3.5 V type) Unless otherwise specially provided, shorten each test time (within 10 ms) so that the...
Page 19
Voltage Regulators AN80Pxx RSP Series Electrical Characteristics at Ta = 25°C (continued) AN80P36RSP (3.6 V type) Unless otherwise specially provided, shorten each test time (within 10 ms) so that the...
Page 20
AN80Pxx RSP Series Voltage Regulators Electrical Characteristics at Ta = 25°C (continued) AN80P48RSP (4.8 V type) Unless otherwise specially provided, shorten each test time (within 10 ms) so that the...
Page 21
Voltage Regulators AN80Pxx RSP Series Electrical Characteristics at Ta = 25°C (continued) AN80P49RSP (4.9 V type) Unless otherwise specially provided, shorten each test time (within 10 ms) so that the...
Page 22
AN80Pxx RSP Series Voltage Regulators Electrical Characteristics at Ta = 25°C (continued) AN80P50RSP (5.0 V type) Unless otherwise specially provided, shorten each test time (within 10 ms) so that the...
Page 23
Voltage Regulators AN80Pxx RSP Series Electrical Characteristics at Ta = 25°C (continued) AN80P51RSP (5.1 V type) Unless otherwise specially provided, shorten each test time (within 10 ms) so that the...
Page 24
AN80Pxx RSP Series Voltage Regulators Electrical Characteristics at Ta = 25°C (continued) AN80P52RSP (5.2 V type) Unless otherwise specially provided, shorten each test time (within 10 ms) so that the...
Page 25
Voltage Regulators AN80Pxx RSP Series Electrical Characteristics at Ta = 25°C (continued) AN80P53RSP (5.3 V type) Unless otherwise specially provided, shorten each test time (within 10 ms) so that the...
Page 26
AN80Pxx RSP Series Voltage Regulators Application Notes 1. External compensation capacitor Connect the input pin and ground pin with a 10 µF capacitor and the output pin and ground pin with a 33 µF ca...
Page 27
Voltage Regulators AN80Pxx RSP Series Application Notes (continued) 3. Main characteristics AN80Pxx RSP series VOUT T VIN = Vtyp + 1 V IO = 5 m A AN80P18RSP VO IO (−30°C) VO IO (25°C) VIN = 2.8 ...
Page 28
Request for your special attention and precautions in using the technical information and semiconductors described in this material (1) An export permit needs to be obtained from the competent authori...
Manual Details
| Brand | Panasonic |
|---|---|
| Pages | 28 |
| File Size | 674.10 KB |
| Published | June 16, 2026 |
6 views
Enter the captcha to get the download link:
Frequently Asked Questions
How do I enable or disable the AN80PxxRSP?
Apply a high signal to the control pin (Cont.) for operation, or a low signal to stop it.
What is the maximum standby current consumption?
The standby consumption current is a maximum of 3 µA.
What output voltage options are available?
Output voltages range from 1.8V to 5.3V, including 1.8, 3.3, and 5.0 volts.
Can I use this regulator in automotive applications?
No, this IC is not suitable for automobile equipment use as stated in the Absolute Maximum Ratings.
