The AN8000/AN8000M series provides high-performance, low-dropout fixed voltage regulators ranging from 2V to 10V. Ideal for battery power supply and stable reference voltage applications due to minimal power consumption. This manual offers comprehensive technical documentation, detailing electrical characteristics (line/load regulation, ripple rejection), absolute maximum ratings, physical package options (TO-92, TO-243), and application circuits. It is essential reading for engineers designing reliable, efficiency-focused electronic systems needing stable voltage regulation.

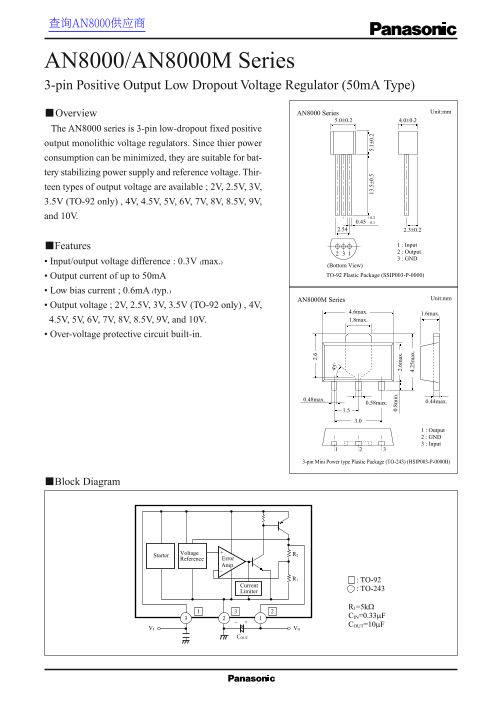

Page 1 Text Content
查询AN8000供应商
AN8000/AN8000M Series 3-pin Positive Output Low Dropout Voltage Regulator (50m A Type)
Unit:mm AN8000 Series
■ Overview
The AN8000 series is 3-pin low-dropout fixed positive output monolithic voltage regulators. Since thier power consumption can be minimized, they are suitable for bat- tery stabilizing power supply and reference voltage. Thir- teen types of output voltage are available ; 2V, 2.5V, 3V, 3.5V (TO-92 only) , 4V, 4.5V, 5V, 6V, 7V, 8V, 8.5V, 9V, and 10V. 0.2
■ Features 1 : Input 2 : Output 3 : GND
• Input/output voltage difference : 0.3V (max.)
(Bottom View) • Output current of up to 50m A TO-92 Plastic Package (SSIP003-P-0000)
• Low bias current ; 0.6m A (typ.)
Unit:mm AN8000M Series
• Output voltage ; 2V, 2.5V, 3V, 3.5V (TO-92 only) , 4V,
4.6max. 1.6max. 2. 4.5V, 5V, 6V, 7V, 8V, 8.5V, 9V, and 10V. 1.8max.
• Over-voltage protective circuit built-in.
0. 8m in 0.48max. 2. 6m ax 0.44max.
0.58max. 1.5
4. ax 3.0
1 : Output 2 : GND 3 : Input
3-pin Mini Power type Plastic Package (TO-243) (HSIP003-P-0000B)
■ Block Diagram
Voltage R2
Starter
Reference Error Amp.
R1 : TO-92
Current
: TO-243
Limiter
R1=5kΩ CIN=0.33µF COUT=10µFVI
Page Summary Contents For Panasonic AN8000 AN8000M Series Data Manual/SpecificationsSheet
Manual Details
| Brand | Panasonic |
|---|---|
| Pages | 7 |
| File Size | 72.23 KB |
| Published | June 21, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum power dissipation for the AN8000 series?
The absolute maximum rating lists the power dissipation P at 650 mW.
How do I select the appropriate capacitor type for output stability?
At low temperatures, it is recommended to use capacitors with low internal impedance, such as a tantalum capacitor.
What current limits are specified for load regulation testing?
Load regulation (RL) testing specifies an input current range of 1 to 50mA.
Can I use the AN8000/AN8000M series on long output power lines?
Yes, if the power line is long, a capacitor of 10μF should be used. The capacitor must be attached as close to the IC as possible.
