The AN8026 is a self-excited RCC pseudo-resonance type AC-DC switching power supply control IC. Operating from 8.6V to 34V, it features totem pole output for direct MOSFET driving, pulse-by-pulse overcurrent protection, undervoltage lockout, overvoltage protection, and VF control. The 9-pin SIP package offers design flexibility with separately configurable maximum on-period and minimum off-period via external components. Pre-start current is only 80µA typical. Target users are power supply designers for televisions, facsimiles, printers, scanners, and video equipment requiring compact, efficient AC/DC conversion with comprehensive protection features.

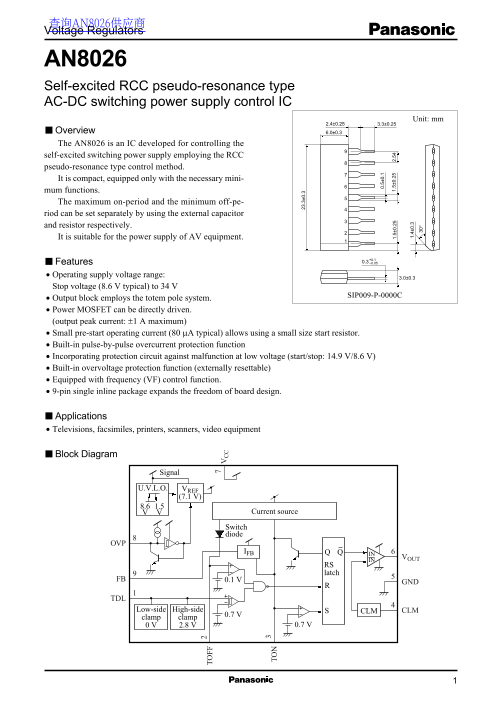

Page 1 Text Content
查询AN8026供应商 Voltage Regulators
AN8026 Self-excited RCC pseudo-resonance type AC-DC switching power supply control IC
Unit: mm
Overview 6.0±0.3 The AN8026 is an IC developed for controlling the self-excited switching power supply employing the RCC pseudo-resonance type control method. It is compact, equipped only with the necessary mini- mum functions. The maximum on-period and the minimum off-pe- FF riod can be set separately by using the external capacitor and resistor respectively. It is suitable for the power supply of AV equipment.
Features 0.3+0.1 –0.05
Operating supply voltage range:
Stop voltage (8.6 V typical) to 34 V
SIP009-P-0000C
Output block employs the totem pole system.
Power MOSFET can be directly driven. (output peak current: ±1 A maximum) Small pre-start operating current (80 µA typical) allows using a small size start resistor. Built-in pulse-by-pulse overcurrent protection function Incorporating protection circuit against malfunction at low voltage (start/stop: 14.9 V/8.6 V) Built-in overvoltage protection function (externally resettable) Equipped with frequency (VF) control function. 0. 5± 0. 9-pin single inline package expands the freedom of board design. 1. 5± 0.
Applications Televisions, facsimiles, printers, scanners, video equipment
Block Diagram
Signal
U.V.L.O. VREF
Current source
Switch diode
QIFB IN
RS latch
FB 0.1 V
TDL Low-side High-side CLM CLM
clamp clamp
Page Summary Contents For Panasonic AN8026 Data Manual
Manual Details
| Brand | Panasonic |
|---|---|
| Pages | 12 |
| File Size | 129.64 KB |
| Published | June 16, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the AN8026 used for?
It's an IC for controlling self-excited RCC pseudo-resonance AC-DC switching power supplies, suitable for AV equipment.
What is the maximum supply voltage rating?
The absolute maximum supply voltage (V_CC) is 35 V.
How is the minimum off-period set?
It's set by connecting a capacitor and resistor to the TOFF pin (pin 2).
What is the peak output current?
The output peak current is -1 A maximum.
