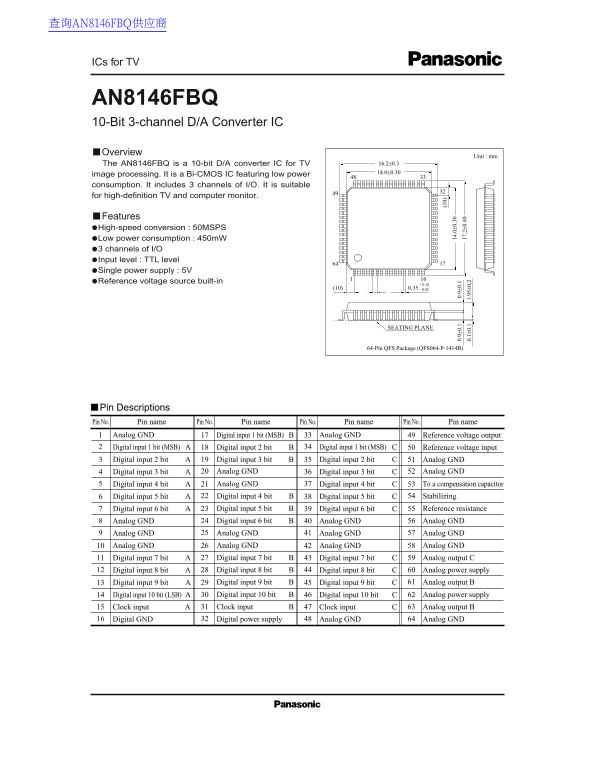

AN8146FBQ 10-Bit 3-channel D/A Converter IC Overview
Unit : mm
The AN8146FBQ is a 10-bit D/A converter IC for TV 16.2±0.3 14.0±0.30
image processing. It is a Bi-CMOS IC featuring low power consumption. It includes 3 channels of I/O. It is suitable for high-definition TV and computer monitor.
Features High-speed conversion : 50MSPS Low power consumption : 450m W 3 channels of I/O Input level : TTL level Single power supply : 5V Reference voltage source built-in
SEATING PLANE
64-Pin QFS Package (QFS064-P-1414B)
■ Pin Descriptions Pin No. Pin name Pin name Pin No. Pin No. Pin name Pin name Pin No. Analog GND Digital input 1 bit (MSB) Analog GND Reference voltage output
Digital input 1 bit (MSB) Digital input 2 bit Digital input 1 bit (MSB) Reference voltage input
Digital input 2 bit Digital input 3 bit 19 Digital input 2 bit Analog GND51 0. 9± 0. 0. 9± 0.
Digital input 3 bit Analog GND Digital input 3 bit Analog GND52 Digital input 4 bit Analog GND Digital input 4 bit To a compensation capacitor Digital input 5 bit Digital input 4 bit Digital input 5 bit Stabilizing Digital input 6 bit Digital input 5 bit Digital input 6 bit Reference resistance Analog GND8 Digital input 6 bit Analog GND40 Analog GND Analog GND Analog GND Analog GND Analog GND Analog GND Analog GND Analog GND Analog GND Digital input 7 bit Digital input 7 bit Digital input 7 bit Analog output C Digital input 8 bit Digital input 8 bit 28 Digital input 8 bit Analog power supply60 Digital input 9 bit Digital input 9 bit Digital input 9 bit Analog output B Digital input 10 bit (LSB) Digital input 10 bit Digital input 10 bit Analog power supply Clock input A15 Clock input Clock input C47 Analog output B Digital GND Digital power supply32 Analog GND48 Analog GND64
