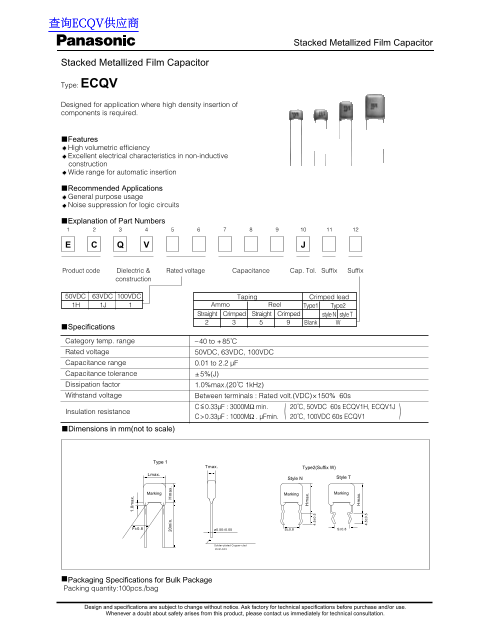

Page 1 Text Content
查询ECQV供应商
Stacked Metallized Film Capacitor
Stacked Metallized Film Capacitor
Type: ECQV
Designed for application where high density insertion of components is required.
Features High volumetric efficiency Excellent electrical characteristics in non-inductive construction
in x.
Wide range for automatic insertion
Recommended Applications General purpose usage Noise suppression for logic circuits
Explanation of Part Numbers
Product code Dielectric & Rated voltage Capacitance Cap. Tol. Suffix Suffix
construction
50VDC 63VDC 100VDC Taping Crimped lead
1H 1J x. Ammo Reel Type1 Type2
.5 ±0 .5 Straight Crimped Straight Crimped style N style T
Blank
Specifications
Category temp. range –40 to +85˚C Rated voltage 50VDC, 63VDC, 100VDC
Capacitance range 0.01 to 2.2 µF
Capacitance tolerance ±5%(J) Dissipation factor 1.0%max.(20˚C 1k Hz) Withstand voltage Between terminals : Rated volt.(VDC)✕ 150% 60s
C<=0.33µF : 3000MΩ min. 20˚C, 50VDC 60s ECQV1H, ECQV1J
Insulation resistance
C>0.33µF : 1000MΩ . µFmin. 20˚C, 100VDC 60s ECQV1(
Dimensions in mm(not to scale)
Type 1
Tmax. Type2(Suffix W)
Lmax.
Style N Style T
Marking Marking Marking
Solder-plated Copper-clad steel-wire
Packaging Specifications for Bulk Package Packing quantity:100pcs./bag
Design and specifi cations are subject to change without notice. Ask factory for technical specifi cations before purchase and/or use.
Whenever a doubt about safety arises from this product, please contact us immediately for technical consultation.
