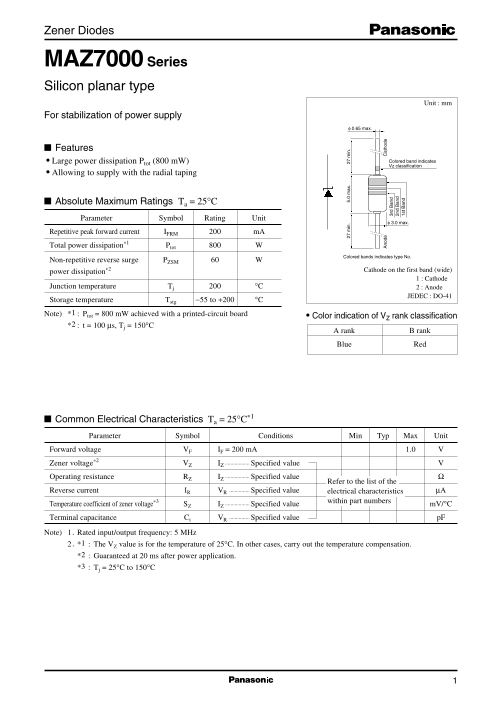

Page 1 Text Content
Zener Diodes
MAZ7000 Series Silicon planar type
Unit : mm
For stabilization of power supply
φ 0.65 max.
Features
Large power dissipation Ptot (800 m W) Colored band indicates Vz classification
Allowing to supply with the radial taping
Absolute Maximum Ratings Ta = 25°C Parameter Symbol Rating Unit
φ 3.0 max.
Repetitive peak forward current IFRM m A Total power dissipation*1 Ptot
Colored bands indicates type No.
Non-repetitive reverse surge PZSM
Cathode on the first band (wide)
power dissipation*2
1 : Cathode
Junction temperature Tj °C 2 : Anode
JEDEC : DO-41
Storage temperature Tstg −55 to +200 °C Note) *1 Ptot = 800 m W achieved with a printed-circuit board • Color indication of VZ rank classification *2 t = 100 µs, Tj = 150°C
A rank B rank Blue Red
in 5. ax in
no de at ho de
3r an 2n an 1s t B an
Common Electrical Characteristics Ta = 25°C*1 Parameter Symbol Conditions Min Typ Max Unit Forward voltage VF IF = 200 m A 1.0
Zener voltage*2 VZ IZ ·················· Specified value
Operating resistance RZ IZ ·················· Specified value
Refer to the list of the
Reverse current IR VR ··············· Specified value electrical characteristics µA
within part numbers
Temperature coefficient of zener voltage*3 SZ IZ ·················· Specified value m V/°C
Terminal capacitance Ct VR ··············· Specified value p F
Note) 1．Rated input/output frequency: 5 MHz 2．*1 The VZ value is for the temperature of 25°C. In other cases, carry out the temperature compensation.
*2 Guaranteed at 20 ms after power application. *3 Tj = 25°C to 150°C
