Panasonic 2SC0829 Data Sheet
Summary
This high-performance NPN Silicon transistor is engineered for demanding RF applications, excelling in amplification, mixing, and IF stages within FM/AM radio systems. The comprehensive manual provides expert engineers and RF designers with essential technical data, including absolute maximum ratings, detailed electrical characteristics, and crucial parameters like transition frequency ($f_T$). Use this resource to ensure optimal circuit design and reliable performance in advanced radio electronics.

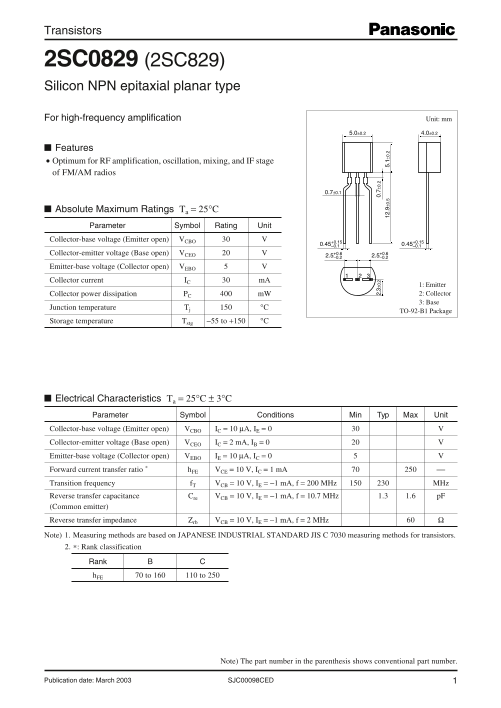

Page 1 Text Content
Transistors
2SC0829 (2SC829) Silicon NPN epitaxial planar type For high-frequency amplification Unit: mm
Features Optimum for RF amplification, oscillation, mixing, and IF stage of FM/AM radios
Absolute Maximum Ratings Ta = 25°C Parameter Symbol Rating Unit Collector-base voltage (Emitter open) VCBO
Collector-emitter voltage (Base open) VCEO +0.6
Emitter-base voltage (Collector open) VEBO Collector current IC m A
1: Emitter Collector power dissipation PC m W 2: Collector 3: Base
Junction temperature Tj °C
TO-92-B1 Package
Storage temperature Tstg −55 to +150 °C
Electrical Characteristics Ta = 25°C ± 3°C Parameter Symbol Conditions Min Typ Max Unit Collector-base voltage (Emitter open) VCBO IC = 10 µA, IE = 0 Collector-emitter voltage (Base open) VCEO IC = 2 m A, IB = 0 Emitter-base voltage (Collector open) VEBO IE = 10 µA, IC = 0 Forward current transfer ratio * h FE VCE = 10 V, IC = 1 m A Transition frequency f T VCB = 10 V, IE = −1 m A, f = 200 MHz MHz Reverse transfer capacitance Cre VCB = 10 V, IE = −1 m A, f = 10.7 MHz 1.3 1.6 p F (Common emitter) Reverse transfer impedance Zrb VCB = 10 V, IE = −1 m A, f = 2 MHz Note) 1. Measuring methods are based on JAPANESE INDUSTRIAL STANDARD JIS C 7030 measuring methods for transistors. 2. Rank classification
Rank h FE 70 to 160 110 to 250
Note) The part number in the parenthesis shows conventional part number.
SJC00098CED 1Publication date: March 2003
Page Summary Contents For Panasonic 2SC0829 Data Sheet
Manual Details
| Brand | Panasonic |
|---|---|
| Pages | 4 |
| File Size | 111.88 KB |
| Published | June 20, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What specific industries require consulting your staff before use?
Special applications, such as those used for airplanes, aerospace, or life support systems, require prior consultation with our sales staff.
What safety design measures do you recommend against product failure?
To prevent physical injury, fire, or social damage, implementing redundant design and measures to arrest the spread of fire are recommended.
When designing equipment, what must be ensured regarding specifications?
You must comply with the guaranteed values, especially maximum ratings and operating voltage range. Always request the most up-to-date Product Standards before finalizing design or purchasing.
What is the maximum thermal dissipation capacity for this transistor?
The ambient temperature can reach 150°C, and the specified power dissipation (P) limit remains at 400 mW.
Does using this product guarantee immunity against third-party intellectual property infringement?
No. The technical information provided neither warrants non-infringement of intellectual property right nor grants any license.
