Panasonic MN63121 Data Sheet
Summary
Discover the MN63121, a high-reliability, 1K-bit EEPROM optimized for low-power applications. This serial I/O device supports voltage operation from 1.8V to 5.5V and features advanced built-in error correction and an automatic self-timer, ensuring data integrity over long periods. The accompanying technical documentation provides comprehensive details on pin assignments, electrical parameters, operational modes (read/write), and integration guidelines. It is the ideal component for embedded systems requiring secure, dependable memory storage in fields such as keyless entry, cordless telecommunications, and specialized terminal devices.
Page 1 Text Content
查询MN63121供应商 EEPROMs

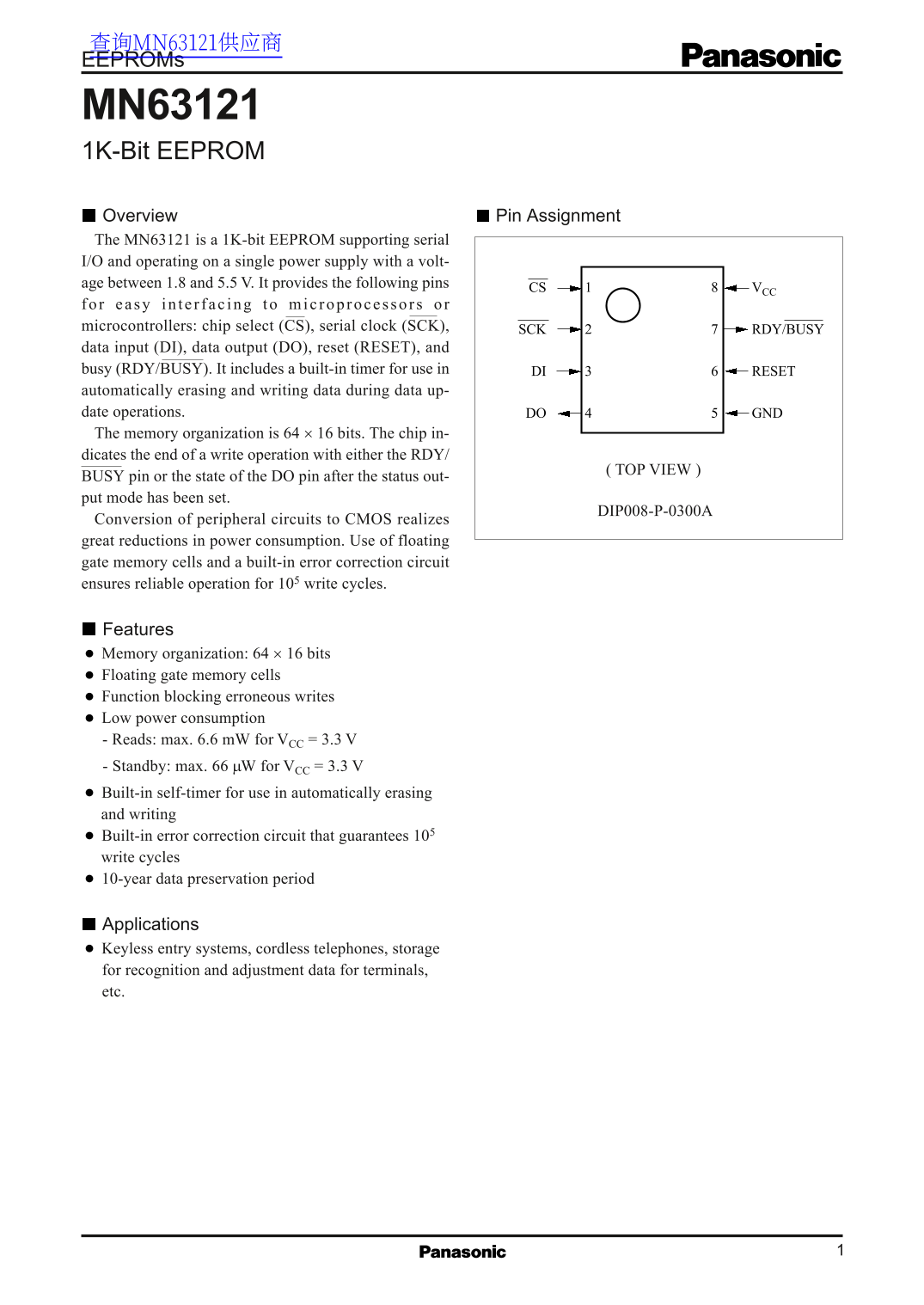

MN63121 1K-Bit EEPROM Overview Pin Assignment The MN63121 is a 1K-bit EEPROM supporting serial I/O and operating on a single power supply with a volt- age between 1.8 and 5.5 V. It provides the following pins
CS VCC
fo sy ac ing mic rop roces so microcontrollers: chip select (CS), serial clock (SCK), SCK RDY/BUSY data input (DI), data output (DO), reset (RESET), and busy (RDY/BUSY). It includes a built-in timer for use in DI RESET automatically erasing and writing data during data up- date operations. DO GND The memory organization is 64 × 16 bits. The chip in- dicates the end of a write operation with either the RDY/
( TOP VIEW )
BUSY pin or the state of the DO pin after the status out- put mode has been set.
DIP008-P-0300A
Conversion of peripheral circuits to CMOS realizes great reductions in power consumption. Use of floating gate memory cells and a built-in error correction circuit ensures reliable operation for 105 write cycles.
Features Memory organization: 64 × 16 bits Floating gate memory cells Function blocking erroneous writes Low power consumption - Reads: max. 6.6 m W for VCC = 3.3 V - Standby: max. 66 µW for VCC = 3.3 V Built-in self-timer for use in automatically erasing and writing Built-in error correction circuit that guarantees 105 write cycles 10-year data preservation period
Applications Keyless entry systems, cordless telephones, storage for recognition and adjustment data for terminals, etc.
