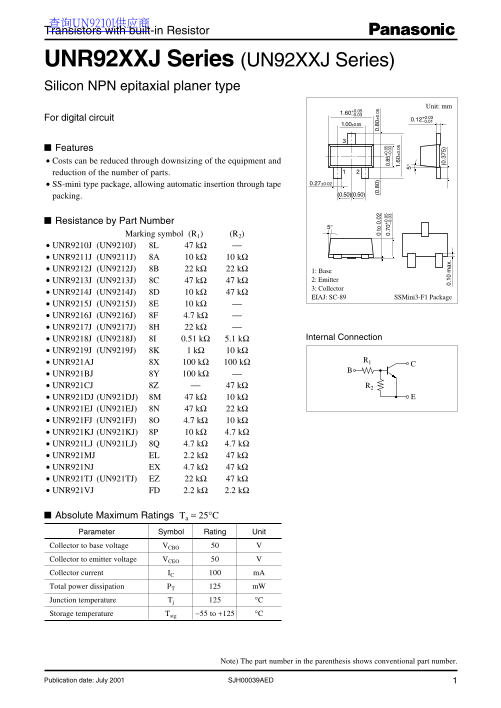

Page 1 Text Content
查询UN9210J供应商 Transistors with built-in Resistor
UNR92XXJ Series (UN92XXJ Series) Silicon NPN epitaxial planer type
Unit: mm
For digital circuit 0.12+0.03
Features Costs can be reduced through downsizing of the equipment and reduction of the number of parts.
SS-mini type package, allowing automatic insertion through tape 0.27±0.02
packing. (0.50)(0.50)
Resistance by Part Number
Marking symbol (R1) (R2)
UNR9210J (UN9210J) 8L 47 kΩ UNR9211J (UN9211J) 8A 10 kΩ 10 kΩ UNR9212J (UN9212J) 8B 22 kΩ 22 kΩ 1: Base
UNR9213J (UN9213J) 8C 47 kΩ 47 kΩ 2: Emitter 3: Collector
UNR9214J (UN9214J) 8D 10 kΩ 47 kΩ
EIAJ: SC-89 SSMini3-F1 Package
UNR9215J (UN9215J) 8E 10 kΩ UNR9216J (UN9216J) 8F 4.7 kΩ UNR9217J (UN9217J) 8H 22 kΩ
UNR9218J (UN9218J) 8I 0.51 kΩ 5.1 kΩ Internal Connection
UNR9219J (UN9219J) 8K 1 kΩ 10 kΩ
UNR921AJ 8X 100 kΩ 100 kΩ UNR921BJ 8Y 100 kΩ
to .0 (0 .8 0) 0. 0.
UNR921CJ 8Z 47 kΩ R2 0. +0 .0 0. –0 .0 0. –0
UNR921DJ (UN921DJ) 8M 47 kΩ 10 kΩ 1. 0.
UNR921EJ (UN921EJ) 8N 47 kΩ 22 kΩ 5°
UNR921FJ (UN921FJ) 8O 4.7 kΩ 10 kΩ UNR921KJ (UN921KJ) 8P 10 kΩ 4.7 kΩ
UNR921LJ (UN921LJ) 8Q 4.7 kΩ 4.7 kΩ (0 .3
0. ax
UNR921MJ EL 2.2 kΩ 47 kΩ UNR921NJ EX 4.7 kΩ 47 kΩ UNR921TJ (UN921TJ) EZ 22 kΩ 47 kΩ UNR921VJ FD 2.2 kΩ 2.2 kΩ
Absolute Maximum Ratings Ta = 25°C Parameter Symbol Rating Unit Collector to base voltage VCBO Collector to emitter voltage VCEO Collector current IC m A Total power dissipation PT m W Junction temperature Tj °C Storage temperature Tstg −55 to +125 °C
Note) The part number in the parenthesis shows conventional part number.
SJH00039AED 1Publication date: July 2001
