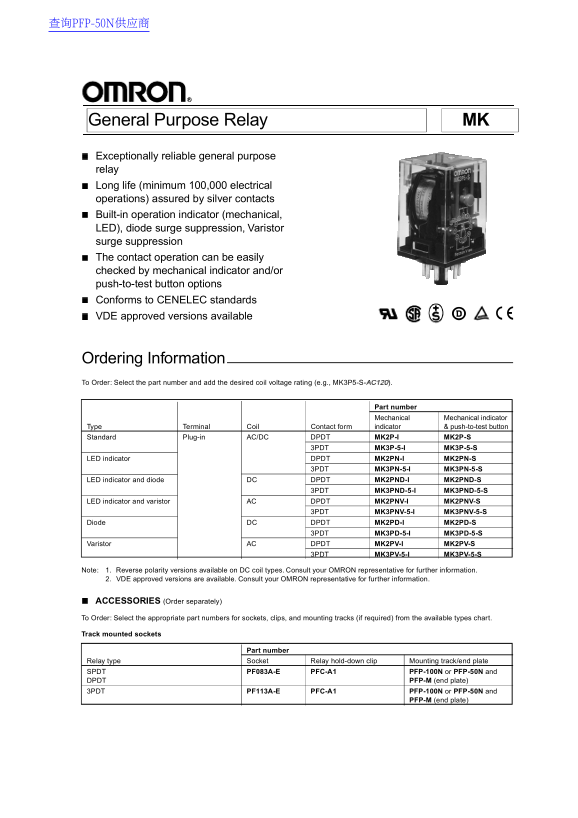

OMRON MK DATA SHEET

查询PFP-50N供应商

General Purpose Relay MK Exceptionally reliable general purpose relay Long life (minimum 100,000 electrical operations) assured by silver contacts Built-in operation indicator (mechanical, LED), diode surge suppression, Varistor surge suppression The contact operation can be easily checked by mechanical indicator and/or push-to-test button options Conforms to CENELEC standards VDE approved versions available

Ordering Information To Order: Select the part number and add the desired coil voltage rating (e.g., MK3P5-S-

Part number Mechanical Mechanical indicator

Type Terminal Coil Contact form indicator & push-to-test button Standard Plug-in AC/DC DPDT MK2P-I MK2P-S

3PDT MK3P-5-I MK3P-5-S

LED indicator DPDT MK2PN-I MK2PN-S

3PDT MK3PN-5-I MK3PN-5-S

LED indicator and diode DC DPDT MK2PND-I MK2PND-S

3PDT MK3PND-5-I MK3PND-5-S

LED indicator and varistor AC DPDT MK2PNV-I MK2PNV-S

3PDT MK3PNV-5-I MK3PNV-5-S

Diode DC DPDT MK2PD-I MK2PD-S

3PDT MK3PD-5-I MK3PD-5-S

Varistor AC DPDT MK2PV-I MK2PV-S

3PDT MK3PV-5-I MK3PV-5-S

Note: 1. Reverse polarity versions available on DC coil types. Consult your OMRON representative for further information. 2. VDE approved versions are available. Consult your OMRON representative for further information.

ACCESSORIES (Order separately)

To Order: Select the appropriate part numbers for sockets, clips, and mounting tracks (if required) from the available types chart.

Track mounted sockets

Part number

Relay type Socket Relay hold-down clip Mounting track/end plate SPDT PF083A-E PFC-A1 PFP-100N or PFP-50N and DPDT PFP-M (end plate) 3PDT PF113A-E PFC-A1 PFP-100N or PFP-50N and

PFP-M (end plate)
