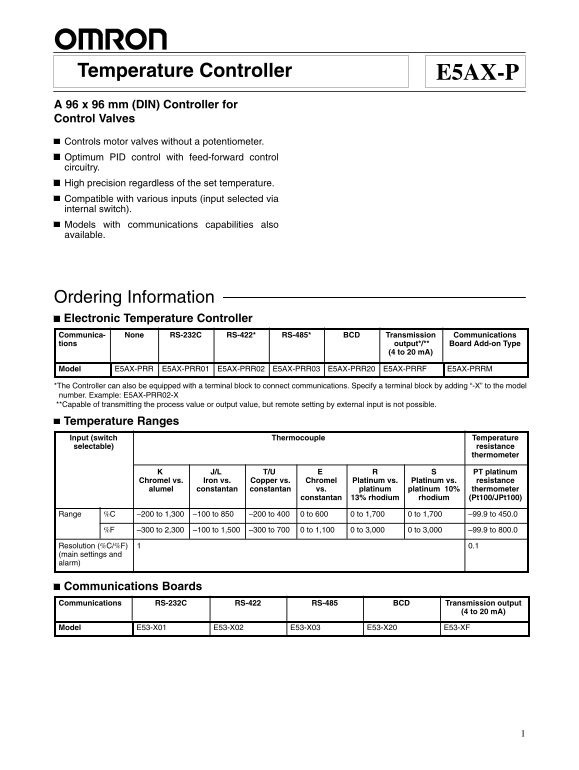

OMRON E5AX-P Data Sheet

Temperature Controller E5AX-P A 96 x 96 mm (DIN) Controller for Control Valves Controls motor valves without a potentiometer. Optimum PID control with feed-forward control circuitry. High precision regardless of the set temperature. Compatible with various inputs (input selected via internal switch). Models with communications capabilities also available.

Ordering Information Electronic Temperature Controller Communica- None RS-232C RS-422* RS-485* BCD Transmission Communications tions output*/** Board Add-on Type

(4 to 20 m A)

Model E5AX-PRR E5AX-PRR01 E5AX-PRR02 E5AX-PRR03 E5AX-PRR20 E5AX-PRRF E5AX-PRRM

*The Controller can also be equipped with a terminal block to connect communications. Specify a terminal block by adding “-X” to the model number. Example: E5AX-PRR02-X **Capable of transmitting the process value or output value, but remote setting by external input is not possible.

Temperature Ranges Input (switch Thermocouple Temperature selectable) resistance

thermometer

J/L T/U PT platinum

Chromel vs. Iron vs. Copper vs. Chromel Platinum vs. Platinum vs. resistance alumel constantan constantan vs. platinum platinum 10% thermometer

constantan 13% rhodium rhodium (Pt100/JPt100)

Range %C –200 to 1,300 –100 to 850 –200 to 400 0 to 600 0 to 1,700 0 to 1,700 –99.9 to 450.0

%F –300 to 2,300 –100 to 1,500 –300 to 700 0 to 1,100 0 to 3,000 0 to 3,000 –99.9 to 800.0

Resolution (%C/%F) 0.1 (main settings and alarm)

Communications Boards Communications RS-232C RS-422 RS-485 BCD Transmission output

(4 to 20 m A)

Model E53-X01 E53-X02 E53-X03 E53-X20 E53-XF
